934005 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Electrical Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

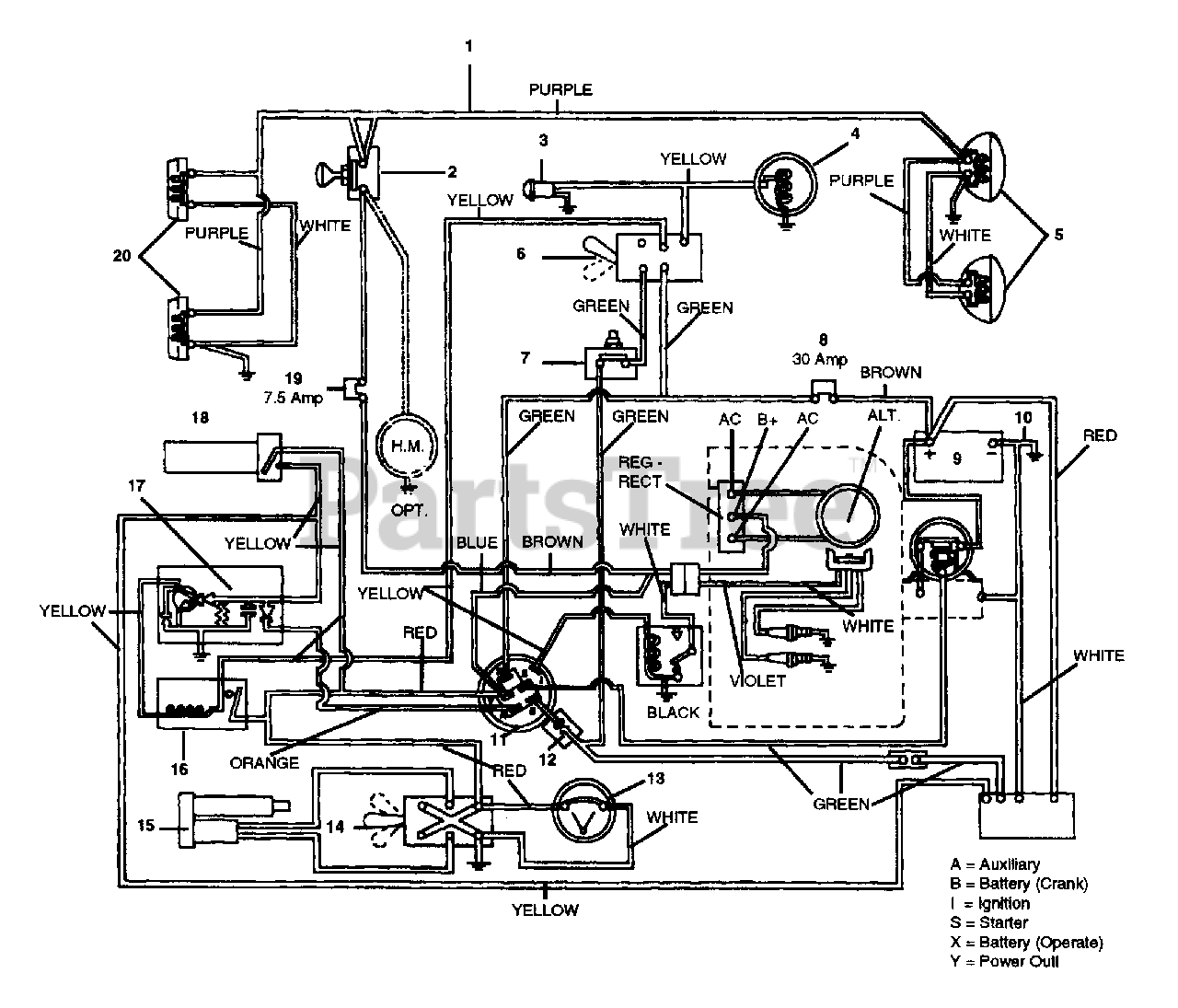

Electrical Parts Diagram

  • Title

1

Ariens 03453400

WIRING HARNESS

$

$

Not available

2

Ariens 03437400

LIGHT SWITCH ASSEMBLY
(Superseded to 51513800)

$

$

Not available

2

Ariens 03415600

LIGHT SWITCH
(Superseded to 03490700)

$

$

Not available

3

Ariens 03198300

PTO INDICATOR LIGHT
(Superseded to 53108800)

$

$

Not available

3

Ariens 03004200

LENS

$15.99

$

Usually ships in 4-12 days

0

3

Ariens 03004300

LAMP

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 03004400

LAMP SOCKET

$

$

Not available

3

Ariens 03027900

SPEED NUT

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 03450500

ELECTRIC CLUTCH

$362.99

$

Usually ships in 4-12 days

0

5

Ariens 03420500

HEADLIGHT BULB, 1156

$30.99

$

In Stock, only 1 left!

0

6

Ariens 03454900

SWITCH ASSEMBLY

$56.99

$

In Stock, only 1 left!

0

7

Ariens 03110700

SAFETY SWITCH

$39.99

$

Usually ships in 4-12 days

0

8

30 Amp Fuse

$

$

Not available

9

Ariens 03055700

BATTERY
(Superseded to 53123300)

$

$

Not available

10

Ariens 03013600

GROUND CABLE .25X6.50X.31

$

$

Not available

11

Ariens 03064300

SWITCH ASSEMBLY
(Superseded to 53123700)

$59.99

$

Usually ships in 4-12 days

0

12

Ariens 03042700

DIODE ASSEMBLY

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 03455100

VOLTMETER
(Superseded to 03086800)

$

$

Not available

14

Ariens 03437900

SWITCH ASSEMBLY

$71.99

$

Usually ships in 4-12 days

0

15

Ariens 03450300

ACTUATOR

$

$

Not available

16

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

17

Ariens 03042900

TIME DELAY MODULE
(Superseded to 53125500)

$244.99

$

Usually ships in 4-12 days

0

18

Ariens 03171600

SWITCH SEAT

$

$

Not available

19

7.5 Amp Fuse

$

$

Not available

20

#168 Wedgge Base TailLight Bulb

$

$

Not available
