934003 - Ariens High Sierra Garden Tractor, 16hp Kohler, Gear (SN: 000101 & Above) Rear Axle Drive Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Gear

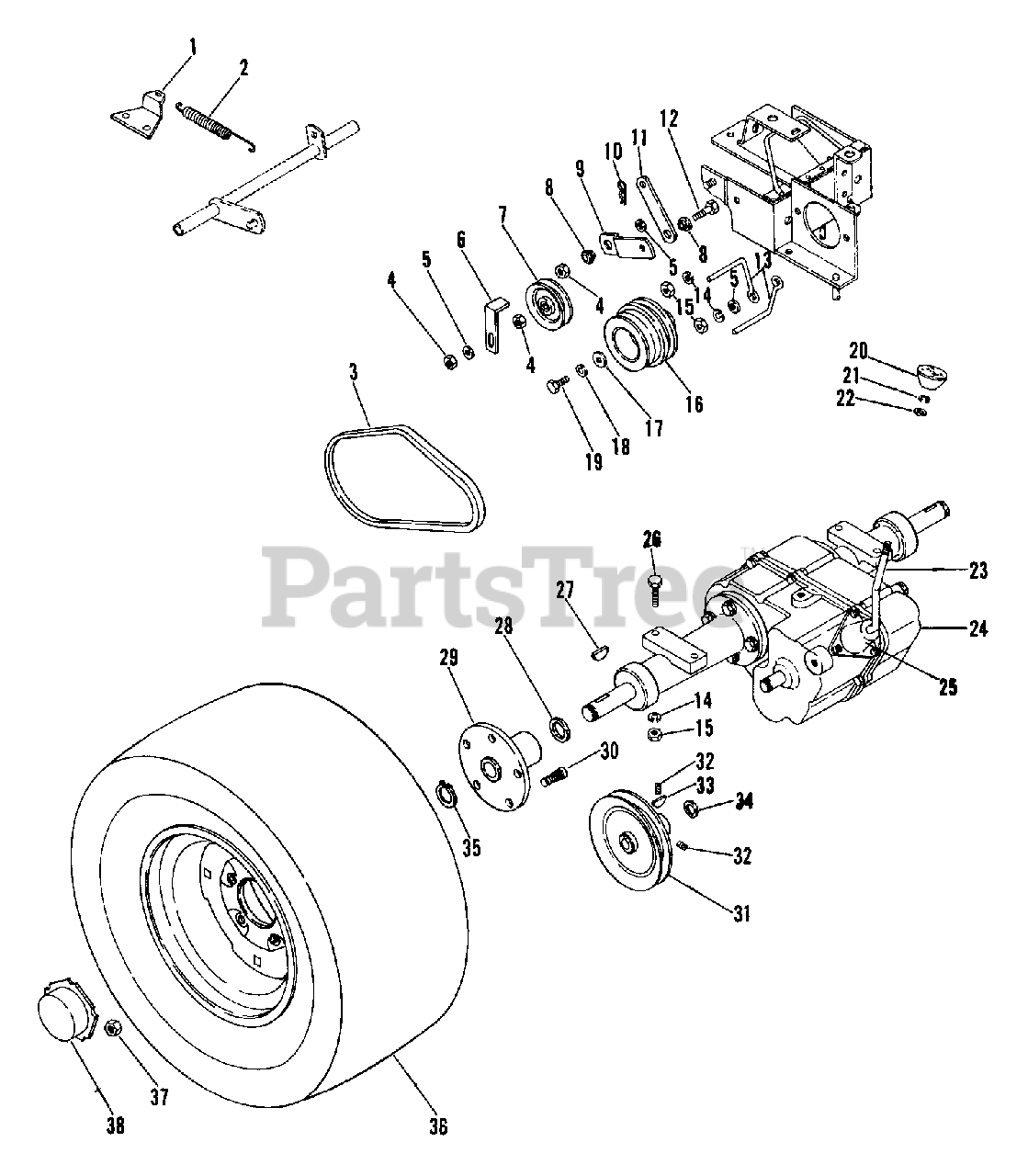

Rear Axle Drive Parts Diagram

  • Title

1

Ariens 03408700

SPRING MOUNT

$

$

Not available

2

Ariens 08318300

SG-TENS .091X.56X6.12 WLD 40

$30.99

$

In Stock, only 1 left!

0

3

Ariens 07213400

V-BELT, 5L-WRAPPED

$37.99

$

In Stock, only 1 left!

0

4

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03411000

BELT FINGER

$

$

Not available

7

Ariens 07310900

IDLER-V 3.06 X .38

$

$

Not available

8

Ariens 00206900

SHOULDER SPACER

$

$

Not available

9

Ariens 03411100

IDLER ARM

$

$

Not available

10

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 03411200

IDLER LINK

$

$

Not available

12

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 03410600

BELT FINGER

$

$

Not available

14

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 2 left!

0

15

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03406200

SHEAVE

$

$

Not available

17

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

18

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07512300

SHIFT BALL

$

$

Not available

21

Ariens 06301600

WSHR-LK-INT .375X.035 PL

$

$

Not available

22

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

23

Ariens 03409600

SHIFT LEVER

$

$

Not available

24

Ariens 03438500

TRANSAXLE ASSEMBLY

$

$

Not available

25

Ariens 07004700

SCR-CAP FLGHH .25-20X.75 GR 8

$

$

Not available

26

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

27

Ariens 06604400

KEY-WDRF .25X1.125X.484ANSI809

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 03415700

WHEEL HUB

$

$

Not available

29

Ariens 03438600

WHEEL HUB

$176.99

$

Usually ships in 4-12 days

0

30

Ariens 07008300

BLT-LUG SERNKHDND .44-20X1.188

$

$

Not available

31

Ariens 07312100

PLY-V 6.00 X .75 W/KEY CLARK

$

$

Not available

32

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

33

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

34

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

35

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

36

Ariens 07115400

T/WHL ASSY 10.50X23

$

$

Not available

36

Ariens 07110600

WHL

$

$

Not available

36

Ariens 07111900

TIRE

$

$

Not available

36

Ariens 07115700

T/WHL ASSY

$

$

Not available

36

Ariens 07111500

WHL 12X8.50

$

$

Not available

36

Ariens 07112000

TIRE

$

$

Not available

36

Ariens 07122600

TIRE 23X10.5-12

$

$

Not available

36

Ariens 07122700

T/WHL ASSY

$

$

Not available

37

Ariens 06511400

NUT-LUG .437-20 YWZC

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 07508800

REAR HUB CAP

$15.99

$

Usually ships in 4-12 days

0
