934003 - Ariens High Sierra Garden Tractor, 16hp Kohler, Gear (SN: 000101 & Above) Implement PTO Linkage Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Gear

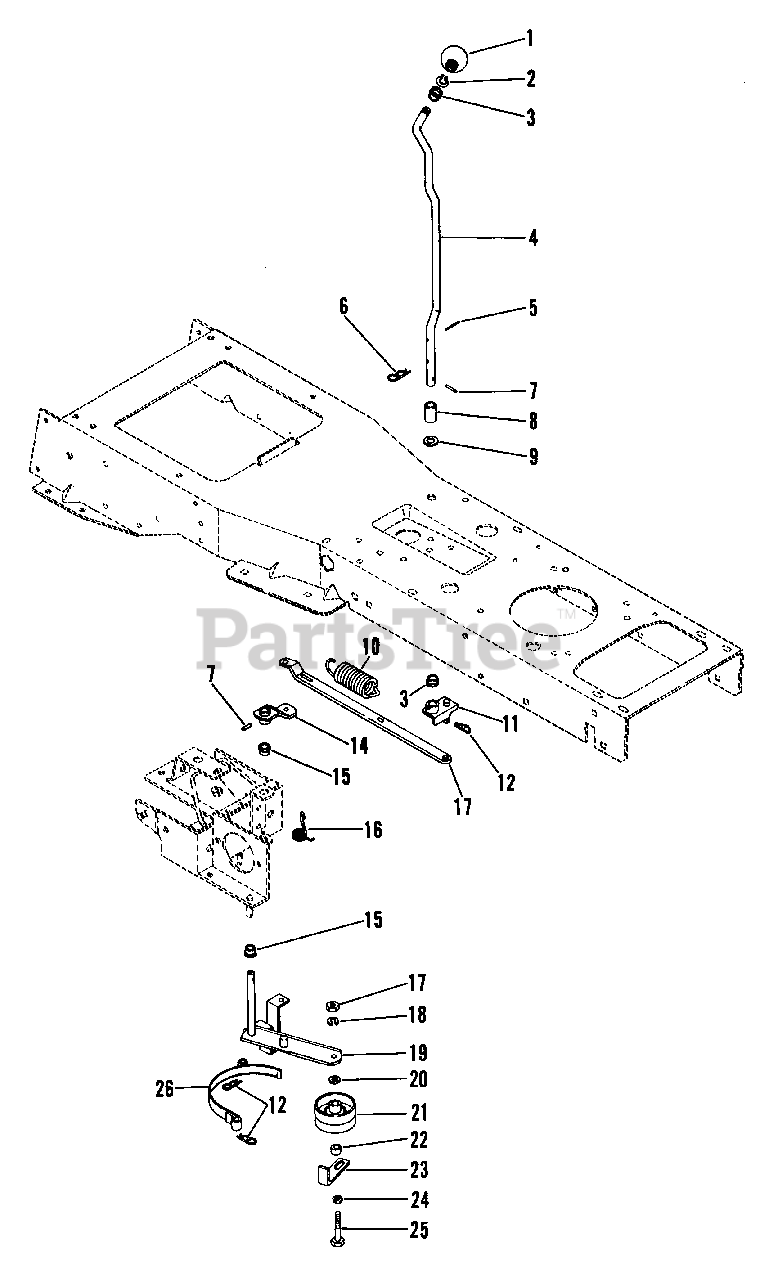

Implement PTO Linkage Parts Diagram

  • Title
1

Ariens 07512200

PTO BALL

$

$

Not available

2

Ariens 05709400

RG-RTNG-EXT .500X.050

$

$

Not available

3

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 19

0

4

Ariens 03432800

PTO HANDLE

$

$

Not available

5

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

6

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 05804600

PIN-ROLL .188X.75

$

$

Not available

8

Ariens 01127700

SPACER .75 X .50 X 1.25
(Superseded to 02714800)

$

$

Not available

9

Ariens 06414200

WSHR-FL-STL .641X1.125X.188

$

$

Not available

10

Ariens 08319900

SG-TENS .188X1.5X4.75 WLD 105
(Superseded to 53400500)

$

$

Not available

11

Ariens 03411500

CLUTCH LEVER

$

$

Not available

12

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03411600

CLUTCH LINK PTO
(Superseded to 53400500)

$

$

Not available

14

Ariens 03410900

IDLER LINK

$

$

Not available

15

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

16

Ariens 08319800

SG-TORS .090X.62X.350

$

$

Not available

17

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

19

Ariens 03410800

IDLER ARM

$

$

Not available

20

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07314000

IDLER-FLAT 3.25 X .38 NWHAMSHR

$31.99

$

Usually ships in 4-12 days

0

22

Ariens 05507400

BSHG-SLV .437X.625X.500 SB

$

$

Not available

23

Ariens 03411000

BELT FINGER

$

$

Not available

24

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 05903500

BLT-HEX .38-16X2.50 PL GR2
(Superseded to 05958400)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 03433000

BELT RETAINER

$103.99

$

Usually ships in 4-12 days

0
