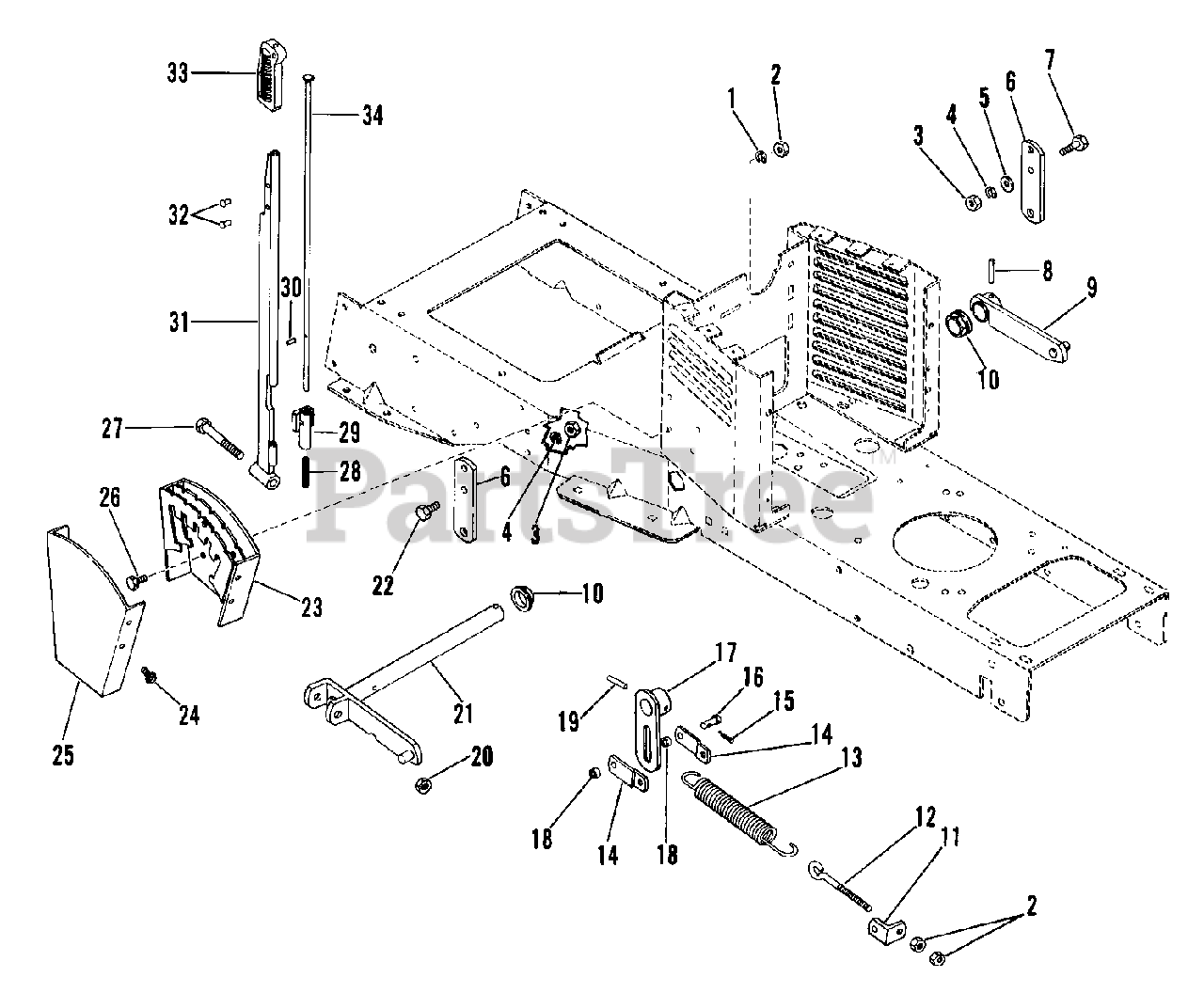

934003 - Ariens High Sierra Garden Tractor, 16hp Kohler, Gear (SN: 000101 & Above) Implement Lift Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Gear

Implement Lift Parts Diagram

  • Title

1

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

3

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

5

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03407100

REAR ATTACHMENT HANGER

$

$

Not available

7

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05807100

PIN-GRV .250X1.50 TP A

$

$

Not available

9

Ariens 03413900

LIFT ARM

$

$

Not available

9

Ariens 03425600

LIFT ARM

$

$

Not available

10

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 05513800

BSHG-FLG 1.000X1.25X.49X1.56HX

$

$

Not available

11

Ariens 03425900

SPRING ANCHOR
(Superseded to 03447300)

$

$

Not available

12

Ariens 03425800

EYE BOLT

$

$

Not available

13

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

14

Ariens 03426000

LINK

$

$

Not available

15

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

16

Ariens 03130200

CLEVIS PIN
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 03425700

COUNTER BALANCE ARM

$

$

Not available

18

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 05800400

PIN-ROLL .250X1.50

$

$

Not available

20

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

21

Ariens 03413800

LIFT PIVOT

$

$

Not available

21

Ariens 03425500

LIFT PIVOT

$

$

Not available

22

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03313700

SPRING SHANK

$

$

Not available

24

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 03424900

QUADRANT SHIELD

Note: (01)

$

$

Not available

25

Ariens 03437800

QUADRANT SHIELD

Note: (02)

$

$

Not available

26

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05905800

BLT-HEX .50-13X3.25 GR5
(Superseded to 05960000)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 08320100

SG-COMP .042X.36X2.00 WLD5.15

$

$

Not available

29

Ariens 03444600

QUADRANT CATCH

$

$

Not available

30

Ariens 05801000

PIN-ROLL .093X.50

$0.99

$

In Stock, Qty 10

0

31

Ariens 03414000

LIFT HANDLE

$

$

Not available

32

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

33

Ariens 07511500

GRIP

$

$

Not available

34

Ariens 03444500

CLEVIS PIN

$

$

Not available
