9334-0 - Generac 750 Watt Portable Generator Generator Parts Diagram

750 Watt Portable Generator

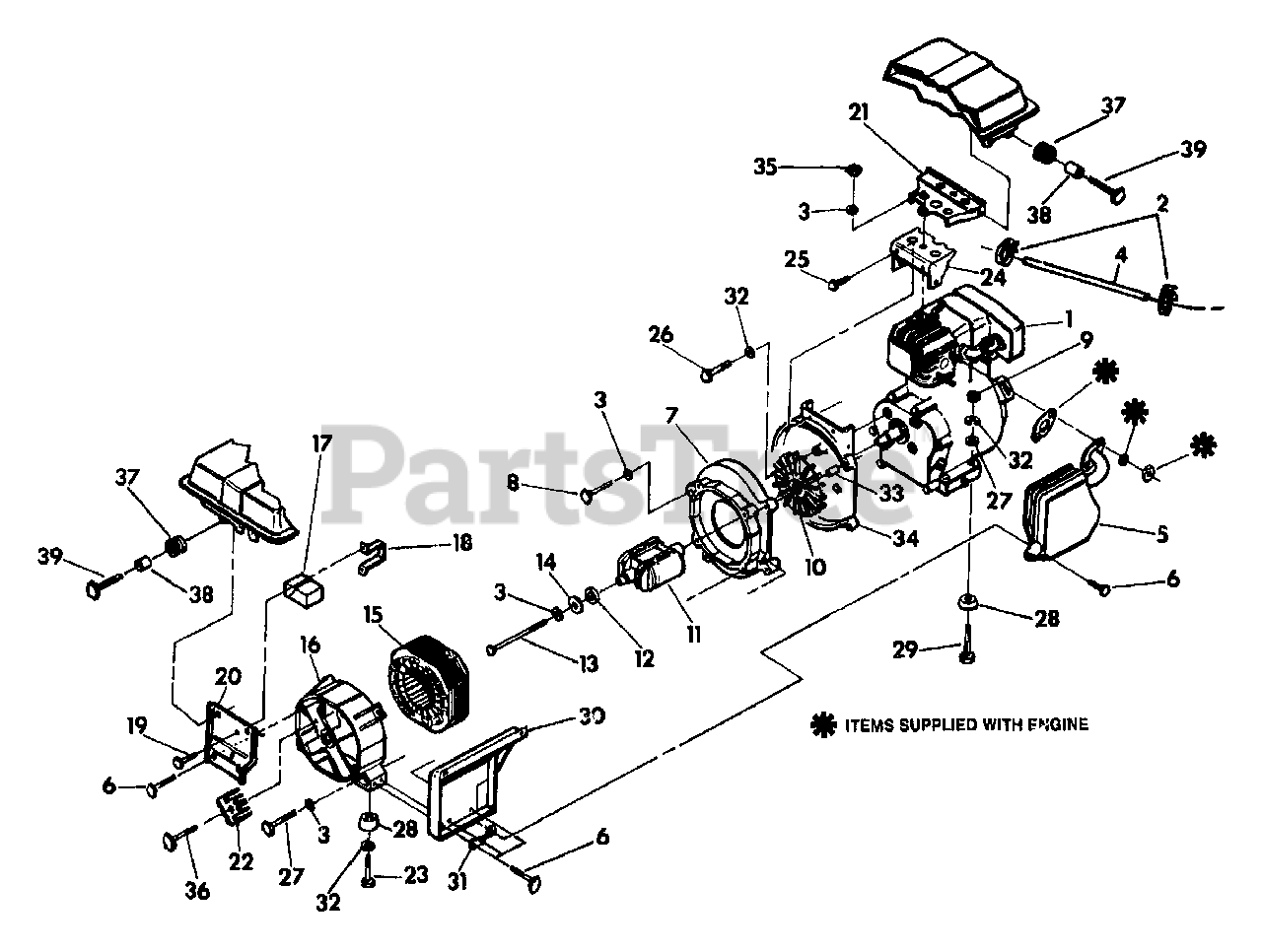

Generator Parts Diagram

  • Title

1

Briggs & Stratton 75904

ENGINE-KAWASAKI FA-76

$

$

Currently unavailable

2

Briggs & Stratton 66836

CLAMP, FUEL LINE

$

$

Currently unavailable

3

Briggs & Stratton 22097

WASHER, LOCK-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66866

HOSE, FUEL

$

$

Currently unavailable

5

Briggs & Stratton 65778

MUFFLER, EXHAUST-SPARK ARRESTER TYPE
(Superseded to 65778GS)

$379.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66886

SCREW, HEX HEAD MACHINE-M6-1.00 x 12MM

Note: (INCLUDES LOCK WASHER)

$

$

Currently unavailable

7

Briggs & Stratton 67105

ADAPTOR, COOLING FAN

$

$

Currently unavailable

8

Briggs & Stratton 51753

CAPSCREW, HEX HEAD-M6-1.00 x 40MM
(Superseded to 51753GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 52858

FLANGE NUT, HEX-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 64685

FAN, COOLING

$

$

Currently unavailable

11

Briggs & Stratton 65771

ROTOR

$

$

Currently unavailable

12

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65792

BOLT, ROTOR-M6-1.00 x 150MM

$

$

Currently unavailable

14

Briggs & Stratton 65793

WASHER, FLAT (SPECIAL)-M6

$

$

Currently unavailable

15

Briggs & Stratton 65794

STATOR

$

$

Currently unavailable

16

Briggs & Stratton 66373

CARRIER, REAR BEARING

$

$

Currently unavailable

17

Briggs & Stratton 66800

CAPACITOR, EXCITATION

$

$

Currently unavailable

18

Briggs & Stratton 66385

BRACKET, EXCITATION CAPACITOR SUPPORT

$

$

Currently unavailable

19

Briggs & Stratton 65768

SCREW (WITH LOCK WASHER)-M5-0.80 x 6MM

$

$

Currently unavailable

20

Briggs & Stratton 66383

BRACKET, GENERATOR END

$

$

Currently unavailable

21

Briggs & Stratton 65790

BRACKET, ENGINE END

$

$

Currently unavailable

22

Briggs & Stratton 65795

RECTIFIER, BATTERY CHARGE
(Superseded to 65795GS)

$

$

Not available

23

Briggs & Stratton 67488

CAPSCREW, PAN HEAD-M8-1.25 x 20MM
(Superseded to 67488GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 66867

DUCT, AIR

$

$

Currently unavailable

25

Briggs & Stratton 66849

SCREW (TAPTITE)-M5-0.80 x 15MM
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66889

SCREW-M8-1.25 x 20MM

$

$

Currently unavailable

27

Briggs & Stratton 66449G

BOLT, STATOR-M6-1.00 x 75MM

$

$

Currently unavailable

28

Briggs & Stratton 70409

MOUNT, VIBRATION

$

$

Not available

29

Briggs & Stratton 67489

SCREW-M8-1.25 x 30MM
(Superseded to 67489GS)

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66870

BOX, MUFFLER AIR

$

$

Currently unavailable

31

Briggs & Stratton 66869

BRACKET, MUFFLER SUPPORT

$

$

Currently unavailable

32

Briggs & Stratton 22129

WASHER, LOCK-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 67106

DOWEL, ADAPTOR CASTING

$

$

Currently unavailable

34

Briggs & Stratton 67118

CASTING, ADAPTOR

$

$

Not available

35

Briggs & Stratton 49813

NUT, HEX-M6-1.00
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 49815

SCREW (TAPTITE)-M5-0.80 x 20MM
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 81873

RUBBER GROMMET

$

$

Currently unavailable

38

Briggs & Stratton 81875

INSERT, RING-O.D. 7.9-7L

$

$

Currently unavailable

39

Briggs & Stratton 81876

SCREW, HEX HEAD

$

$

Currently unavailable
