9334-0 - Generac 750 Watt Portable Generator Cradle Parts Diagram

750 Watt Portable Generator

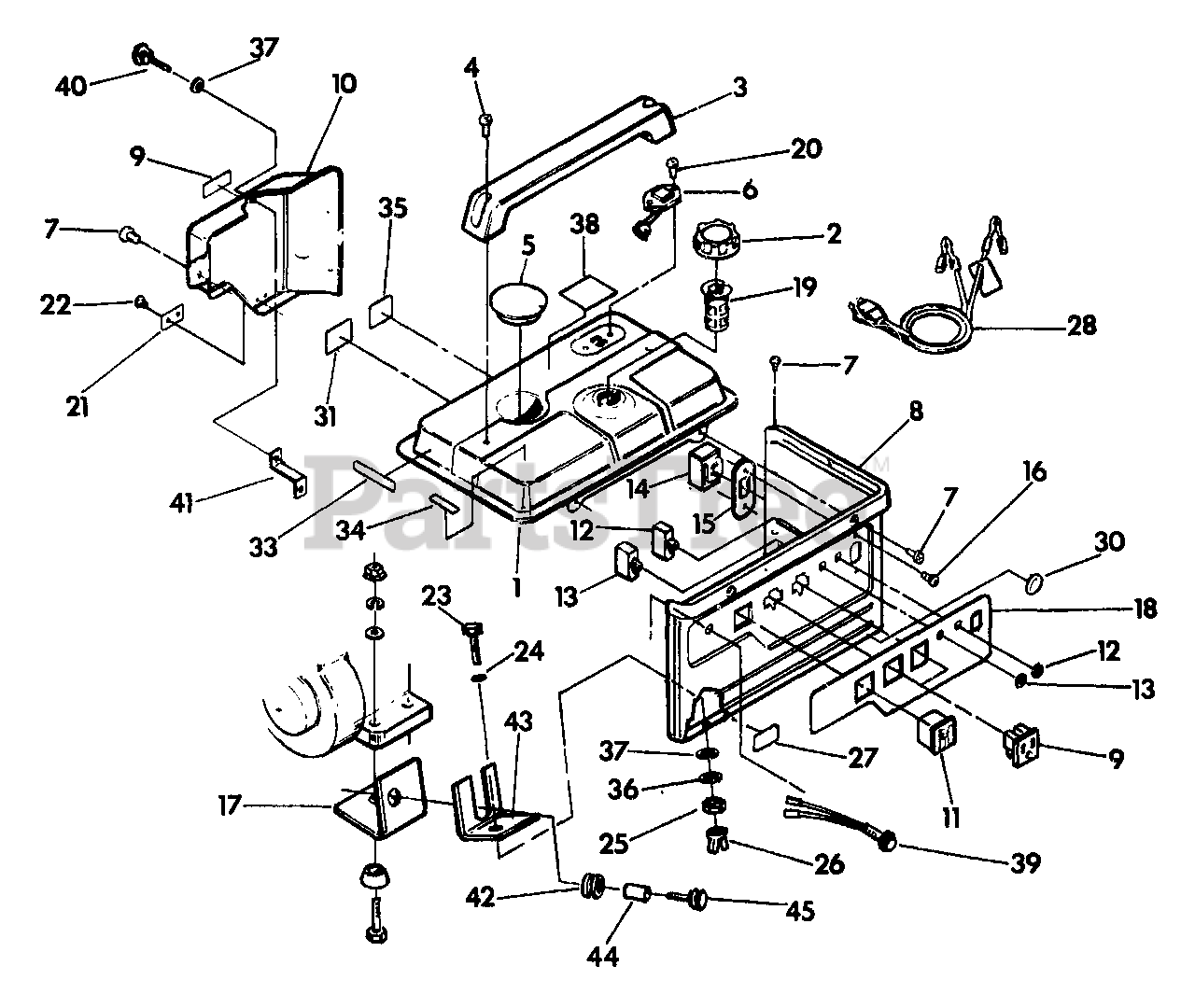

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 66374S

TANK, FUEL-3.0 LITER

$

$

Not available

2

Briggs & Stratton 69658

CAP, FUEL TANK

$

$

Currently unavailable

3

Briggs & Stratton 70627

HANDLE, CARRYING

$

$

Currently unavailable

4

Briggs & Stratton 66890

SCREW, PAN HEAD MACHINE-M6-1.00 x 12MM
(Superseded to 66890GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 64680A

COVER, SPARK PLUG ACCESS

$

$

Currently unavailable

6

Briggs & Stratton 66391A

GAUGE, FUEL LEVEL

$

$

Currently unavailable

7

Briggs & Stratton 66827

SCREW (WITH LOCK WASHER)-M5-0.80 x 12MM

$

$

Not available

8

Briggs & Stratton 66377

PANEL

$

$

Currently unavailable

9

Briggs & Stratton 66818

RECEPTACLE-120 VOLTS AC
(Superseded to 66818GS)

$

$

Not available

10

Briggs & Stratton 66378

SHIELD, EXHAUST MUFFLER

$

$

Currently unavailable

11

Briggs & Stratton 66817

SWITCH, RUN/STOP & LAMP, AC ON
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66820

BREAKER, CIRCUIT-10 AMPERE

$

$

Not available

13

Briggs & Stratton 66888

BREAKER, CIRCUIT-6.5 AMPERE

$

$

Not available

14

Briggs & Stratton 66821

RECEPTACLE, BATTERY CHARGE-12 VOLTS DC
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66822

BRACKET, BATTERY CHARGE RECEPTACLE
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66828

SCREW, M3-0.50 x 5MM

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66380

BRACKET, PANEL

$

$

Currently unavailable

18

Briggs & Stratton 81383

DECAL, RECEPTACLE PANEL

$

$

Currently unavailable

19

Briggs & Stratton 66838

FILTER, FUEL

$

$

Not available

20

Briggs & Stratton 52749

SCREW, M5-0.80 x 12MM

$

$

Currently unavailable

21

Briggs & Stratton 67430

PLATE, DATA

$

$

Currently unavailable

22

Briggs & Stratton 66829

RIVET-3MM

$

$

Currently unavailable

23

Briggs & Stratton 52619

SCREW, MACHINE-M5-0.80 x 20MM
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67444

WASHER, SERRATED-M5

$

$

Currently unavailable

25

Briggs & Stratton 51716

NUT, HEX-M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 67435

NUT, WING-M50.80

$

$

Currently unavailable

27

Briggs & Stratton 67210

DECAL, GROUND
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 66824

DECAL, CAUTION HOT

$

$

Currently unavailable

30

Briggs & Stratton 66864

DECAL, FORESTRY

$

$

Not available

31

Briggs & Stratton 67441A

DECAL, STARTING DATA

$

$

Currently unavailable

33

DECAL, AIR CLEANER

$

$

Not available

34

DECAL, UNLEADED FUEL

$

$

Not available

35

DECAL, LUBRICATION

$

$

Not available

36

Briggs & Stratton 49226

WASHER, LOCK-M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 23897

WASHER, FLAT-M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 69674

DECAL, FUEL CAUTION

$

$

Currently unavailable

39

Briggs & Stratton 70402

LOW OIL LAMP

$

$

Currently unavailable

40

Briggs & Stratton 65768

SCREW-M5

$

$

Currently unavailable

41

Briggs & Stratton 81872

PANEL, SUPPORT

$

$

Currently unavailable

42

Briggs & Stratton 81873

RUBBER GROMMET

$

$

Currently unavailable

43

Briggs & Stratton 81874

SUPPORT, HOUSING

$

$

Currently unavailable

44

Briggs & Stratton 81875

INSERT RING

$

$

Currently unavailable

45

Briggs & Stratton 81876

SCREW, M6

$

$

Currently unavailable
