9333-0 - Mastercraft 4,000 Watt Portable Generator M-4000 Generator Parts Diagram

4,000 Watt Portable Generator

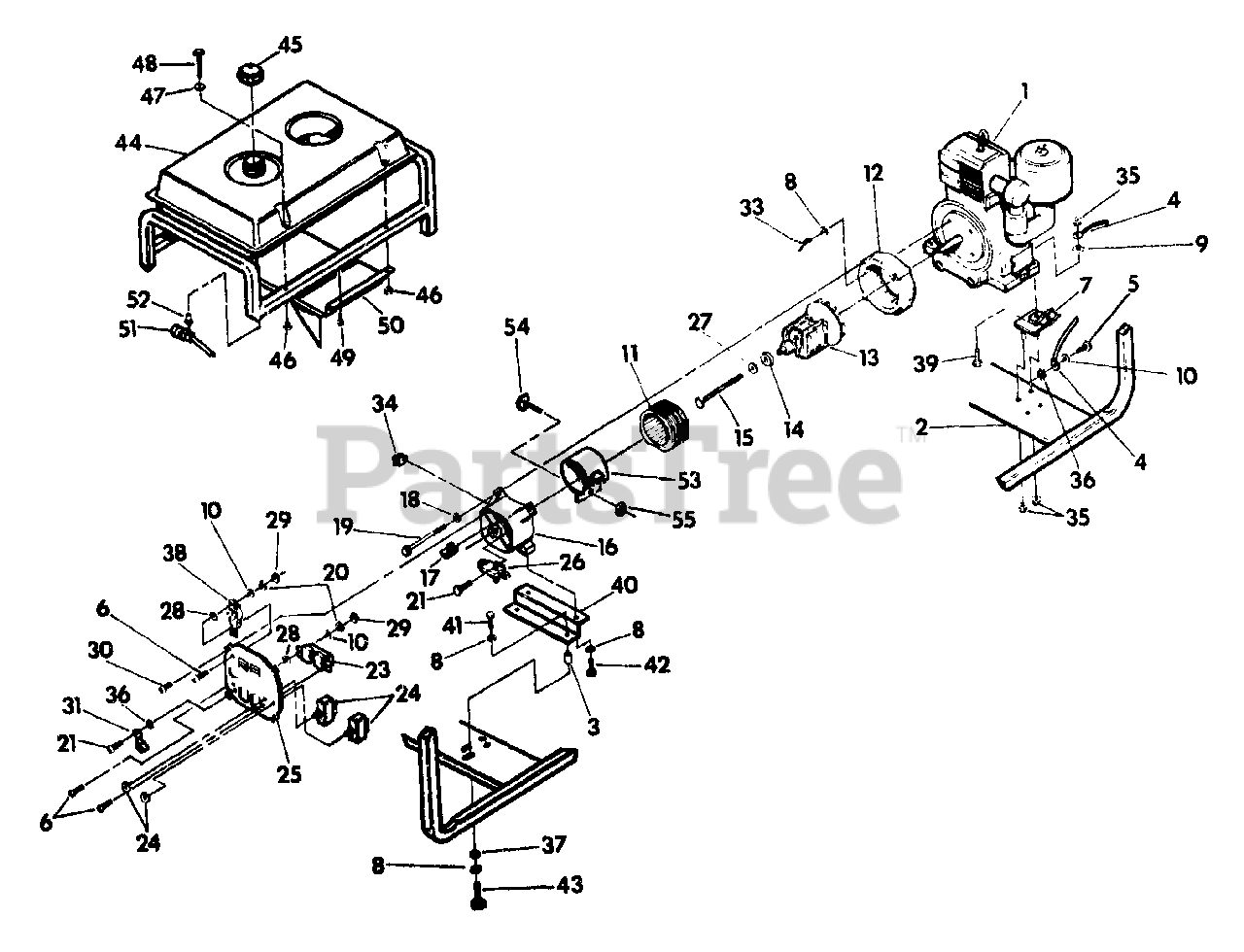

M-4000 Generator Parts Diagram

  • Title

1

Briggs & Stratton 76516

ENGINE-BRIGGS & STRATTON

$

$

Currently unavailable

1

Briggs & Stratton 78261

ENGINE-BRIGGS & STRATTON, WITH CAST IRON SLEEVE
(Superseded to 7078261YP)

$10.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 75987

CRADLE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 77840

CRADLE ASSEMBLY

$

$

Not available

3

Briggs & Stratton 44624

VIBRATION MOUNT

$

$

Not available

4

Briggs & Stratton 10953621

GROUND WIRE

$

$

Currently unavailable

5

Briggs & Stratton 24911

SCREW, TAPTITE #8 x 3/8"
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

SCREW, PAN HD. MACH.-M4-0.7 x 10

$

$

Not available

7

Briggs & Stratton 70642

MOUNT, VIBRATION
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

WASHER, SHAKE-PROOF-5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

WASHER, FLAT-#8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 82337

STATOR ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 66365G

HOUSING, ENGINE ADAPTOR
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74715

ROTOR ASSEMBLY

$

$

Currently unavailable

14

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24823

BOLT, ROTOR-5/16"-24 x 7.87
(Superseded to 24823GS)

$18.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

17

Briggs & Stratton 66850

BOARD, CIRCUIT BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449E

BOLT, STATOR M6-1.00 x 115MM

$

$

Currently unavailable

20

Briggs & Stratton 22264

LOCK WASHER-NO.8

$

$

Not available

21

Briggs & Stratton 66849

SCREW(TAPTITE)-M5-0.80 x 15MM
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 63025

RECEPTACLE-120VOLTS AC, 15AMP
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 66848

BREAKER, CIRCUIT-15AMP
(Superseded to 66848GS)

$25.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72098

CONTROL PANEL, SHEET METAL

$

$

Not available

26

Briggs & Stratton 66386

HOLDER ASSEMBLY, BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 67451

FLAT WASHER-(SPECIAL)

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCK WASHER(SERRATED)-NO.8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, HEX-M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW(TAPTITE)-M5-0.80 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

33

Briggs & Stratton 22336

SCREW, HEX HD.-5/16"-24 x 3/4"

$

$

Not available

34

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 HEX NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 22769

WASHER, SHAKE-PROOF #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

FLAT WASHER-M8

$

$

Not available

38

Briggs & Stratton 58889

240 VOLT -15AMP. OUTLET

$

$

Not available

39

Briggs & Stratton 76222

SCREW, PAN HEAD-M8 x 40
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 73078

SUPPORT, ALTERNATOR

$

$

Currently unavailable

41

Briggs & Stratton 36223

SCREW, HEX-5/16-18, 1/2"

$

$

Currently unavailable

42

Briggs & Stratton 39253

SCREW, HEX-M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

43

Briggs & Stratton 30332

SCREW, HEX-5/16-18 x 3/4

$

$

Currently unavailable

44

Briggs & Stratton 77374

FUEL TANK

$

$

Currently unavailable

45

Briggs & Stratton 78824

CAP, FUEL TANK

$

$

Currently unavailable

46

Briggs & Stratton 77395

NUT, HEX LOCK-M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 78830

WASHER, SPECIAL-BLACK
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 78831

SCREW, HEX M6-1.0 x 55

$

$

Currently unavailable

49

Briggs & Stratton 56892

SCREW (CRIMPTITE) #10-24 x 3/8
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 78951

HEAT SHIELD

$

$

Currently unavailable

51

Briggs & Stratton 78296

VALVE, PLASTIC TANK

$

$

Currently unavailable

52

Briggs & Stratton 78299

BUSHING, PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 81887B

ALT. WRAP

$

$

Not available

54

Briggs & Stratton 52618

SCREW, HEX HEAD-M5-0.8 x 12
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 52858

NUT, LOCKING-M5-0.8
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0
