933 SWE (31AH95SV710) - Cub Cadet 33" Snow Thrower (2009) Handle Panel & Discharge Chute Parts Diagram

33" Snow Thrower

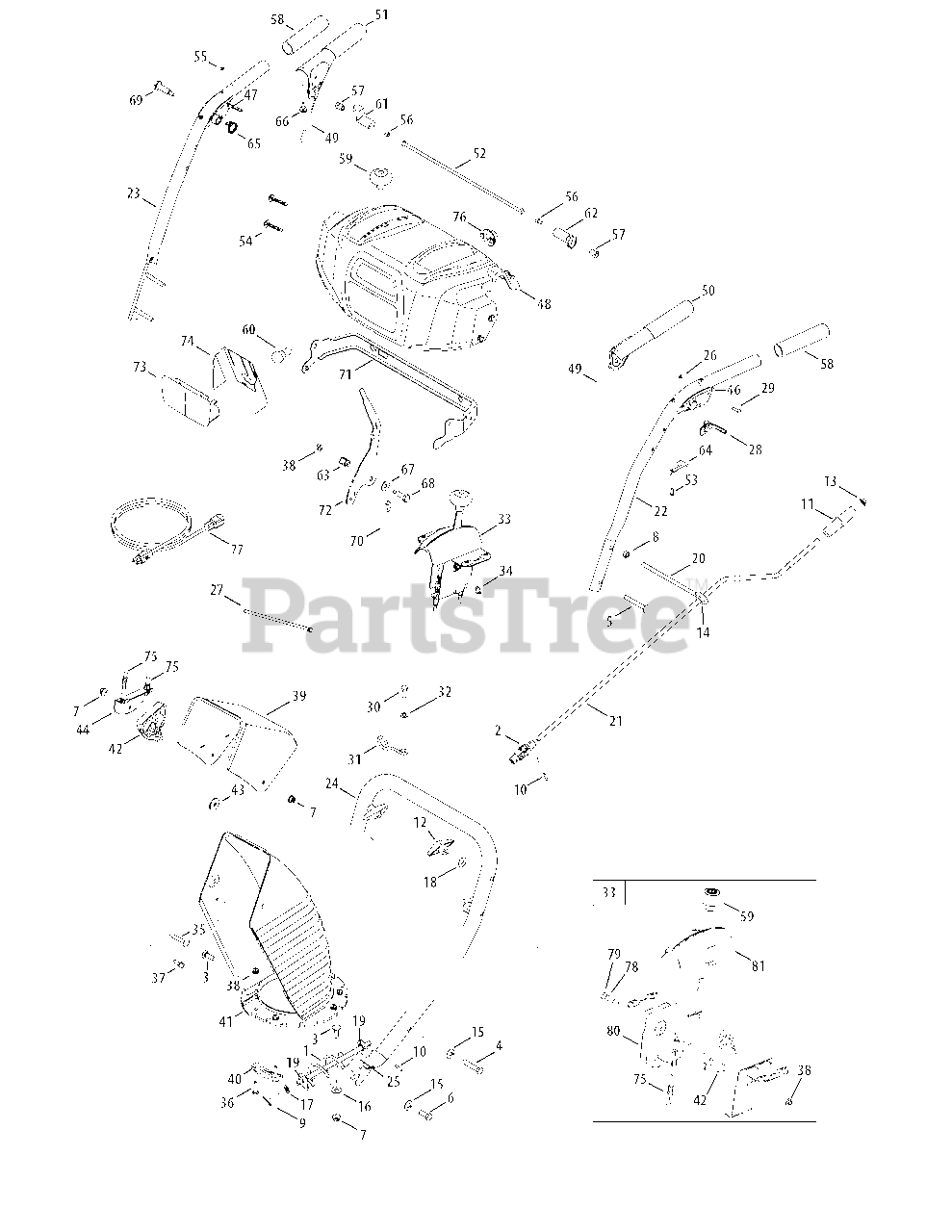

Handle Panel & Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

3

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04682

Screw, Hex, 3/8-16 x 2.00 Lock, Gr5

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0572

Screw, Carriage, 5/16-18 x 2.5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3118

Screw, Hex, 3/8-16 x 1.0 Lock, Gr5

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 715-04095

Spring Pin

$5.49

$

In Stock, Qty 14

0

11

Cub Cadet 720-0201A

Knob, Crank

$10.99

$

In Stock, Qty 5

0

12

Cub Cadet 720-04072A

Knob, Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 926-0100

Cap, Push, 3/8
(Superseded to 726-0100)

$

$

Not available

14

Cub Cadet 735-0234

Grommet, Rubber

$5.49

$

In Stock, only 2 left!

0

15

Cub Cadet 736-0105

Washer, Bel, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 936-0159

Washer, Flat, .349 x .879 .063
(Superseded to 736-0159)

$

$

Not available

17

Cub Cadet 936-0185

Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 941-0475

Plastic Bushing, .380 I.D.

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 747-04747

Eye Bolt

$12.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 747-04925A-0637

Chute Rod

$38.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 749-04309-0637

Handle, Upper - LH

$42.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 749-04310-0637

Handle, Upper - RH

$42.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 749-0991-0637

Handle, Lower

$79.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 790-00039-0637

Chute Crank Bracket

$

$

Not available

26

Cub Cadet 716-04036

Ring, Retainer

$6.49

$

In Stock, Qty 20+

0

27

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 731-04954

Trigger

$5.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-04022

Hex Head Screw, MB 1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 2 left!

0

33

Cub Cadet 984-04230

2-Way Chute Control™ Assy

$134.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0458

Bolt, Carriage, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

36

Cub Cadet 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 13

0

37

Cub Cadet 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

38

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 731-0846C

Upper Chute

$52.99

$

In Stock, only 3 left!

0

40

Cub Cadet 731-0851A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 17

0

42

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0231

Flat Washer
(Superseded to 736-0231)

$

$

Not available

44

Cub Cadet 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 3 left!

0

46

Cub Cadet 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, Qty 7

0

47

Cub Cadet 631-04134B

Handle Clutch Lock - RH

$15.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 631-04187P

Handle Panel
(Superseded to 931-04187A)

$71.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 646-0012

Cable Assembly, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

50

Cub Cadet 684-04105B

Handle Engage Assy - LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

51

Cub Cadet 684-04106B

Handle Engage Assy - RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

52

Cub Cadet 684-04250

Rod Ass’y, Clutch Lock Pivot

$12.99

$

In Stock, only 2 left!

0

53

Cub Cadet 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

54

Cub Cadet 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

55

Cub Cadet 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

56

Cub Cadet 710-3069

Screw, 1/4-20 x.375

$4.99

$

In Stock, Qty 10

0

57

Cub Cadet 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

58

Cub Cadet 720-0274

Hand Grip

$11.99

$

In Stock, Qty 8

0

59

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

60

Cub Cadet 925-0963

Lamp

$7.49

$

In Stock, Qty 5

0

61

Cub Cadet 731-04894D

Lock Plate

$5.49

$

In Stock, Qty 9

0

62

Cub Cadet 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

64

Cub Cadet 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

66

Cub Cadet 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

67

Cub Cadet 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

69

Cub Cadet 738-04348

Shoulder Screw, 1/4-20 x 1.345

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 746-04341

Speed Selector Cable

$25.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 790-00248B-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

72

Cub Cadet 790-00281B-0637

Shift Lever

$18.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 731-05324

Lens Panel

$14.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 777X41804

Reflector Label

$9.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 746-04338

Cable, Chute Tilt
(Superseded to 946-04338)

$56.99

$

In Stock, only 1 left!

0

76

Cub Cadet 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

77

Cub Cadet 929-0071

Extension Cord, 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

78

Cub Cadet 736-0413

Washer, Spring, .39 x .625 x .012

$6.99

$

In Stock, only 2 left!

0

79

Cub Cadet 738-04185

Screw, Shoulder, .31 x .995:1/4-20

$8.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 790-00200-0637

Bracket, Mounting
(Superseded to 790-00200A-0637)

$18.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 731-05307

Cover, Tilt Cover

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04314

Wiring Harness

Note: Not Shown

$

$

Not available
