933 SWE (31AE9PSV710) - Cub Cadet 33" Snow Thrower (2006) Electrical Assembly 13HP Parts Diagram

33" Snow Thrower

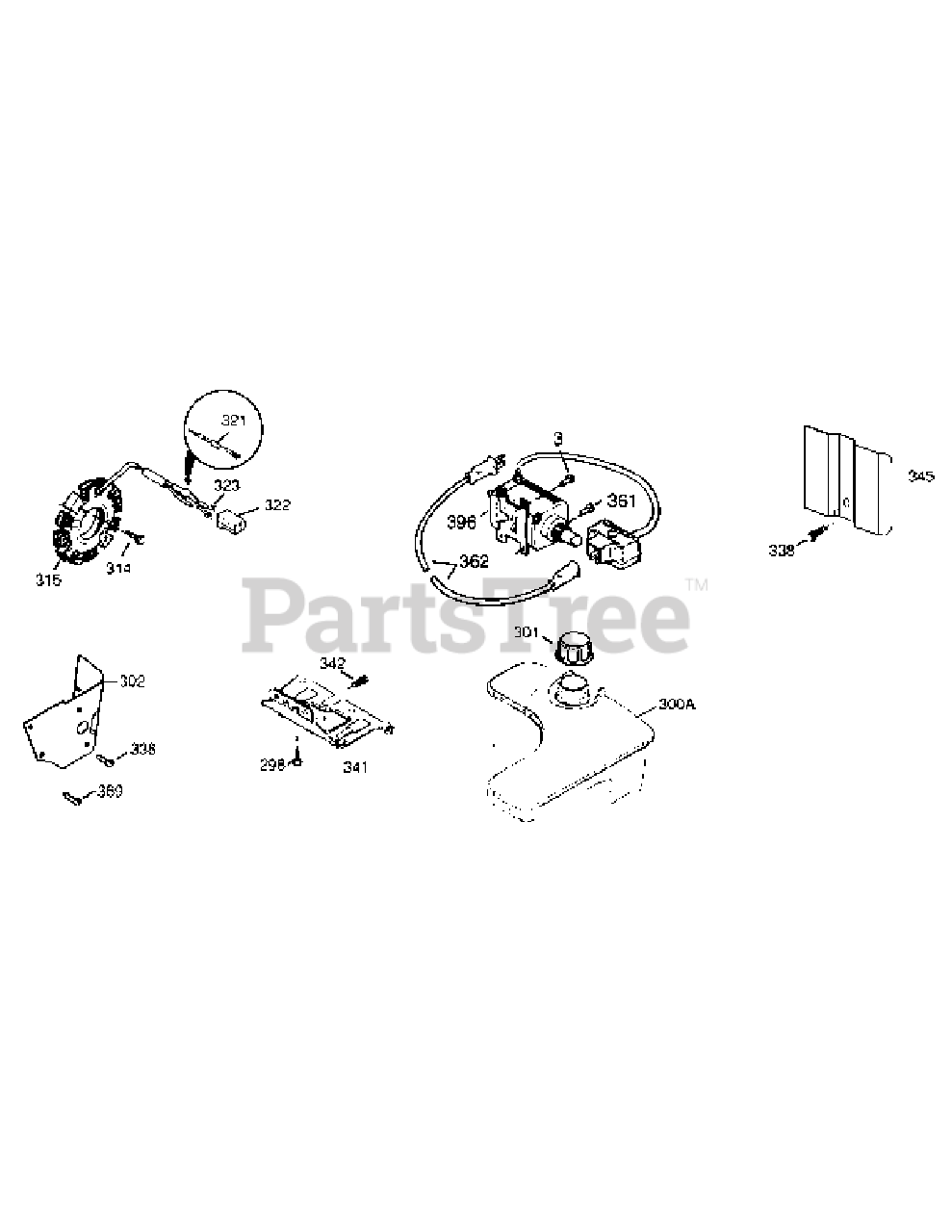

Electrical Assembly 13HP Parts Diagram

  • Title

3

Cub Cadet TC-650820

Screw, 1/4-20 x 1/2"

$3.99

$

In Stock, Qty 15

0

149A

Cub Cadet TC-35862

Intake Valve Seal

$9.49

$

In Stock, only 1 left!

0

157A

Cub Cadet TC-650586

Jam Nut, 5/16-24

$1.99

$

Usually ships in 3-12 days

0

212B

Cub Cadet TC-651017

Washer

$

$

Not available

238

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

290

Cub Cadet TC-37964

Fuel Line (32.0" Length)

Note: Low Permeation

$

$

Currently unavailable

298

Cub Cadet TC-650665

Screw, 1/4-15 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

301

Cub Cadet TC-37845

Fuel Cap (Red Plastic) (1-1/2" I.D.)

$8.99

$

In Stock, Qty 11

0

302

Cub Cadet TC-37098

Fuel Tank Extension

$

$

Not available

309

Cub Cadet TC-651011

Screw, 10-32 x 5/16"

$

$

Not available

314

Cub Cadet TC-650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

315

Cub Cadet TC-611111

Alternator Coil (18 watt)

$68.99

$

Usually ships in 3-12 days

0

338

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

341

Cub Cadet TC-37093

Fuel Tank Bracket

$

$

Not available

342A

Cub Cadet TC-792028

Screw, 5/16-18 x 7/8"
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

345

Cub Cadet TC-37097

Heat Baffle

$

$

Not available

361

Cub Cadet TC-650990

Screw, T-30, 1/4- 20 x 15/32"

$3.99

$

In Stock, only 4 left!

0

369

Cub Cadet TC-651032

Screw, 12-16 x 5/8"

$1.99

$

In Stock, only 1 left!

0

396

Cub Cadet TC-37105

Electric Starter Motor (120 volt)
(Superseded to TC-33329H)

Note: Optional

$

$

Not available

704

Cub Cadet TC-650738

Screw, 1/4-20 x 5/8"

$3.99

$

In Stock, only 1 left!

0

999

Winter Maintenance Kit

$

$

Not available
