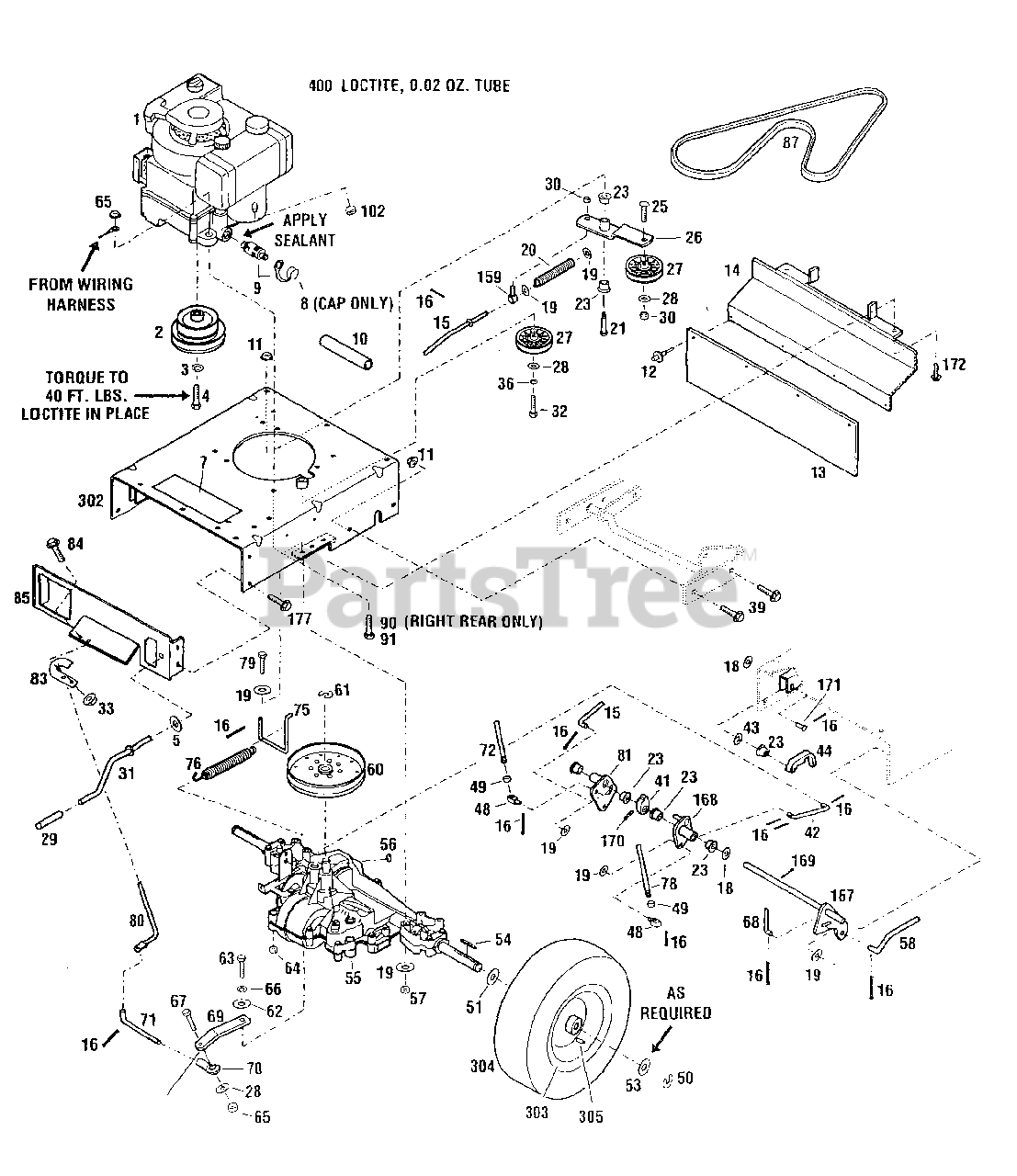

933 R (12A-751-190) - White Outdoor 33" Walk-Behind Mower (2001) Drive Assembly Parts Diagram

33" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Engine - Electric Start

Note: Refer to engine for model/type number.

$

$

Not available

1

Engine - Recoil Start

Note: Refer to engine for model/type number.

$

$

Not available

2

MTD 1769904

Engine Pulley

$

$

Not available

3

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

4

MTD 1740949

Bolt, 7/16-20 x 1-3/4
(Superseded to 710-04092)

$4.49

$

Usually ships in 3-6 days

0

5

MTD 1773599

Washer, Nylon
(Superseded to 736-04070)

$

$

Not available

7

MTD 1915475

Warning Decal

Note: NLA

$

$

Not available

8

MTD 1766326

Oil Valve Cap

Note: NLA

$

$

Not available

9

MTD 951-10517A

Oil Valve

Note: (Incl. Ref. 8)

$24.99

$

In Stock, only 3 left!

0

10

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

11

MTD 1186393

Flange Locknut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

12

MTD 1727379

Pop Rivet, 3/16

$3.49

$

Usually ships in 3-6 days

0

13

MTD 1769870

Flap

$

$

Not available

14

MTD 1769869001

Flap Bracket

$

$

Not available

15

MTD 1769885

Lower Transmission Rod

$

$

Not available

16

MTD 914-0111

Cotter Pin, 3/32 x 5/8
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

MTD GW-20546

Flat Washer, 1/2

$

$

Not available

19

MTD 736-0567

Flat Washer, 5/16

$3.49

$

Usually ships in 3-6 days

0

20

MTD 1711864

Compression Spring

$3.49

$

In Stock, Qty 5

0

21

MTD 1763219

Shoulder Bolt

$10.99

$

In Stock, only 2 left!

0

23

MTD 1715538

Nyliner, 1/2

$

$

Not available

25

MTD 1748393

Carriage Bolt, 3/8-16 x 1-3/4

Note: NLA

$

$

Not available

26

MTD 687-02011-0637

Idler Arm

$50.99

$

Usually ships in 3-6 days

0

27

MTD 1756151

Idler Pulley

$48.99

$

Usually ships in 3-6 days

0

28

MTD 736-3050

Flat Washer, 3/8

$4.49

$

In Stock, Qty 16

0

29

MTD 720-0269

Plastic Grip

$4.99

$

In Stock, only 1 left!

0

30

MTD 912-3000

Top Locknut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

31

MTD 1915831

Lift Crank Assembly

$25.99

$

In Stock, only 1 left!

0

32

MTD 710-0347

Bolt, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

33

MTD 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

36

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-04042

Flange Lock Screw, 3/8-16 x 1

$4.99

$

In Stock, only 2 left!

0

41

MTD 1769881

Interlock Cam

$8.49

$

In Stock, only 1 left!

0

42

MTD 1769877

Lower Brake Rod

$

$

Not available

43

MTD 1702646

Washer, Flat 1/2

$

$

Not available

44

MTD 1770361

Interlock Latch

$19.99

$

Usually ships in 3-6 days

0

48

MTD 1725264

Swivel Block

$

$

Not available

49

MTD 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, only 3 left!

0

50

MTD 916-0231

Retaining Ring
(Superseded to 716-0231)

$

$

Not available

51

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

53

MTD 1701447

Special Washer

Note: A/R

$4.49

$

In Stock, Qty 18

0

54

MTD 714-0168

Square Key, 3/16 x 2-1/2

$

$

Not available

55

N/A

Transmission Assembly,

Note: (See Transaxle for breakdown)

$

$

Not available

56

MTD 914-0868

Woodruff Key, 3/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

57

MTD 1732499

Top Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

58

MTD 747-04015

Lower Blade Rod

$

$

Not available

60

MTD 1770326

Transaxle Pulley

$128.99

$

Usually ships in 3-6 days

0

61

MTD 1118808

Retaining Ring

$

$

Not available

62

MTD 936-3020

Flat Washer, 1/4
(Superseded to 736-3020)

$

$

Not available

63

MTD 710-0412

Screw, 1/4-28 x 3/4

$5.99

$

In Stock, Qty 9

0

64

MTD 712-04054

Flange Locknut, 5/16-18

$4.99

$

In Stock, Qty 20+

0

65

MTD 712-0375

Locknut, 3/8-16

$4.49

$

In Stock, Qty 6

0

66

MTD 936-0329

Lock Washer, 114

$4.49

$

In Stock, Qty 11

0

67

MTD 710-3005

Screw, 3/8 x 1-1/4

$3.99

$

In Stock, Qty 20+

0

68

MTD 1769888

Upper Blade Rod

$

$

Not available

69

MTD 1915745001

Transmission Arm

$

$

Not available

70

MTD 1767837

Ball Joint

$

$

Not available

71

MTD 1768628

Shift Link Rod

$9.99

$

In Stock, only 1 left!

0

72

MTD 1769873

Upper Transmission Rod

Note: NLA

$

$

Not available

75

MTD 1768624

Spring Attachment Rod

$

$

Not available

76

MTD 1768636

Extension Spring

$

$

Not available

78

MTD 1769872

Upper Brake Rod

$

$

Not available

79

MTD 710-0176

Screw, 5/16-18 x 2-3/4

$4.49

$

In Stock, only 2 left!

0

80

MTD 1769874

Shift Rod

$33.99

$

Usually ships in 3-6 days

0

81

MTD 1769875

Clutch Arm Pivot

Note: NLA

$

$

Currently unavailable

83

MTD 1768630001

Shift Rod Bracket

$14.99

$

Usually ships in 3-6 days

0

84

MTD 710-0599

Flange Lock Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

85

MTD 1769852001

Backplate

$

$

Not available

87

MTD 1770334

V-Belt

$46.99

$

In Stock, only 4 left!

0

90

MTD 710-1007

Thread Forming Screw, 3/8-16 x 1-1/2

$6.49

$

In Stock, only 1 left!

0

91

MTD 1762042

Thread Forming Screw, 3/8-16 x 1

Note: NLA

$

$

Not available

102

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

159

MTD 1769038

Eye Bolt

Note: NLA

$

$

Not available

167

MTD 1769882

Pivot Shaft Assembly

Note: NLA

$

$

Not available

169

MTD 914-0115

Cotter Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

168

MTD 1904804001

Brake Arm

Note: NLA

$

$

Not available

170

MTD 1187961

Drive Pin, 5/32 x 1
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

171

MTD 1730851

Clevis Pin, 1/2 x 1-1/4

$

$

Not available

172

MTD 710-1260A

Screw, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

177

MTD 710-1260A

Flange Screw, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

302

MTD 687-02014-0662

Frame Weldment Assy

Note: (Incl. Ref. 7)

$

$

Not available

303

MTD 1768180

Wheel Rim

$

$

Not available

304

MTD 734-04237

Tire

$122.99

$

In Stock, only 1 left!

0

305

MTD 934-0255

Valve Stem

$4.49

$

In Stock, Qty 20+

0

400

MTD GW-97092

Loctite 242, 0.02 oz. Tube

$17.99

$

Usually ships in 3-6 days

0
