933 R (12A-751-100) - Cub Cadet Walk-Behind Mower Mower Deck Assembly Parts Diagram

Walk-Behind Mower

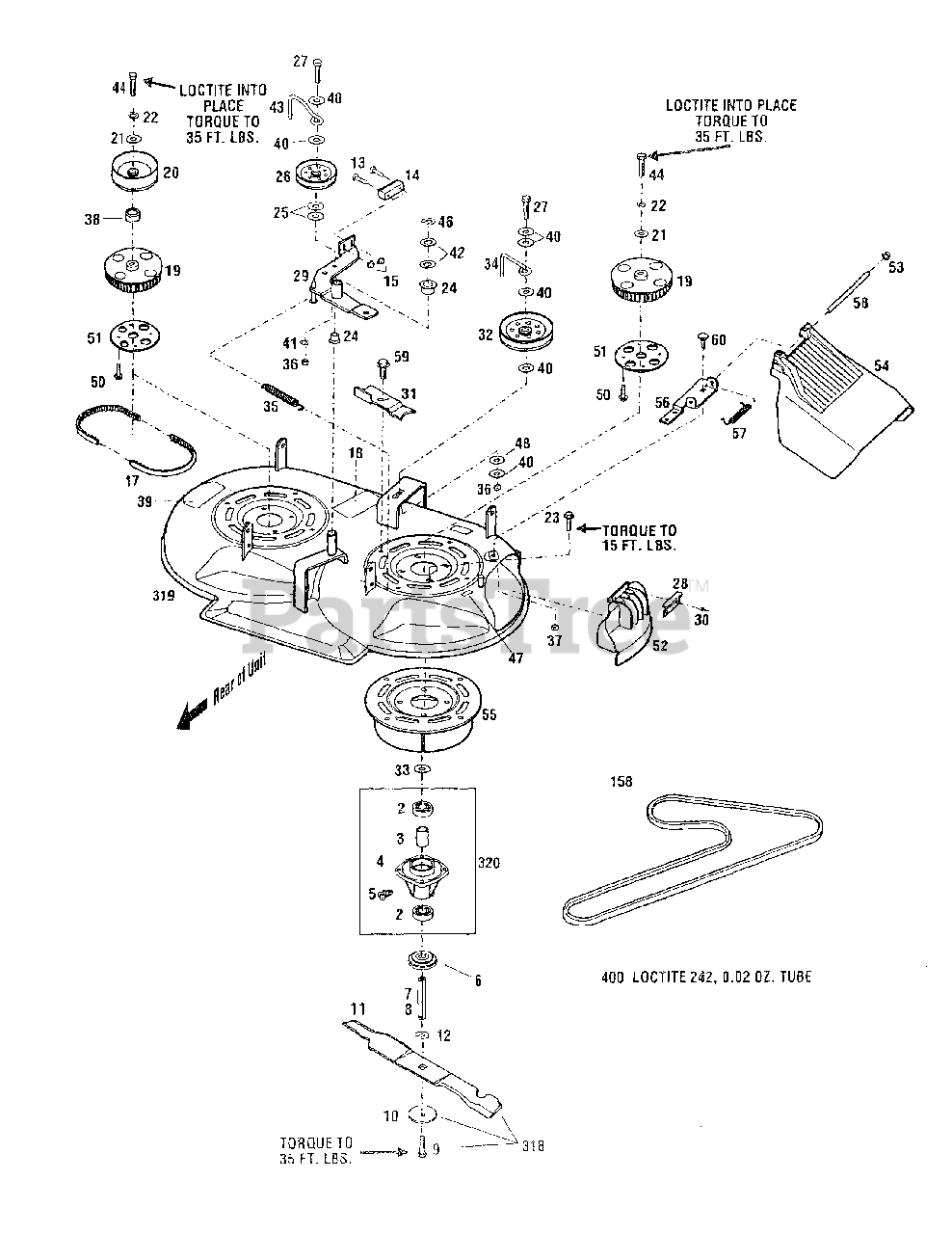

Mower Deck Assembly Parts Diagram

  • Title

2

Cub Cadet 1185574P

Ball Bearing

$34.99

$

In Stock, Qty 13

0

3

Cub Cadet 1746869

Spacer

$19.99

$

In Stock, only 2 left!

0

4

Cub Cadet 1769048099

Mower Spindle

Note: Replaces 1765092

$175.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 737-3004

Grease Fitting

Note: Replaces 1731504

$11.99

$

In Stock, only 4 left!

0

6

Cub Cadet 1765029

Blade Spacer

$13.99

$

In Stock, Qty 10

0

7

Cub Cadet 1918880

Right Spindle Shaft

Note: Replaces 1766061

$97.99

$

In Stock, Qty 20+

0

8

Cub Cadet 1918880

Left Spindle Shaft (long)

Note: Replaces 1768169

$97.99

$

In Stock, Qty 20+

0

9

Cub Cadet 1765196

Screw, 7/16-14 x 1

$3.99

$

In Stock, Qty 10

0

10

Cub Cadet 1765197

Belleville Washer

$26.99

$

In Stock, only 4 left!

0

11

Cub Cadet 1910917

Blade, 33" Mulching
(Superseded to 1910917001)

$33.99

$

In Stock, Qty 16

0

12

Cub Cadet 1185649

Retaining Ring

$

$

Not available

13

Cub Cadet 1771081

Flat Head Screw, #10-24 x 1-1/4

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet 1771083

Brake Pad

$

$

Not available

15

Cub Cadet 712-0272

Nylon Locknut, #10-24

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 1773600

Toothed Drive Belt

$48.99

$

In Stock, only 3 left!

0

18

Cub Cadet 1768435

Caution Decal

$

$

Not available

19

Cub Cadet 913-04050

Cogged Pulley, 56T

Note: Replaces 1774220

$162.99

$

In Stock, only 1 left!

0

20

Cub Cadet 1918625

Drive Pulley

Note: Replaces 1769362

$

$

Not available

21

Cub Cadet 736-0322

Flat Washer, 7/16

Note: Replaces 1736484

$9.49

$

In Stock, Qty 8

0

22

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 710-0602

Flange Lock Screw, 5/16-18 x 1

Note: Replaces 1773523

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 1764140

Range Bushing

$5.49

$

In Stock, only 3 left!

0

25

Cub Cadet 1701055

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 1918626

Idler Pulley

Note: Replaces 1762794

$33.99

$

In Stock, only 1 left!

0

27

Cub Cadet 1100062

Hex Head Capscrew, 3/8-16 x 2-1/2

$

$

Not available

28

NLA

Adapter Trim

Note: Replaces 1911054 & 1904809001

$

$

Not available

29

Cub Cadet 1770803

Idler Arm

$

$

Not available

30

Cub Cadet 1186059

Pop Rivet

$

$

Currently unavailable

31

Cub Cadet 1911021001

Belt Tension Adjustment Bracket

$

$

Not available

32

Cub Cadet 1749911

Idler Pulley

$

$

Not available

33

Cub Cadet 1766787

Special Thrust Washer

$6.49

$

In Stock, only 2 left!

0

34

Cub Cadet 1720717

Belt Guide

$

$

Not available

35

Cub Cadet 1756595

Extension Spring

$17.99

$

In Stock, only 1 left!

0

36

Cub Cadet 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 1723996

Pulley Spacer
(Superseded to 750-05218)

$7.49

$

In Stock, only 1 left!

0

39

Cub Cadet 1739687

Danger Decal

$7.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0262

Flat Washer, 3/8 x 3/4

Note: Replaces 1768818

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 1701447

Flat Washer

$4.49

$

In Stock, Qty 8

0

43

Cub Cadet 1764135

Belt Guide

$

$

Not available

44

Cub Cadet 1769397

Screw, 7/16-14 x 1-1/4
(Superseded to 710-04070)

$3.99

$

In Stock, only 2 left!

0

46

Cub Cadet 916-0101

Retaining Ring
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 777S30503

Warning Decal

Note: Replaces 1768451

$11.99

$

In Stock, only 2 left!

0

48

Cub Cadet 1185715

Pyramid Washer, 3/8

$

$

Not available

50

Cub Cadet 710-04065

Triplask Screw, 1/4-20 x 5/8

Note: Replaces 1771925

$6.49

$

In Stock, Qty 20+

0

51

Cub Cadet 1771922001

Sprocket Plate

$

$

Not available

52

Cub Cadet 631-04252

Mulcher Cover, Fold-Up Style

Note: Replaces 1773642 (Incl. Ref. 28 & 30)

$33.99

$

In Stock, only 3 left!

0

53

Cub Cadet 726-0135

Cap

Note: Replaces 1727342

$6.99

$

In Stock, only 1 left!

0

54

Cub Cadet 931-04244

Discharge Chute

Note: Replaces 1910931

$70.99

$

In Stock, only 2 left!

0

55

Cub Cadet 987-02004-0637

Weldment Doubler

Note: Replaces 1910948001

$

$

Not available

56

Cub Cadet 1910951001

Bracket, Chute Hinge

$32.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 1910971

Spring, Discharge Chute

$12.99

$

In Stock, only 2 left!

0

58

Cub Cadet 1910972

Pin, Discharge Chute

$13.99

$

In Stock, only 1 left!

0

59

Cub Cadet 710-1260A

Screw, Thread-Forming

Note: Replaces 1740496

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 1186098

Bolt, Carriage, 3/8-18 x 3/4

$

$

Not available

158

Cub Cadet 1769767

V-Belt

$44.99

$

In Stock, Qty 20+

0

318

Mulching Blade Kit

Note: (Order Ref. No. 9, 10 & 11)

$

$

Not available

319

Cub Cadet 1915738

Mower Deck Assembly

Note: (Incl. Ref.18, 39 & 47)

$

$

Not available

320

Cub Cadet 1769048099

Mower Spindle Assembly

Note: Replaces 1769048 (Incl. Ref. 2-5)

$175.99

$

Usually ships in 3-6 days

0

400

Cub Cadet GW-97092

Loctite 242, 0.02 oz.

Note: Replaces 97092

$17.99

$

Usually ships in 3-6 days

0
