933 E (12AE751-100) - Cub Cadet Walk-Behind Mower Handlebar And Console Assembly Parts Diagram

Walk-Behind Mower

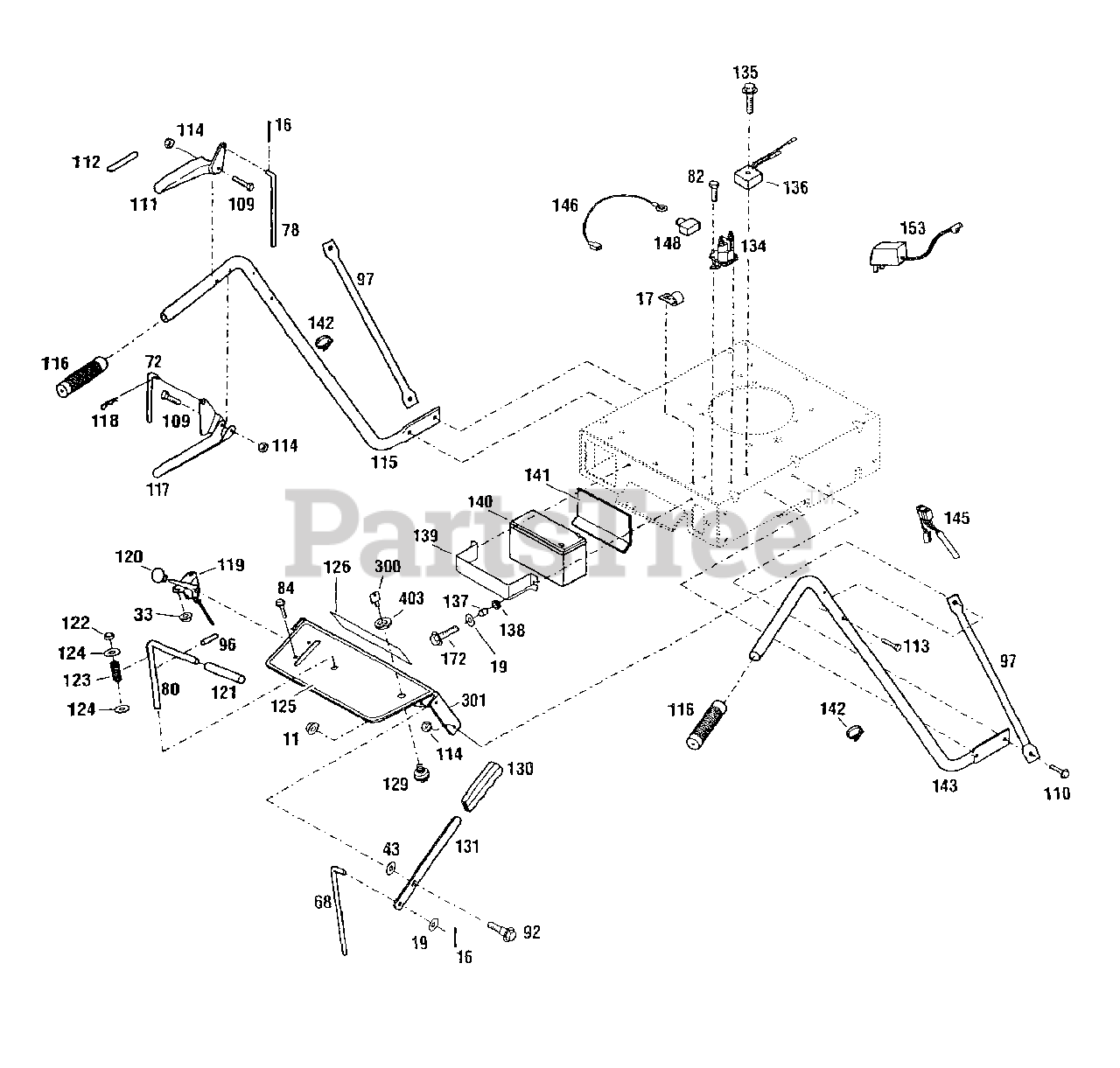

Handlebar And Console Assembly Parts Diagram

  • Title

11

Cub Cadet 1186393

Flange Locknut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet 1185147

Cotter Pin, 3/32 x 5/8
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 1721252

J-Clip

$

$

Not available

19

Cub Cadet 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

33

Cub Cadet 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 1702646

Flat Washer, 1/2

$

$

Not available

68

Cub Cadet 1769888

Upper Blade Rod

$

$

Not available

72

Cub Cadet 1773607

Upper Transmission Rod

$

$

Not available

78

Cub Cadet 1769872

Upper Brake Rod

$

$

Not available

80

Cub Cadet 1769874

Shift Rod

$33.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 1724492

Thread Cut. Screw, 1/4-20 x 1/2

Note: Model 933E Electric Start

$

$

Not available

84

Cub Cadet 1186308

Flange Lock Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 1703051

Shoulder Bolt

$11.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 1185279

Roll Pin, 1/4 x 2-1/4

$

$

Not available

97

Cub Cadet 1915545001

Brace, Handlebar

$

$

Not available

109

Cub Cadet 1111601

Hex Screw, 1/4-20 x 1-3/4

$

$

Not available

110

Cub Cadet 1186329

Flange Lock Screw, 5/16 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

111

Cub Cadet 1770445001

Control Handle

$

$

Not available

112

Cub Cadet 1768452

Operator Presence Control Decal

$

$

Not available

113

Cub Cadet 1915793

Hex Screw, 1/4-20 x 1-3/4, Grade 8
(Superseded to 710-0136)

$3.99

$

In Stock, Qty 20+

0

114

Cub Cadet 912-0291

Locknut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

115

Cub Cadet 1764922001

Left Handlebar

$94.99

$

In Stock, only 1 left!

0

116

Cub Cadet 9126

Handle Grip
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 8

0

117

Cub Cadet 1773605001

Control Handle

$

$

Not available

118

Cub Cadet 1717897

Hair Pin, 5/64

$3.49

$

Usually ships in 3-6 days

0

119

Cub Cadet 1768191

Throttle Control
(Superseded to 1768191P)

$

$

Not available

120

Cub Cadet 1737118

Knob
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

121

Cub Cadet 1737041

Handle Grip
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

122

Cub Cadet 1715716

Nylon Bushing

$3.49

$

Usually ships in 3-6 days

0

123

Cub Cadet 1721492

Compression Spring

$

$

Not available

124

Cub Cadet 936-0326

Flat Washer, 1/2
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

125

Cub Cadet 1768456

Warning Decal

Note: Model 933R

$

$

Not available

Cub Cadet 1768457

Warning Decal

Note: Model 933E Electric Start

$

$

Not available

126

Cub Cadet 1917307

Logo Decal

Note: Model 933R

$

$

Not available

Cub Cadet 1917308

Logo Decal

Note: Model 933E Electric Start

$

$

Not available

129

Cub Cadet 1908112P

Ignition Switch
(Superseded to 925-0267B)

Note: Model 933E Electric Start

$35.99

$

In Stock, Qty 20+

0

130

Cub Cadet 1764984

Handle Grip
(Superseded to 720-0313)

$19.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 1768223

Mower Engage Lever

$

$

Not available

134

Cub Cadet 1752137P

Solenoid

Note: Model 933E Electric Start

$70.99

$

Usually ships in 3-6 days

0

135

Cub Cadet 1747027

Thread-Cut. Screw, 1/4-20 x 1-1/2

Note: Model 933E Electric Start

$

$

Not available

136

Cub Cadet 1768464

Regulator
(Superseded to BS-794360)

$64.99

$

In Stock, only 2 left!

0

137

Cub Cadet 1749778

Spacer

Note: Model 933E Electric Start

$

$

Not available

138

Cub Cadet 1769080

Grommet

Note: Model 933E Electric Start

$

$

Not available

139

Cub Cadet 1915696001

Battery Bracket

Note: Model 933E Electric Start

$

$

Not available

140

Cub Cadet 1915750

Battery

Note: Model 933E Electric Start

$

$

Not available

141

Cub Cadet 1769081

Battery Pad

Note: Model 933E Electric Start

$

$

Currently unavailable

142

Cub Cadet 725-0157

Plastic Tie

$3.99

$

In Stock, Qty 20+

0

143

Cub Cadet 1764923001

Right Handlebar

$101.99

$

Usually ships in 3-6 days

0

145

Cub Cadet 1915758

Wiring Harness

Note: Model 933E Electric Start

$

$

Not available

146

Cub Cadet 1915759

Wire Lead

Note: Model 933E Electric Start

$

$

Not available

148

Cub Cadet 1734364

Boot

Note: Model 933E Electric Start

$

$

Currently unavailable

153

Cub Cadet 1768449

Battery Charger
(Superseded to 725-13345)

Note: Model 933E Electric Start

$65.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 1724491

Screw, 5/16-18 x 3/4"
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

300

Cub Cadet 1753986

Ignition Key

Note: Model 933E Electric Start

$

$

Not available

301

Cub Cadet 1915734

Console Assembly

Note: (Incl. Ref. 125); Model 933R

$

$

Not available

Cub Cadet 1915735

Console Assembly

Note: (Incl. Ref. 125); Model 933E Electric Start

$

$

Not available

403

~N/A

Nut, Ignition Switch

$

$

Not available
