933 E (12AE751-100) - Cub Cadet Walk-Behind Mower Engine Sump & Starter (Models 933R & 933E) Parts Diagram

Walk-Behind Mower

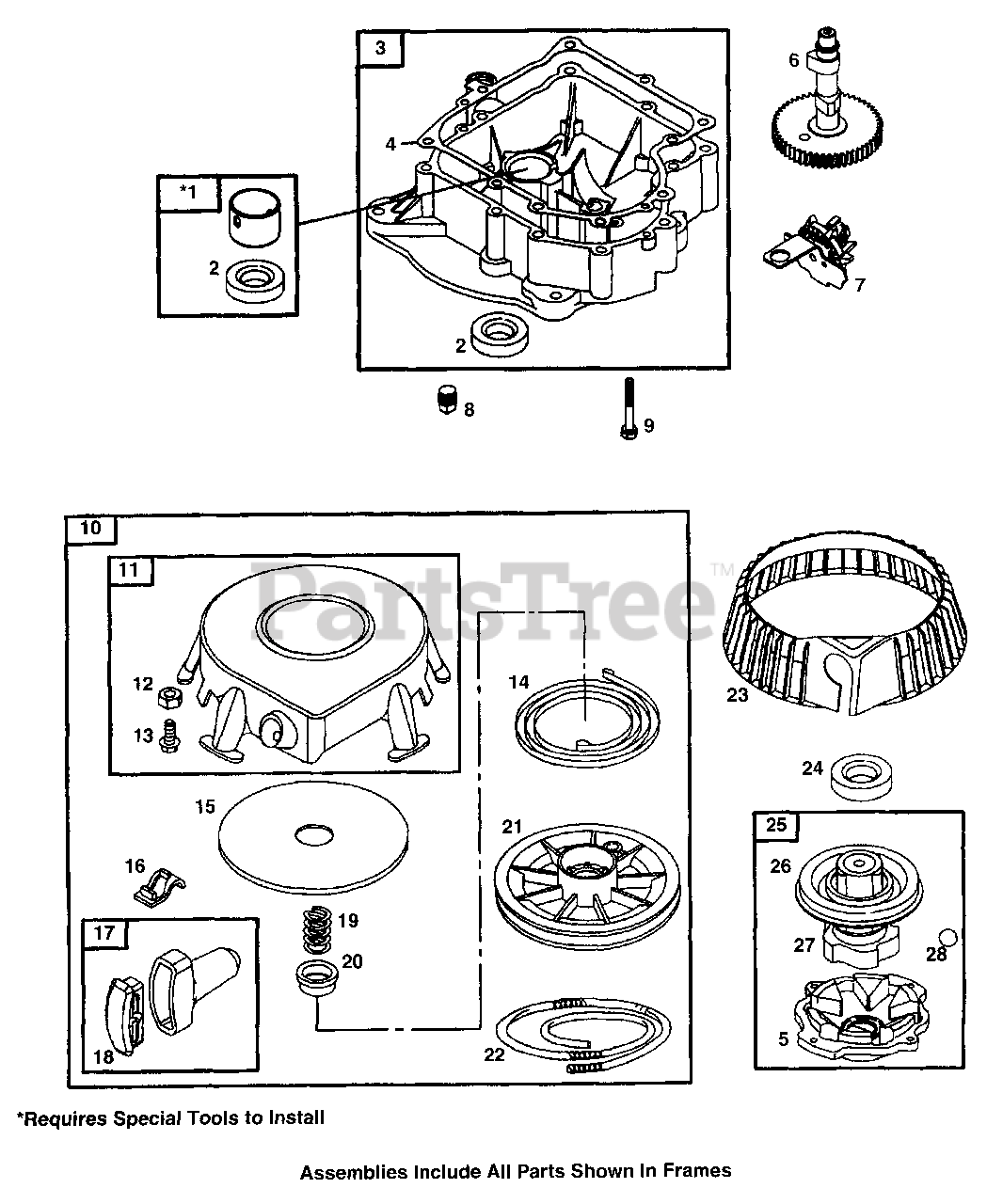

Engine Sump & Starter (Models 933R & 933E) Parts Diagram

  • Title

1

Cub Cadet BS-490666

Bushing/Seal Kit

$

$

Currently unavailable

2

Cub Cadet BS-291675

Crankcase Cover Oil Seal
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-494238

Engine Sump

$

$

Not available

4

Cub Cadet BS-271996

Crankcase Gasket, .009
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet BS-271916

Crankcase Gasket, .015
(Superseded to BS-692226)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet BS-271997

Crankcase Gasket, .005
(Superseded to BS-692406)

$9.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-394897

Starter Clutch Housing

$36.99

$

In Stock, only 2 left!

0

6

Cub Cadet BS-213720

Gear-Cam

$

$

Currently unavailable

7

Cub Cadet BS-490815

Oil Slinger
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-94239

Pipe Plug, Square Head
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

9

Cub Cadet BS-692125

Hex Screw

$4.99

$

In Stock, only 4 left!

0

10

Cub Cadet BS-390391

Rewind Starter
(Superseded to BS-693900)

$131.99

$

In Stock, Qty 11

0

11

Cub Cadet BS-393576

Rewind Starter Housing

$85.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-92987

Hex Nut
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

13

Cub Cadet BS-94128

Screw
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-490179

Rewind Starter Spring

$

$

Not available

15

Cub Cadet BS-490817

Rewind Spacer

$9.49

$

In Stock, Qty 5

0

16

Cub Cadet BS-222598

Spring Insert

$

$

Not available

17

Cub Cadet BS-490652

Starter Rope Handle

$5.49

$

In Stock, Qty 12

0

18

Cub Cadet BS-490653

Starter Rope Insert

$5.49

$

In Stock, Qty 12

0

19

Cub Cadet BS-260414

Ratchet Spring

$

$

Not available

20

Cub Cadet BS-281204

Spring Adapter
(Superseded to BS-691920)

$11.99

$

In Stock, Qty 5

0

21

Cub Cadet BS-295871

Starter Pulley w/ Rope

$14.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-66884

Starter Rope Cut to Length
(Superseded to BS-692188)

$8.49

$

In Stock, only 1 left!

0

23

Cub Cadet BS-280685

Rewind Starter Guard
(Superseded to BS-691904)

$27.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-68238

Ratchet Seal

$

$

Not available

25

Cub Cadet BS-495970

Starter Clutch

$

$

Currently unavailable

26

Cub Cadet BS-394506

Seal/Retainer Assembly

$

$

Not available

27

Cub Cadet BS-298799

Ratchet Assembly
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-63770

Clutch Ball

$

$

Not available
