933 E (12AE751-100) - Cub Cadet Walk-Behind Mower Engine Assembly (Models 933R & 933E) Parts Diagram

Walk-Behind Mower

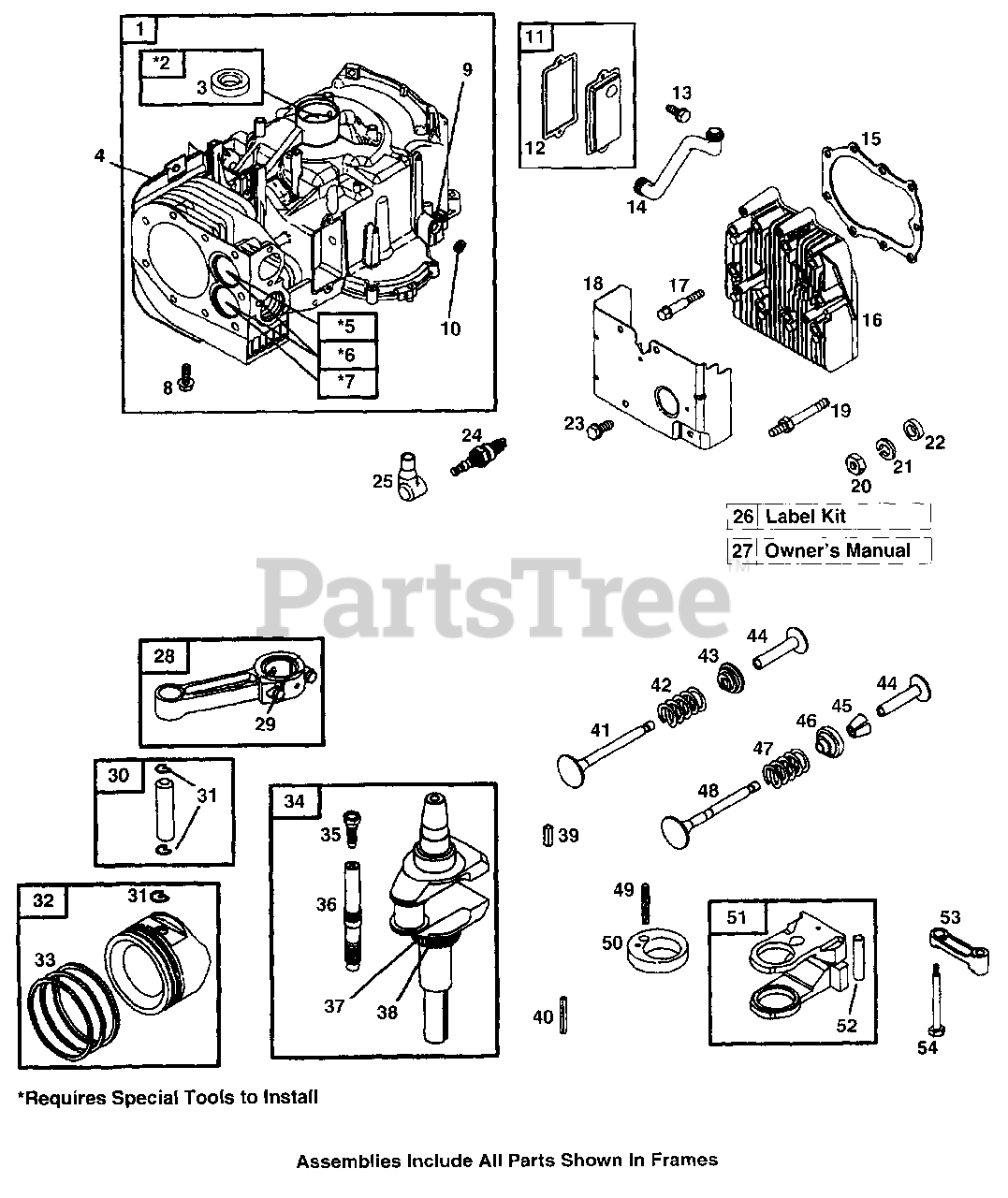

Engine Assembly (Models 933R & 933E) Parts Diagram

  • Title

1

Cub Cadet BS-496413

Cylinder Assembly

$344.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399265

Bushing/Seal Kit
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086

Oil Seal
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-224545

Cylinder Shield

$

$

Not available

5

Cub Cadet BS-261463

Intake Valve Seat
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-261961

Guide Bushing

$14.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-262924

Exhaust Valve Seat
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-94930

Tapping Hex Screw

$

$

Not available

9

Cub Cadet BS-491986

Governor Crank Bushing, 1/4" ID

$

$

Not available

10

Cub Cadet BS-491323

Governor Arm Seal
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 8

0

11

Cub Cadet BS-495735

Breather Assembly

$63.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-27803

Valve Cover Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-94621

Screw
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet BS-281246

Breather Tube
(Superseded to BS-691328)

$15.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-271866

Cylinder Head Gasket
(Superseded to BS-271866S)

$9.49

$

In Stock, only 3 left!

0

16

Cub Cadet BS-494240

Cylinder Head

$110.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-94622

Machine Hex Screw, 3" Long
(Superseded to BS-690904)

$11.99

$

In Stock, only 4 left!

0

18

Cub Cadet BS-491490

Cylinder Head Cover

$

$

Not available

19

Cub Cadet BS-94776

Hex Washer Head Stud, 3 15/16" Long

$

$

Currently unavailable

20

Cub Cadet BS-94314

Hex Nut

$

$

Currently unavailable

21

Cub Cadet BS-94315

Lock Washer

$

$

Currently unavailable

22

Cub Cadet BS-231109

Spacer

$

$

Not available

23

Cub Cadet BS-690960

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-802592

Resistor Spark Plug

$

$

Currently unavailable

25

Cub Cadet BS-66538

Spark Plug Elbow
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

26

Cub Cadet BS-491254

Label Kit

$27.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-273681

Owner's Manual

$

$

Currently unavailable

28

Cub Cadet BS-490348

Connecting Rod, Std

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490469

Connecting Rod, .020" Undersize

$

$

Not available

29

Cub Cadet BS-94671

Hex Screw

$

$

Not available

30

Cub Cadet BS-299691

Piston Pin, Std

Note: Before Code 95101600

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-498319

Piston Pin, Std

Note: After Code 95101500

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391286

Piston Pin, .005 OS

Note: Before 95101600

$

$

Currently unavailable

Cub Cadet BS-498320

Piston Pin, .005 OS

Note: After 95101500

$19.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-260924

Piston Pin Lock

Note: Before Code 95101600

$

$

Not available

Cub Cadet BS-263129

Piston Pin Lock

Note: After Code 95101500

$

$

Not available

32

Cub Cadet BS-394661

Piston / Ring Kit, Std
(Superseded to BS-499284)

$

$

Not available

Cub Cadet BS-394662

Piston / Ring Kit, .010 OS
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston / Ring Kit, .020 OS

$

$

Not available

Cub Cadet BS-394664

Piston / Ring Kit, .030 OS

$

$

Not available

33

Cub Cadet BS-392331

Ring Set, Std Chr

$37.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391780

Ring Set, Std
(Superseded to BS-499996)

$53.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391781

Ring Set, .010 OS

$

$

Not available

Cub Cadet BS-391782

Ring Set, .020 OS

$

$

Not available

Cub Cadet BS-391783

Ring Set, .030 OS

$

$

Not available

34

Cub Cadet BS-496784

Crankshaft

Note: Before Code Date 95100200

$

$

Currently unavailable

Cub Cadet BS-495162

Crankshaft

Note: After Code Date 95100100

$

$

Not available

35

Cub Cadet BS-94673

Shoulder Screw
(Superseded to BS-698139)

$5.99

$

In Stock, Qty 7

0

36

Cub Cadet BS-231828

Crankshaft Extension

$

$

Not available

37

Cub Cadet BS-262932

Timing Gear
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

38

Cub Cadet BS-94196

Woodruff Key

$

$

Not available

39

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

40

Cub Cadet BS-91540

Pulley key, 1/4"
(Superseded to BS-691483)

$6.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-262247

Intake Valve
(Superseded to BS-262247S)

$

$

Not available

42

Cub Cadet BS-65906

Valve Spring

$

$

Not available

43

Cub Cadet BS-221596

Spring Retainer (Valves w/Groove Stem)
(Superseded to BS-690656)

$

$

Not available

44

Cub Cadet BS-262248

Valve Tappet

$

$

Not available

45

Cub Cadet BS-494553

Valve Keeper

$7.99

$

In Stock, only 2 left!

0

46

Cub Cadet BS-292260

Rotocoil Assy, Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

47

Cub Cadet BS-26828

Exhaust Valve Spring

$

$

Not available

48

Cub Cadet BS-262246

Exhaust Valve

$

$

Not available

49

Cub Cadet BS-94160

Groove Pin

$

$

Not available

50

Cub Cadet BS-262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-399891

Counterweight Assy
(Superseded to BS-692423)

$222.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-230787

Counterweight Pin
(Superseded to BS-691239)

$8.99

$

In Stock, only 1 left!

0

53

Cub Cadet BS-213998

Counterweight Link

$

$

Not available

54

Cub Cadet BS-94593

Hex Screw

$

$

Not available

Cub Cadet BS-496606

Short Block

$445.99

$

Usually ships in 2-12 days

0
