933 E (12AE751-100) - Cub Cadet Walk-Behind Mower Alternator & Gaskets (Models 933R & 933E) Parts Diagram

Walk-Behind Mower

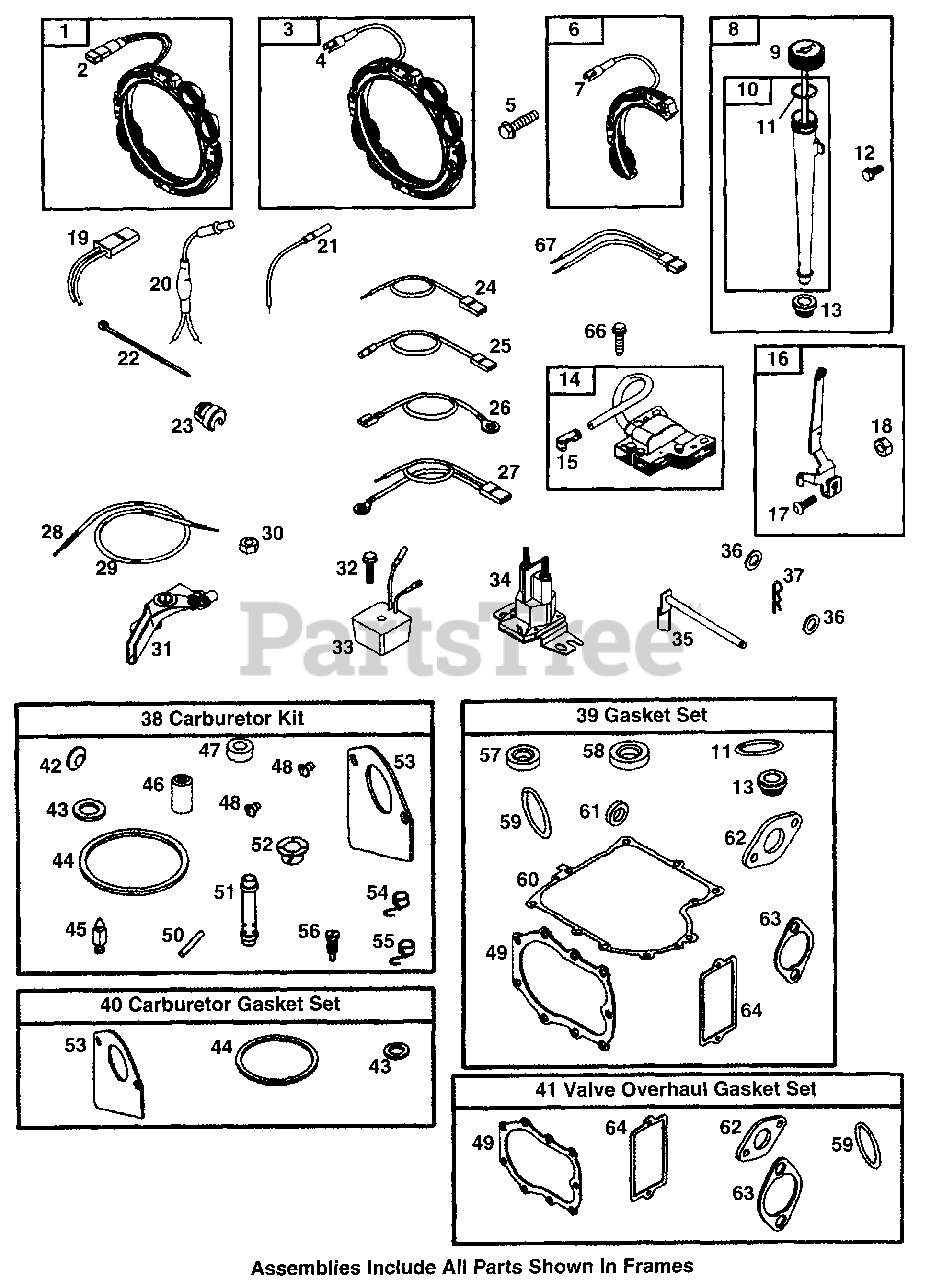

Alternator & Gaskets (Models 933R & 933E) Parts Diagram

  • Title

1

Cub Cadet BS-393474

Alternator/Stator (Dual Circuit)
(Superseded to BS-592831)

$101.99

$

In Stock, Qty 8

0

2

Cub Cadet BS-393456

Alternator Connector (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-392595

Alternator/Stator (Tri-Cir., 9A Regulated)
(Superseded to BS-592829)

$102.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-393537

Alternator Connector (Tri Circuit, 9A)

$

$

Not available

5

Cub Cadet BS-93621

Tapping Hex Screw
(Superseded to BS-691183)

$

$

Not available

6

Cub Cadet BS-391529

Alternator/Stator (DC Only)
(Superseded to BS-696578)

$124.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-399916

Alternator Connector (Regulated 16A)

$12.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-496367

Oil Tube Assembly

$

$

Currently unavailable

9

Cub Cadet BS-495229

Dipstick

$

$

Not available

10

Cub Cadet BS-496068

Oil Fill Tube

$

$

Currently unavailable

11

Cub Cadet BS-270920

Oil Fill Tube Seal
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-94073

Hex Washer Head Screw
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

13

Cub Cadet BS-281370

Tube Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-492341

Magneto-Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-493880

Cable Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-493935

Governor Lever

$

$

Not available

17

Cub Cadet BS-92613

Bolt

$

$

Not available

18

Cub Cadet BS-231082

Nut, 10-24

$

$

Not available

19

Cub Cadet BS-393362

Alternator Harness (Dual Circuit)
(Superseded to BS-398661)

$34.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-392606

Harness Assembly (Tri-Circuit)
(Superseded to BS-691955)

$69.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-393422

Socket/Wire Assembly (DC Only)
(Superseded to BS-692306)

$17.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-280275

Cable Tie

$4.49

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-225170

Wire Clip

$

$

Not available

Cub Cadet BS-281159

Wire Clip

$

$

Not available

24

Cub Cadet BS-497833

Stop Wire
(Superseded to BS-692390)

$

$

Not available

25

Cub Cadet BS-494328

Stop Wire

$

$

Not available

26

Cub Cadet BS-399223

Stop Wire

$

$

Currently unavailable

27

Cub Cadet BS-398808

Stop Wire, 30"

$11.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-26633

Control Wire, 78"

$

$

Currently unavailable

Cub Cadet BS-26099

Control Wire, 54"

$

$

Currently unavailable

29

Cub Cadet BS-66986

Wire Casing, 48"

$

$

Currently unavailable

Cub Cadet BS-65616

Wire Casing, 72"

$

$

Currently unavailable

30

Cub Cadet BS-63426

Hex Nut

$

$

Not available

31

Cub Cadet BS-290568

Control Lever

$

$

Currently unavailable

32

Cub Cadet BS-94862

Hex Screw

$

$

Not available

33

Cub Cadet BS-491546

Regulator Assembly, 9A
(Superseded to BS-794360)

$64.99

$

In Stock, only 2 left!

0

34

Cub Cadet BS-807829

Starter Solenoid
(Superseded to BS-691656)

$31.99

$

In Stock, Qty 20+

0

35

Cub Cadet BS-495157

Governor Crank
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

36

Cub Cadet BS-94742

Plain Washer
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

37

Cub Cadet BS-93306

Cotter Pin

$

$

Not available

38

Cub Cadet BS-499220

Carburetor Kit

$

$

Currently unavailable

Cub Cadet BS-499231

Carburetor Kit

$

$

Currently unavailable

Cub Cadet BS-497481

Carburetor Kit

Note: (LMT 63, 65, 66)

$59.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-494241

Gasket Set

$39.99

$

In Stock, Qty 8

0

40

Cub Cadet BS-494385

Carburetor Gasket Set
(Superseded to BS-697241)

$43.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-498539

Valve Overhaul Gasket Set

$38.99

$

Usually ships in 2-12 days

0

42

Welch Plug

Note: (Sold in Kit Only)

$

$

Not available

43

Cub Cadet BS-281164

Seal Washer
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 20+

0

44

Cub Cadet BS-281165

Float Bowl Gasket
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

45

Cub Cadet BS-231855

Inlet Valve
(Superseded to BS-231855S)

Note: (LMT 54, 55, 91)

$6.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-231854

Inlet Seat (Gravity Feed)
(Superseded to BS-690577)

$7.99

$

In Stock, only 3 left!

0

47

Cub Cadet BS-281166

Throttle Shaft Seal
(Superseded to BS-691326)

$5.49

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-94098

Round Washer Screw
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

49

Cub Cadet BS-271866

Cylinder Head Gasket
(Superseded to BS-271866S)

$9.49

$

In Stock, only 3 left!

0

50

Cub Cadet BS-231789

Float Hinge Pin
(Superseded to BS-690525)

$4.99

$

In Stock, only 1 left!

0

51

Cub Cadet BS-497860

Nozzle

Note: (Std LMT 108, 111, 133-136)

$

$

Currently unavailable

Cub Cadet BS-498258

Carb Nozzle

$

$

Currently unavailable

Cub Cadet BS-497736

Nozzle/Jet Assy

Note: (LMT 92, 93, 94, 95, 96)

$

$

Currently unavailable

Cub Cadet BS-496519

Carb Nozzle

Note: (Std-LMT63,65,66,100,136)

$

$

Not available

Cub Cadet BS-498545

Carb Nozzle

Note: (Standard LMT 108, 111)

$

$

Currently unavailable

Cub Cadet BS-499037

Carb Nozzle

Note: (Std LMT 162, 165, 169)

$

$

Currently unavailable

Cub Cadet BS-499040

Nozzle

Note: (High Altitude - LMT 96,165-168)

$

$

Currently unavailable

Cub Cadet BS-497568

Carb Nozzle

Note: (Std, LMT 97, 98, 99, 100)

$

$

Currently unavailable

Cub Cadet BS-499039

Carb Nozzle

Note: (Std, LMT 166, 167, 168)

$

$

Currently unavailable

Cub Cadet BS-499038

Nozzle/Jet

Note: (High Alt / LMT 162, 165, 169)

$

$

Currently unavailable

52

Cub Cadet BS-281346

Throttle Shaft Bushing

$

$

Not available

53

Cub Cadet BS-272465

Carburetor Gasket
(Superseded to BS-692284)

$4.99

$

In Stock, only 2 left!

0

54

Cub Cadet BS-494455

Spring and Seal Assy (Manual Choke)
(Superseded to BS-690802)

$9.49

$

Usually ships in 2-12 days

0

55

Cub Cadet BS-494453

Spring and Seal Assy (Choke-a-Matic)

$

$

Not available

56

Cub Cadet BS-231983

Pilot Jet

$

$

Currently unavailable

Cub Cadet BS-497472

Pilot Jet

$22.99

$

Usually ships in 2-12 days

0

57

Cub Cadet BS-391086

Oil Seal
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

58

Cub Cadet BS-291675

Oil Seal (for Crankcase Cover)
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

59

Cub Cadet BS-281106

O-Ring Seal
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet BS-271996

Crankcase Gasket, .009"
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet BS-271997

Crankcase Gasket, .005"
(Superseded to BS-692406)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-271916

Crankcase Gasket, .015"
(Superseded to BS-692226)

$6.99

$

In Stock, only 2 left!

0

61

UNKNOWN

$

$

Not available

62

Cub Cadet BS-272293

Exhaust Pipe Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

63

Cub Cadet BS-272554

Intake Gasket
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 5

0

64

Cub Cadet BS-27803

Valve Cover Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

66

UNKNOWN

$

$

Not available

67

UNKNOWN

$

$

Not available
