932506 (ST 8526) - Ariens 26" Snow Blower, 8.5hp Tecumseh (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

26" Snow Blower, 8.5hp Tecumseh

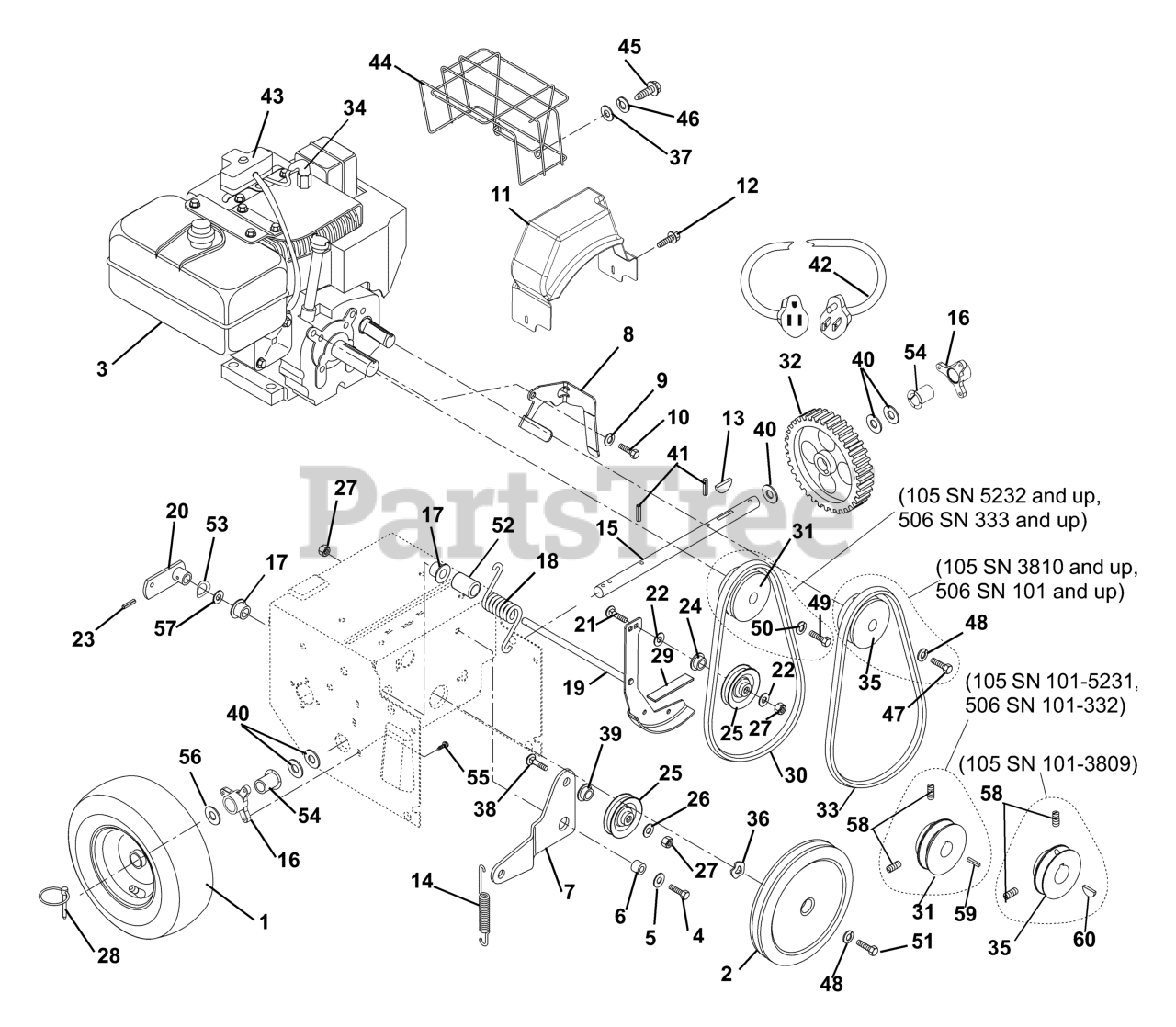

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100024

WHEEL 5.00 X 6.00

$74.99

$

Usually ships in 4-12 days

0

Ariens 07155900

TIRE 15 X 5.00-6 2P SNOWHOG
(Superseded to 07100815)

$54.99

$

Usually ships in 4-12 days

0

Ariens 07100016

TIRE/WHEEL ASSY, 15 X 5.00-6

$

$

Not available

Ariens 07156400

TUBE 15 X 5.00-6

$20.99

$

In Stock, only 2 left!

0

2

Ariens 00272300

PULLEY, 3L W/HUB, .625 X 6.5

$56.99

$

Usually ships in 4-12 days

0

3

Ariens 08200021

ENGINE, 8.5HP TEC LHSA318 120V

Note: (105 SN 3810 and up)

$

$

Not available

Ariens 08260004

ENGINE,8.5HP LH TEC.-120V &18W

Note: (105 SN 101-3809)

$

$

Not available

Ariens 08200020

ENGINE, 8.5HP TEC LHSA318 RECL

Note: (506 SN 101 and up)

$

$

Not available

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 03206900

IDLER ARM

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 00291851

BELT FINGER

$34.99

$

Usually ships in 4-12 days

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00274700

COVER, BELT, HYBRID

$

$

Not available

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

14

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 8

0

15

Ariens 00295700

AXLE SHAFT, 932 DELUXE (8526)

$68.99

$

Usually ships in 4-12 days

0

16

Ariens 00275200

BUSHING, RAKE SHAFT .75"

$26.99

$

In Stock, only 1 left!

0

17

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

18

Ariens 08300007

SG-TORS

$

$

Not available

19

Ariens 53213400

BRAKE ARM W/PAD

Note: (Includes item 29)

$

$

Not available

20

Ariens 02485551

LEVER, CLUTCH

$58.99

$

Usually ships in 4-12 days

0

21

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 11

0

24

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

25

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

26

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

29

Brake Pad (Included with Item 19)

Note: (Included with Item 19)

$

$

Not available

30

Ariens 07200007

V-BELT, HA-RAW EDGE

$35.99

$

In Stock, Qty 7

0

31

Ariens 00278900

SHEAVE, ENGINE LHSA318

Note: (105 SN 5232 and up, 506 SN 333 and up)

$148.99

$

Usually ships in 4-12 days

0

Ariens 00349200

SHEAVE-ENGINE W/KEYWAY LHSA318

Note: (105 SN 101-5231, 506 SN 101-332)

$

$

Not available

32

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

$90.99

$

Usually ships in 4-12 days

0

33

Ariens 07228600

V-BELT, 3L-RAW EDGE

Note: (Traction Drive)

$29.99

$

In Stock, Qty 9

0

34

Ariens 21533400

PLUG, SPARK

$3.49

$

In Stock, Qty 20+

0

35

Ariens 00279300

SHEAVE, CAMSHAFT LHSA318

Note: (105 SN 3810 and up, 506 SN 101 and up)

$

$

Not available

Ariens 03232700

PULLEY-CAMSHAFT

Note: (105 SN 101-3809)

$129.99

$

Usually ships in 4-12 days

0

36

Ariens 06400007

WSHR-WAVE .69X.84X.011

$2.49

$

In Stock, only 1 left!

0

37

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (506)

$0.99

$

Usually ships in 4-12 days

0

38

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

39

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

40

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 20+

0

42

Ariens 02483100

CORD, ELECTRIC START CORD 120V

Note: (105)

$35.99

$

In Stock, only 3 left!

0

43

Ariens 72403600

120 V STARTER KIT- 8 TO 11.5HP

$400.99

$

Usually ships in 4-12 days

0

44

Ariens 02460200

MUFFLER GUARD 8 & 10 HP

Note: (506)

$103.99

$

In Stock, only 1 left!

0

45

Ariens 07413600

SCR-TAP 10-16X.75 YWZC

Note: (506)

$

$

Not available

46

Ariens 06308100

@WSHR-LK #10X.047 REG YWZC

Note: (506)

$1.49

$

Usually ships in 4-12 days

0

47

Ariens 05900011

BLT-HEX .25-28X1.0 GR5 YZ EP80

$2.49

$

Usually ships in 4-12 days

0

48

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

49

Ariens 05900009

BLT-HEX .38-24X1.0 GR5 YZ EP80
(Superseded to 05960300)

$2.99

$

In Stock, only 1 left!

0

50

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 05900010

BLT-HEX .25-28X.75 GR5 YZ EP80
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

52

Ariens 05500013

BSHG-SLV .515X.875X1.50

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

54

Ariens 05500014

BSHG-FLG, SPLIT NYLINER .75"HP

$9.49

$

In Stock, Qty 17

0

55

Ariens 07400003

SCR-TAP, .25-20X.50 TR YZ W/VT
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

57

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: (105 SN 3810-5231, 506 SN 101-332)

$2.99

$

In Stock, Qty 15

0

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: (105 SN 101-3809)

$2.99

$

In Stock, Qty 15

0

59

Ariens 06601800

KEY-STR .25X1.75X.25

Note: (105 SN 101-5231, 506 SN 101-332)

$3.99

$

In Stock, only 2 left!

0

60

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

Note: (105 SN 101-3809)

$2.49

$

In Stock, only 1 left!

0
