932506 (ST 8526) - Ariens 26" Snow Blower, 8.5hp Tecumseh (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

26" Snow Blower, 8.5hp Tecumseh

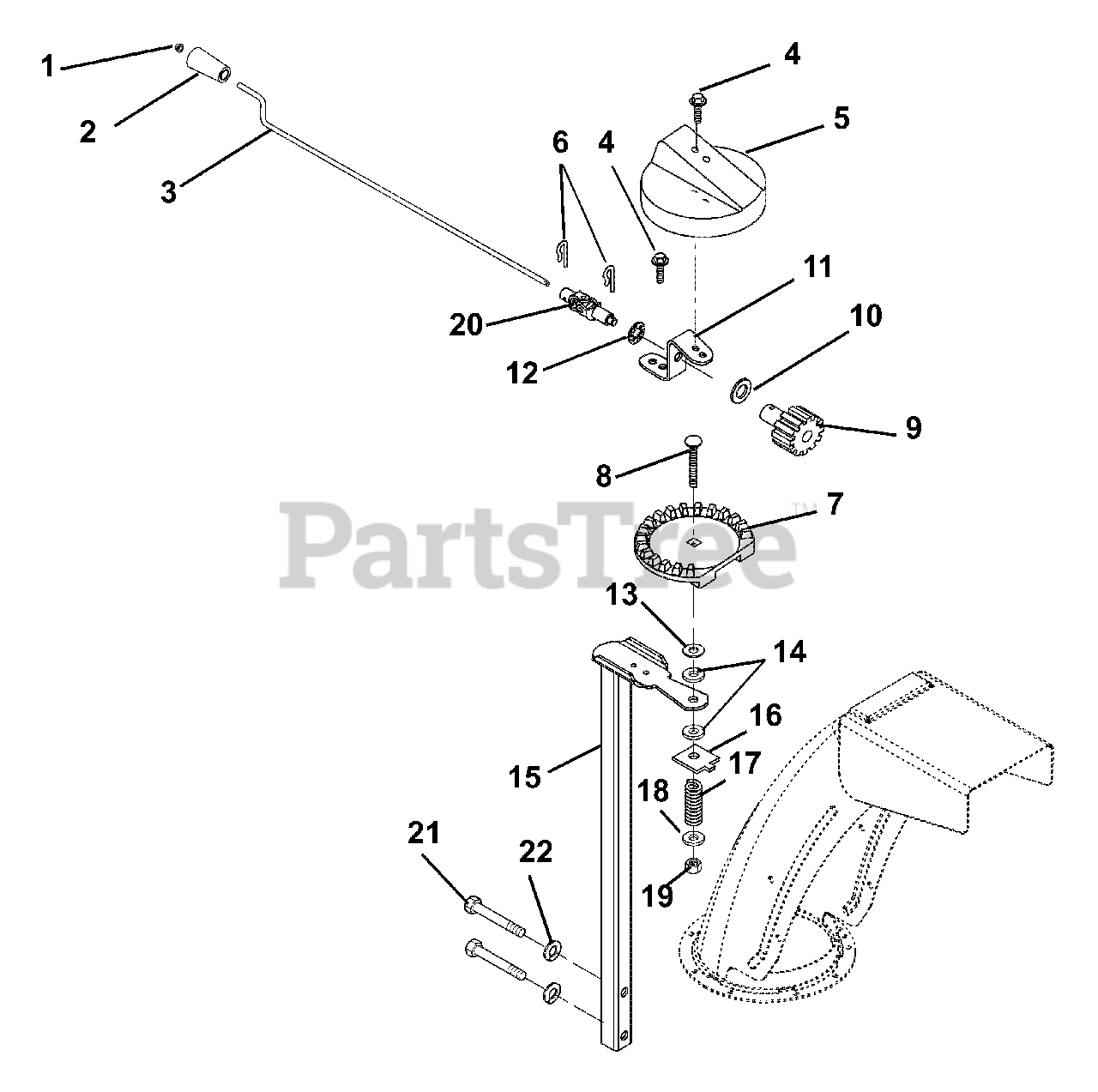

Discharge Chute Crank Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 15

0

2

Ariens 07500001

KNOB, CHUTE CRANK

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 00184600

CRANK, CHUTE

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03223000

GEAR COVER

$12.99

$

In Stock, only 3 left!

0

6

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

7

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 20+

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 53204400

PINION GEAR W/BRACKET
(Superseded to 53214200)

Note: (Contains Items 10-12)

$48.99

$

In Stock, Qty 9

0

10

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03220551

BRACKET-GEAR
(Superseded to 53214200)

$48.99

$

In Stock, Qty 9

0

12

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 13

0

13

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

15

Ariens 00256751

PEDESTAL, CHUTE SUPPORT

$

$

Not available

16

Ariens 03219000

FRICTION PLATE

$27.99

$

In Stock, only 3 left!

0

17

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 18

0

18

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 02495900

ASS'Y, UNIVERSAL-W/PIN END

$142.99

$

Usually ships in 4-12 days

0

21

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0
