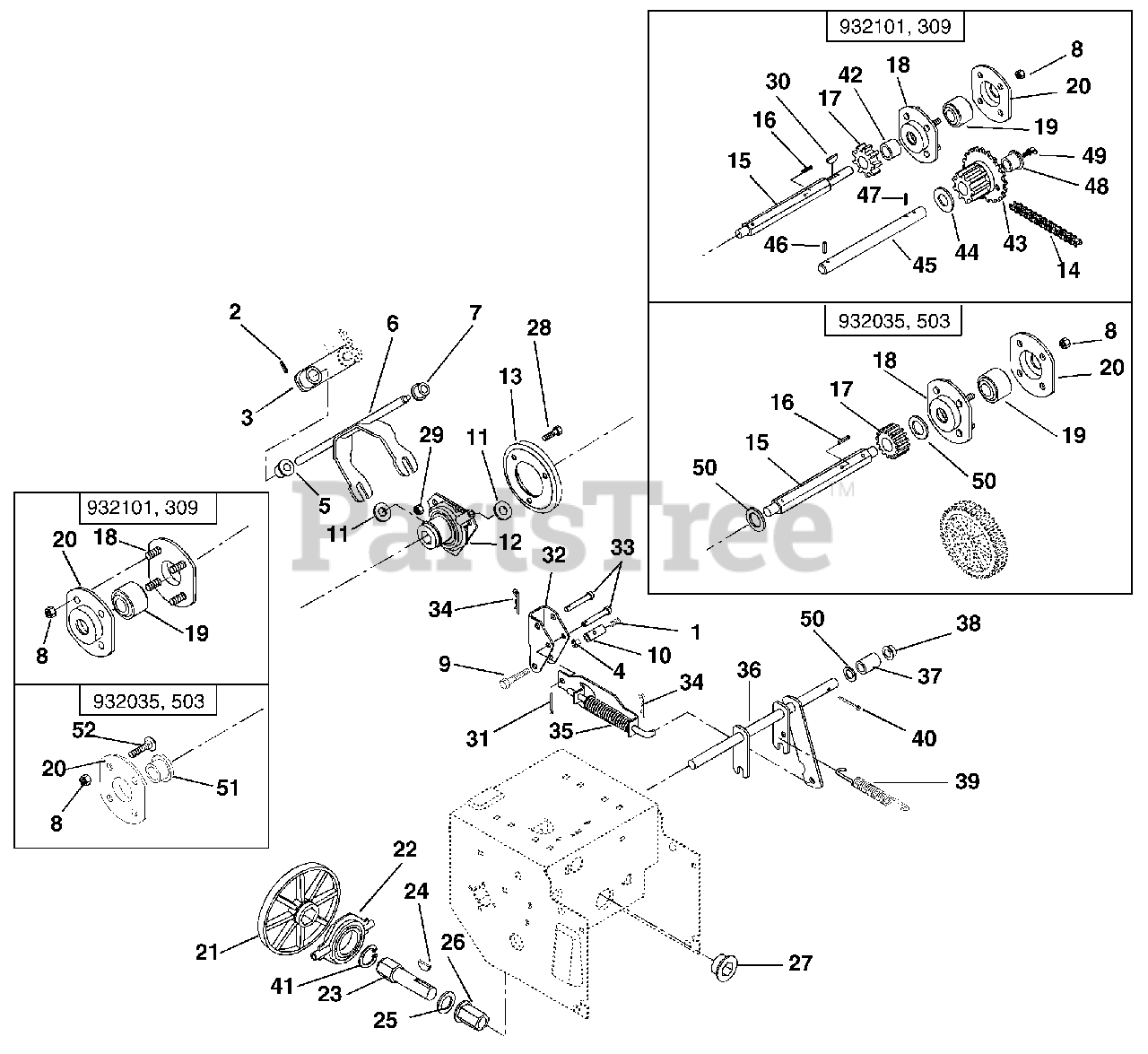

932503 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Friction Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

Friction Drive Parts Diagram

  • Title

1

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

2

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

3

Ariens 03240151

ARM, SPEED CONTROL

$66.99

$

Usually ships in 4-12 days

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

6

Ariens 03231700

FORK-SPEED

$129.99

$

In Stock, only 3 left!

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 8

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

11

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03235300

SHIFT CARRIER

$82.99

$

In Stock, only 1 left!

0

13

Ariens 03240700

DISC, FRICTION - 716 MAT'L
(Superseded to 03248300)

$39.99

$

In Stock, Qty 20+

0

14

Ariens 03232800

CHAIN-ROLLER #41X26 PITCHES

Note: (Models 101, 309)

$

$

Not available

15

Ariens 03207300

HEX SHAFT

Note: (Models 035, 503)

$31.99

$

Usually ships in 4-12 days

0

16

Ariens 05804700

PIN-ROLL .125X.88

Note: (Models 035, 503)

$0.99

$

In Stock, Qty 9

0

17

Ariens 02201100

PINION

Note: (Models 035, 503)

$10.99

$

In Stock, only 1 left!

0

18

Ariens 00308500

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

19

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

20

Ariens 03226900

BEARING FLANGE

$18.99

$

Usually ships in 4-12 days

0

21

Ariens 03201100

FRICTION PLATE

$75.99

$

In Stock, Qty 5

0

22

Ariens 03225900

BEARING ASSEMBLY

$82.99

$

In Stock, only 4 left!

0

23

Ariens 03200700

HEX SHAFT

$68.99

$

Usually ships in 4-12 days

0

24

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

25

Ariens 06417300

WSHR, THRUST .625X1.125X.063

$9.49

$

In Stock, only 1 left!

0

26

Ariens 05512000

BSHG-FLG .625X.875X1.750X1.188

$18.99

$

In Stock, only 4 left!

0

27

Ariens 05512100

BSHG-FLG .875X1.25X.75X1.50HX

$14.99

$

In Stock, Qty 6

0

28

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

Note: (Models 101, 309)

$2.49

$

In Stock, only 1 left!

0

31

Ariens 06707400

@PIN-CTR .09X.50 EXTPRSQCT YWZ

$0.99

$

In Stock, only 1 left!

0

32

Ariens 03220600

BRACKET

$57.99

$

Usually ships in 4-12 days

0

33

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 53205500

TRACTION CLUTCH ASSY

Note: (Models 035, 503)

$

$

Not available

36

Ariens 03221100

CLUTCH FORK

$82.99

$

Usually ships in 4-12 days

0

37

Ariens 03231500

SPACER .504X.748X.321

$

$

Not available

38

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

39

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

40

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

41

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

42

Ariens 03233100

SPACER .513X.748X.620

Note: (Models 101, 309)

$15.99

$

Usually ships in 4-12 days

0

43

Ariens 03232500

PINION AND SPROCKET ASSY

Note: (Models 101, 309)

$

$

Not available

44

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (Models 101, 309)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 03232600

SHAFT-PINION
(Superseded to 53216000)

Note: (Models 101, 309)

$71.99

$

Usually ships in 4-12 days

0

46

Ariens 05800900

PIN-ROLL .125X1.00

Note: (Models 101, 309)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 05802600

PIN-ROLL .156X.88

Note: (Models 101, 309)

$2.49

$

In Stock, Qty 9

0

48

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

Note: (Models 101, 309)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 07029700

DRIVE FITTING, HYD. BRIGHT ZC

Note: (Models 101, 309)

$11.99

$

Usually ships in 4-12 days

0

50

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

Note: (Models 035, 503)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

Note: (Models 035, 503)

$11.99

$

In Stock, Qty 20+

0

52

Ariens 06214200

BLT-RDHDSQSHK #10-24X.38 GR2YW

Note: (Models 035, 503)

$0.99

$

In Stock, Qty 10

0
