932500 (ST 520) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Auger And Chute Parts Diagram

20" Snow Blower, 5hp Tecumseh

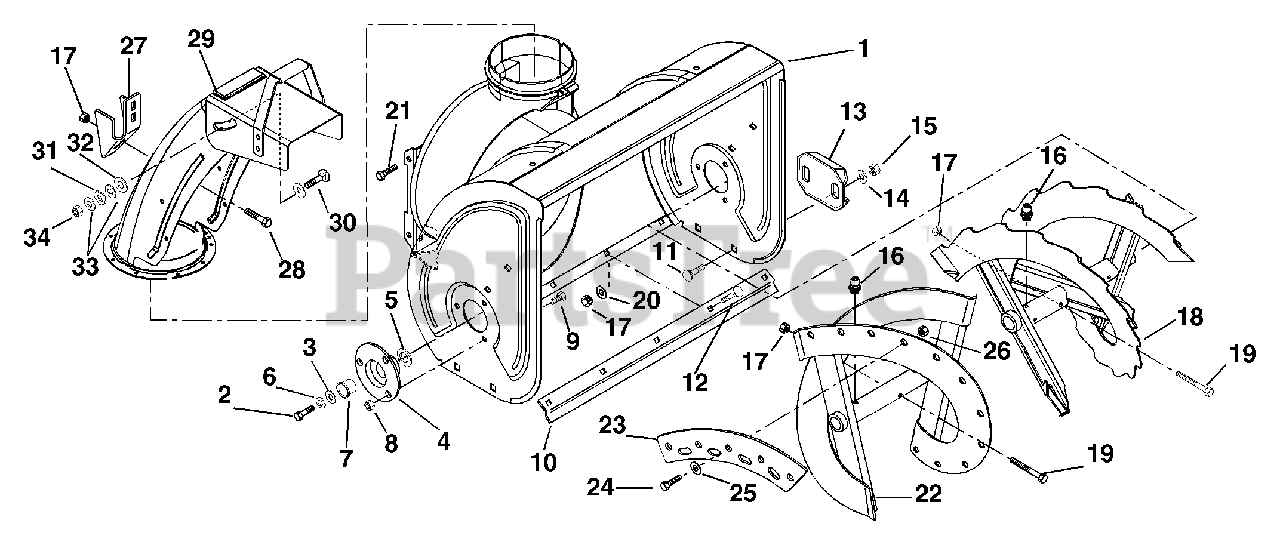

Auger And Chute Parts Diagram

  • Title

1

Ariens 53209600

HOUSING, BLOWER - 20"

Note: (500)

$

$

Not available

1

Ariens 53209200

HOUSING, BLOWER - 24"

Note: (501)

$724.99

$

In Stock, only 1 left!

0

2

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

3

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

4

Ariens 53203100

BEARING FLANGE ASSEMBLY

Note: (Includes Item 7)

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

8

Ariens 06430100

WSHR-FL-STL .125X.312X.032

$

$

Not available

9

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 20+

0

10

Ariens 03707200

SCRAPER BLADE
(Superseded to 09183851)

Note: (500)

$15.99

$

In Stock, Qty 6

0

10

Ariens 03208159

SCRAPER BLADE

Note: (501)

$34.99

$

In Stock, Qty 20+

0

11

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

Note: (501)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

Note: (501)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (500)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

Note: (501)

$19.99

$

In Stock, Qty 20+

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (501)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (501)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

17

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 53207800

RAKE, RIGHT-24"(.75ID X 10.88)

Note: (501) (Includes Items 16)

$327.99

$

In Stock, only 1 left!

0

18

Ariens 53207900

RAKE, LEFT-24(.75ID X 10.88OD)

Note: (501) (Includes Items 16)

$

$

Not available

19

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Items 17)

$2.99

$

In Stock, Qty 20+

0

20

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 53204100

RAKE, RIGHT-20(.75ID X 10.5OD)

Note: (500)

$

$

Not available

22

Ariens 53208100

RAKE, LEFT-20"(.75ID X 10.5OD)

Note: (500)

$

$

Not available

23

Ariens 53201800

RAKE EDGE W/HARDWARE

Note: (500)

$155.99

$

Usually ships in 4-12 days

0

24

Ariens 05944800

BLT-HEX 10-24X.63 PL

Note: (500)

$

$

Not available

25

Ariens 06444400

@WSHR-FL-STL .188X.438X.049 YZ

Note: (500)

$1.99

$

Usually ships in 4-12 days

0

26

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

27

Ariens 03237751

CHUTE STRAP

Note: (501)

$

$

Not available

28

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (501)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 53208400

CHUTE, DISCHARGE W/CAP & DECAL

$

$

Not available

30

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

31

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

32

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

33

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
