932309 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Speed Selector And Frame Parts Diagram

24" Snow Blower, 8hp Tecumseh

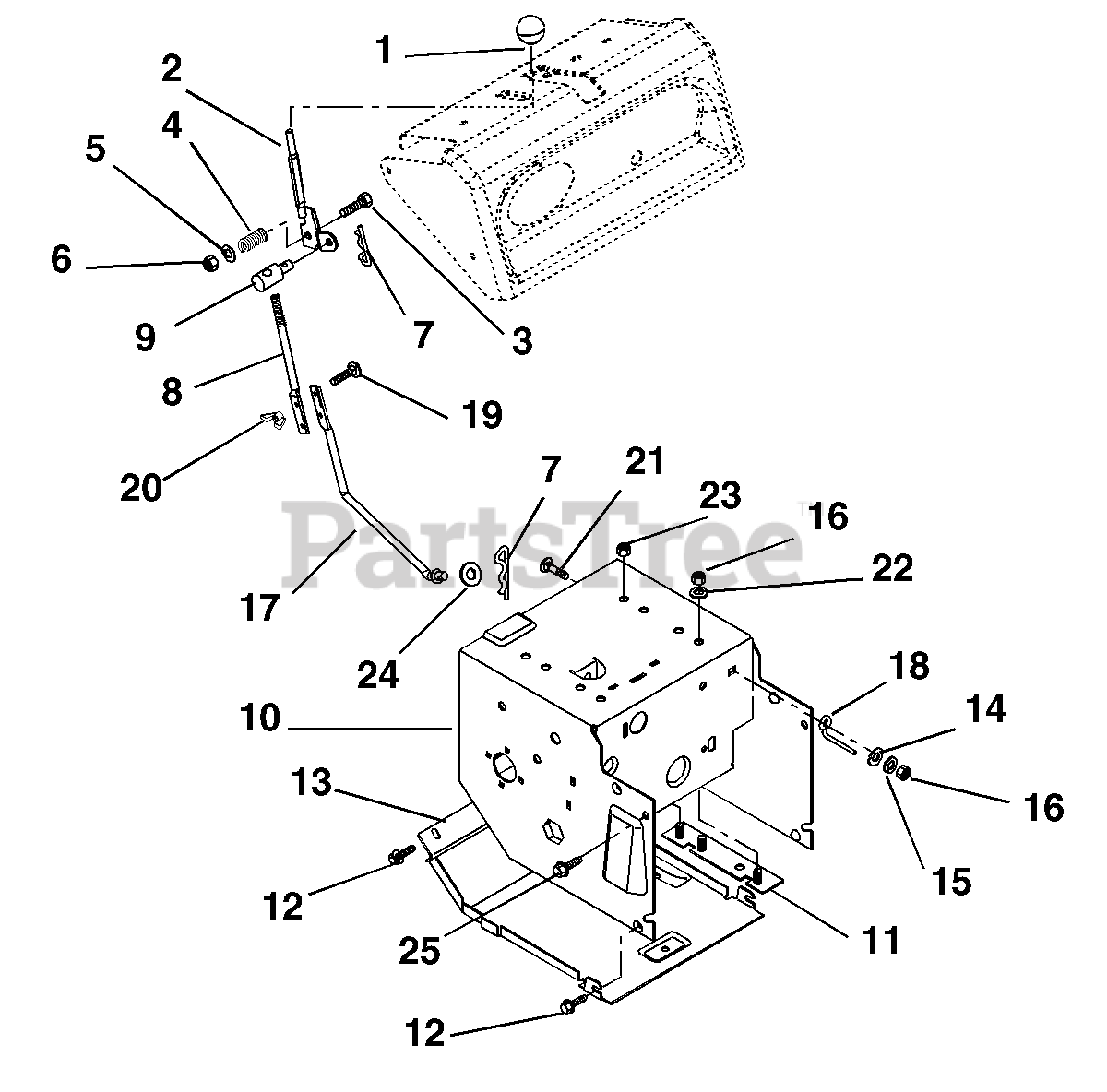

Speed Selector And Frame Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

2

Ariens 02492551

LEVER, SHIFT
(Superseded to 03247900)

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

5

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 02492800

ROD, SHIFT-UPPER

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

10

Ariens 03240559

FRAME

$179.99

$

Usually ships in 4-12 days

0

11

Ariens 03233800

ENGINE MOUNT, 5L,7L,8R

$

$

Not available

Ariens 03233900

ENGINE MOUNT, 5R,7R,8L

$

$

Not available

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03232459

COVER BOTTOM

$52.99

$

In Stock, Qty 7

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (Models 035, 503)

$0.99

$

In Stock, Qty 10

0

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (Models 101, 309)

$0.99

$

In Stock, Qty 10

0

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Models 101, 309)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03239500

ROD, SHIFT-LOWER

$77.99

$

Usually ships in 4-12 days

0

18

Ariens 03236300

BELT FINGER LOWER

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

20

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

21

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (Models 035, 503)

$0.99

$

In Stock, Qty 20+

0

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (Models 101, 309)

$0.99

$

In Stock, Qty 20+

0

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (Models 101, 309)

$0.99

$

In Stock, only 3 left!

0

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

Note: (Models 101, 309)

$1.49

$

In Stock, only 2 left!

0

23

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
