932307 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

24" Snow Blower, 7hp Tecumseh

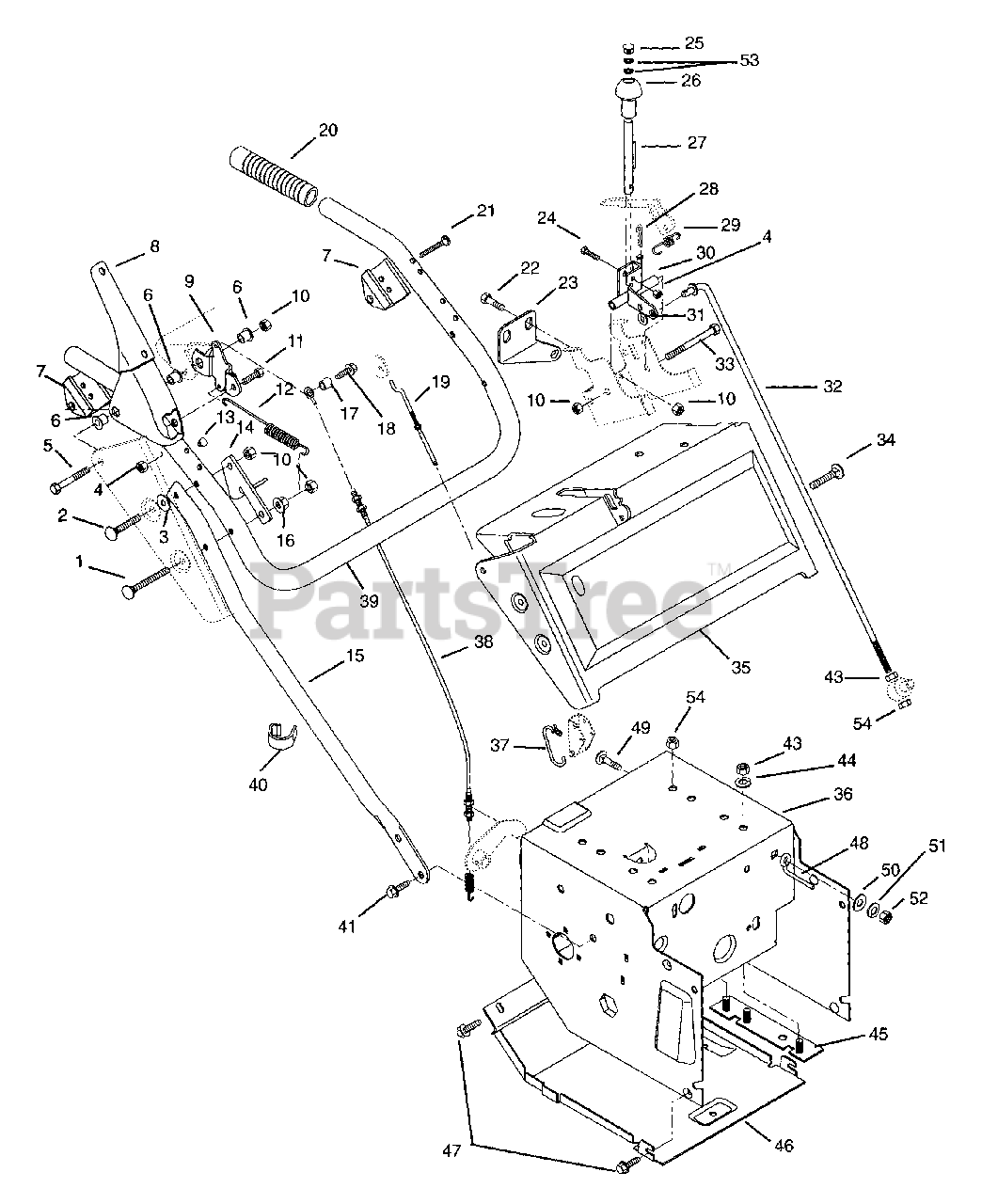

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$2.99

$

In Stock, only 4 left!

0

2

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

7

Ariens 02464700

HANDLE PIVOT

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 02462100

CLUTCH LEVER - COATED
(Superseded to 02474543)

$51.99

$

In Stock, only 1 left!

0

9

Ariens 03229700

ARM

$

$

Not available

10

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05947600

BLT-HEX .25-20X.38 YWZC GR5

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 08325500

SG-TENS .051X.50X5.12 WLD 10.4
(Superseded to 08335400)

$15.99

$

In Stock, Qty 14

0

13

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 03227900

UPPER CABLE ANCHOR R H
(Superseded to 03227951)

$

$

Not available

15

Ariens 03228000

L H LOWER HANDLEBAR
(Superseded to 03228051)

$

$

Not available

Ariens 03228100

R H LOWER HANDLEBAR

$

$

Not available

16

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03232200

SPACER .230X.310X.255

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

19

Ariens 06906800

CABLE, ADJUSTABLE

$

$

Not available

20

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 07411800

SCR-TAP 12-24X1.50 CROVH YZ BT

$

$

Not available

22

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

23

Ariens 03228500

CHUTE CRANK BRACKET
(Superseded to 03228551)

$

$

Not available

24

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

25

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 16

0

26

Ariens 07509600

KNOB

$

$

Not available

27

Ariens 02444800

ROD
(Superseded to 02444851)

$83.99

$

Usually ships in 4-12 days

0

28

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 08318400

SG-TENS .055X.33X1.31 WLD 7

$10.99

$

In Stock, only 1 left!

0

30

Ariens 02462600

PIVOT

$

$

Not available

31

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 03232100

SHIFT ROD

$41.99

$

Usually ships in 4-12 days

0

33

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

34

Ariens 06213900

BLT-RDHDSQSHK .31-18X1.75 YWZC
(Superseded to 06200335)

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 53208600

PANEL W/DECAL

$

$

Not available

36

Ariens 03231459

FRAME

$

$

Not available

37

Ariens 03230100

LINK

$31.99

$

Usually ships in 4-12 days

0

38

Ariens 06925300

CLUTCH CABLE-ATTACHMENT

$45.99

$

Usually ships in 4-12 days

0

39

Ariens 02462951

UPPER HANDLEBAR

$270.99

$

Usually ships in 4-12 days

0

40

UNKNOWN

$

$

Not available

41

Ariens 07049700

BLT-SERHFWH .312-18X.625 YWZC
(Superseded to 07047100)

$1.49

$

Usually ships in 4-12 days

0

43

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

44

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 03233800

ENGINE MOUNT, 5L,7L,8R

$

$

Not available

Ariens 03233900

ENGINE MOUNT, 5R,7R,8L

$

$

Not available

46

Ariens 03232459

COVER BOTTOM

$52.99

$

In Stock, Qty 8

0

47

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 03236300

BELT FINGER LOWER

$5.99

$

Usually ships in 4-12 days

0

49

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

53

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

54

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
