932307 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Friction Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

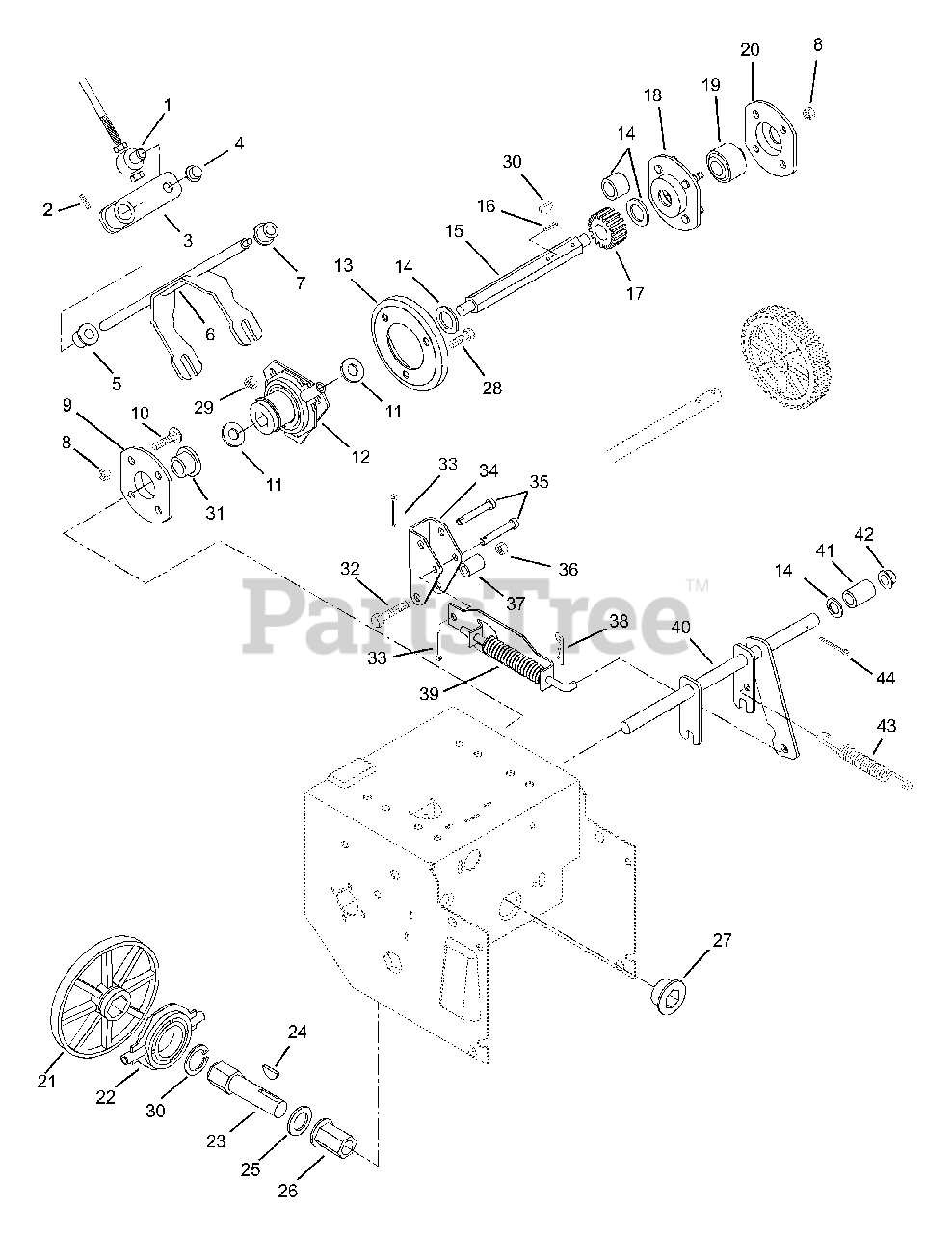

Friction Drive Parts Diagram

  • Title

1

Ariens 01124100

SWIVEL

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 11

0

3

Ariens 03231800

ARM-SPEED CHANGE

$

$

Not available

4

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 15

0

5

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 19

0

6

Ariens 03231700

FORK-SPEED

$129.99

$

In Stock, only 4 left!

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 8

0

9

Ariens 03201400

BUSHING FLANGE

$22.99

$

In Stock, only 2 left!

0

10

Ariens 06214200

BLT-RDHDSQSHK #10-24X.38 GR2YW

$0.99

$

In Stock, Qty 10

0

11

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03235300

SHIFT CARRIER

$82.99

$

In Stock, only 1 left!

0

13

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$39.99

$

In Stock, Qty 20+

0

14

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03207300

HEX SHAFT

$31.99

$

Usually ships in 4-12 days

0

16

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 9

0

17

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

18

Ariens 00308500

BEARING FLANGE

$22.99

$

In Stock, only 1 left!

0

19

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

20

Ariens 03226900

BEARING FLANGE

$18.99

$

Usually ships in 4-12 days

0

21

Ariens 03201100

FRICTION PLATE

$75.99

$

In Stock, Qty 6

0

22

Ariens 03225900

BEARING ASSEMBLY

$82.99

$

In Stock, only 4 left!

0

23

Ariens 03200700

HEX SHAFT

$68.99

$

Usually ships in 4-12 days

0

24

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

25

Ariens 06417300

WSHR, THRUST .625X1.125X.063

$9.49

$

In Stock, only 1 left!

0

26

Ariens 05512000

BSHG-FLG .625X.875X1.750X1.188

$18.99

$

In Stock, Qty 5

0

27

Ariens 05512100

BSHG-FLG .875X1.25X.75X1.50HX

$14.99

$

In Stock, Qty 6

0

28

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

31

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 20+

0

32

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

33

Ariens 06707400

@PIN-CTR .09X.50 EXTPRSQCT YWZ

$0.99

$

Usually ships in 4-12 days

0

34

Ariens 03220600

BRACKET

$57.99

$

Usually ships in 4-12 days

0

35

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

36

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03222500

SPACER -SPLIT .340X.490X1.02

$

$

Not available

38

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 53205500

TRACTION CLUTCH ASSY

$

$

Not available

40

Ariens 03221100

CLUTCH FORK

$82.99

$

Usually ships in 4-12 days

0

41

Ariens 03231500

SPACER .504X.748X.321

$

$

Not available

42

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

43

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

44

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0
