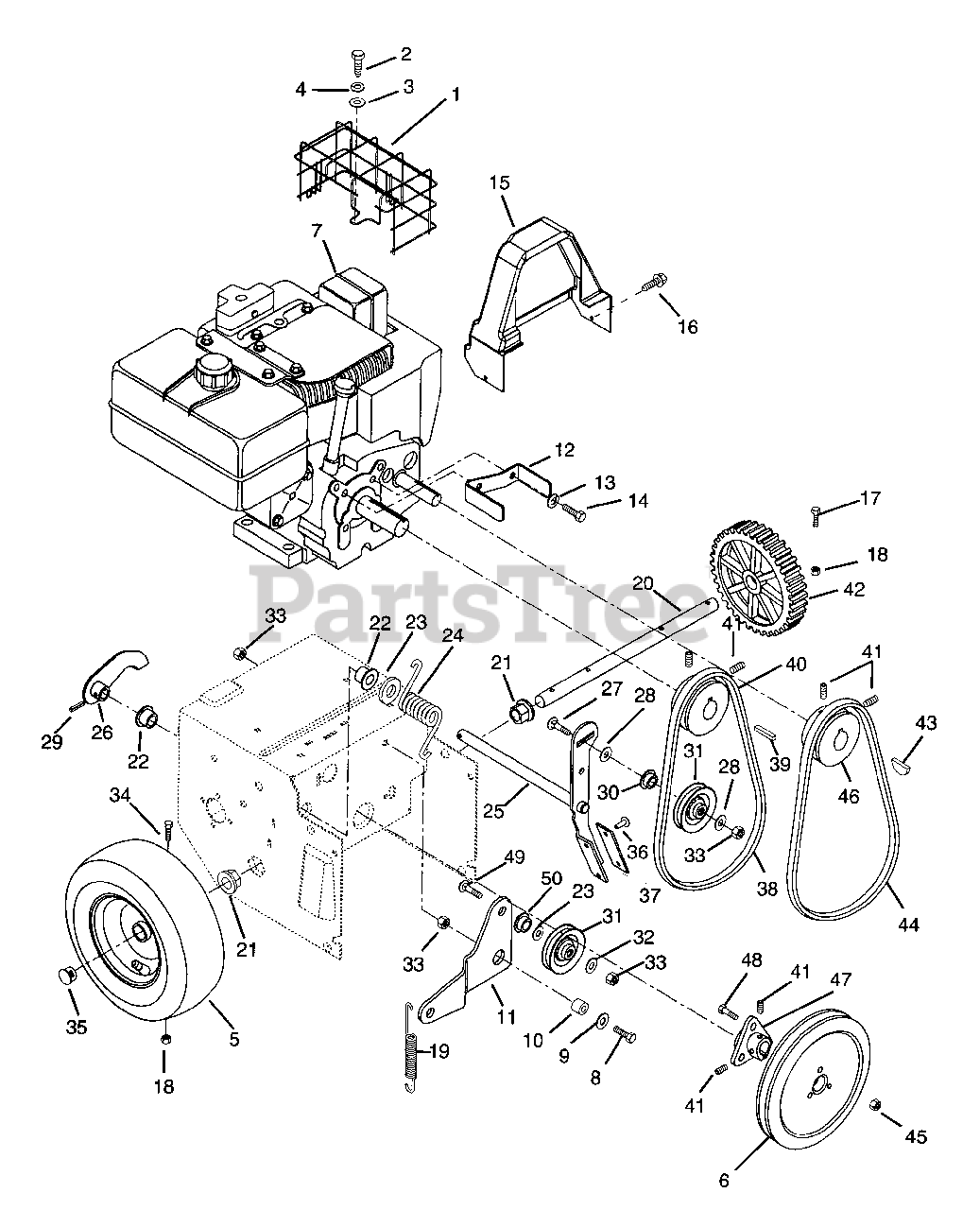

932306 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Belt Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

Belt Drive Parts Diagram

  • Title

1

Ariens 03227000

MUFFLER GUARD 5 HP

Note: (305)

$

$

Not available

2

Ariens 07413600

SCR-TAP 10-16X.75 YWZC

Note: (305)

$

$

Not available

3

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (305)

$0.99

$

Usually ships in 4-12 days

0

4

Ariens 06308100

@WSHR-LK #10X.047 REG YWZC

Note: (305)

$1.49

$

Usually ships in 4-12 days

0

5

Ariens 07105000

TUBE

$11.99

$

Usually ships in 4-12 days

0

5

Ariens 07148500

WHEEL -

$55.99

$

Usually ships in 4-12 days

0

5

Ariens 07121300

TIRE
(Superseded to 07160000)

$79.99

$

In Stock, only 2 left!

0

5

Ariens 07148400

TIRE/WHEEL ASSY

$74.99

$

In Stock, Qty 10

0

6

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

$

$

Not available

7

Ariens 08254900

5HP TECUMSEH

Note: (031,305)

$

$

Not available

7

Ariens 08255000

7HP TECUMSEH OHV REGENCY

Note: (033,306)

$

$

Not available

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 03206900

IDLER ARM

$25.99

$

Usually ships in 4-12 days

0

12

Ariens 03229000

BELT FINGER
(Superseded to 03229051)

Note: (031,305)

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 03238100

FINGER, BELT
(Superseded to 03238151)

Note: (032)

$38.99

$

Usually ships in 4-12 days

0

13

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03238000

COVER, BELT

$44.99

$

In Stock, only 3 left!

0

16

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05953000

BLT-HEX .25-20X1.75 GR8 YWZC

Note: (031,033,305)

$9.49

$

In Stock, only 1 left!

0

18

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 6

0

20

Ariens 03235800

AXLE SHAFT

$94.99

$

Usually ships in 4-12 days

0

21

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, Qty 20+

0

22

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

23

Ariens 06439600

WSHR-FL-STL .520X.810X.033YWZC

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 08322000

SG-TORS .148X1.0X1.53

$

$

Not available

25

Ariens 53205100

CLUTCH ARM W/BRAKE PAD

$65.99

$

Usually ships in 4-12 days

0

26

Ariens 03231900

ARM-CLUTCH
(Superseded to 03231951)

$77.99

$

Usually ships in 4-12 days

0

27

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

30

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

31

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

32

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05953000

BLT-HEX .25-20X1.75 GR8 YWZC

$9.49

$

In Stock, only 1 left!

0

35

Ariens 07508700

HOLE PLUG

$

$

Not available

36

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 13

0

37

Ariens 03229100

BRAKE LINING

$15.99

$

In Stock, only 1 left!

0

38

Ariens 07234000

V-BELT, 4L-RAW EDGE

Note: (031,305)

$29.99

$

In Stock, Qty 12

0

38

Ariens 07232500

V-BELT, 4L-RAW EDGE

Note: (033,306)

$28.99

$

In Stock, Qty 5

0

39

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

40

Ariens 03225000

SHEAVE-ENGINE

Note: (031,305)

$

$

Not available

40

Ariens 03229200

SHEAVE - ENGINE

Note: (033,306)

$129.99

$

Usually ships in 4-12 days

0

41

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

42

Ariens 03226000

GEAR

$51.99

$

In Stock, only 4 left!

0

43

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

44

Ariens 07210600

V-BELT, 3L-COGGED

Note: (031,305)

$35.99

$

In Stock, Qty 16

0

44

Ariens 07210700

V-BELT, 3L-COGGED

Note: (033,306)

$29.99

$

In Stock, Qty 20+

0

45

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 03228400

SHEAVE - CAMSHAFT

$103.99

$

Usually ships in 4-12 days

0

47

Ariens 03205000

HUB

$

$

Not available

48

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

49

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0
