932305 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 000700 & Above) Discharge Chute Parts Diagram

24" Snow Blower, 5hp Tecumseh

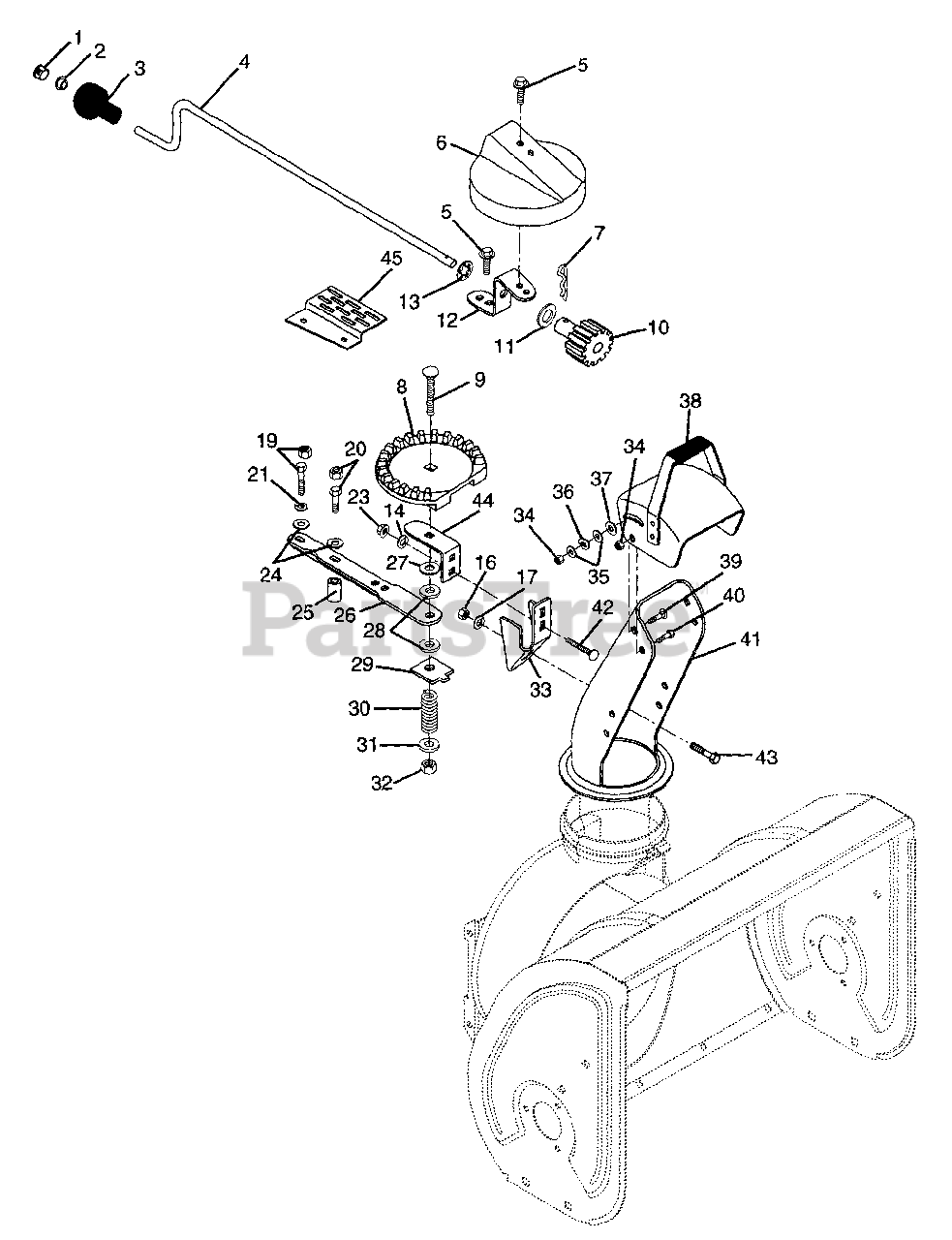

Discharge Chute Parts Diagram

  • Title
1

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 16

0

2

Ariens 05711300

RG-RTNG-EXT .375X.010

$0.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, Qty 7

0

4

Ariens 03228600

CHUTE CRANK

$86.99

$

Usually ships in 4-12 days

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03223000

GEAR COVER

$12.99

$

In Stock, only 3 left!

0

7

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 20+

0

9

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

10

Ariens 03223900

PINION-CHUTE
(Superseded to 53214200)

$48.99

$

In Stock, Qty 9

0

11

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03220500

BRACKET-GEAR
(Superseded to 53214200)

$48.99

$

In Stock, Qty 9

0

13

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 13

0

14

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

17

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (031,305)

$1.49

$

In Stock, Qty 20+

0

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (033,306)

$0.99

$

In Stock, Qty 10

0

20

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

Note: (031,305)

$1.49

$

In Stock, Qty 20+

0

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (033,306)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

24

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 03221800

SPACER .280X.625X.760

Note: (031,305)

$14.99

$

Usually ships in 4-12 days

0

26

Ariens 03237900

BRACE, CHUTE CONTROL

Note: (033,306)

$

$

Not available

Ariens 03220400

STRAP-CHUTE CONTROL

Note: (031,305)

$

$

Not available

27

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

28

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

29

Ariens 03219000

FRICTION PLATE

$27.99

$

In Stock, only 3 left!

0

30

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 18

0

31

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 03237700

CHUTE STRAP
(Superseded to 03237751)

$

$

Not available

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

36

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

37

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

38

Ariens 53207800

RAKE, RIGHT-24"(.75ID X 10.88)

$327.99

$

In Stock, only 1 left!

0

39

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

40

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

41

Ariens 03237600

DISCHARGE CHUTE

$

$

Not available

42

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

43

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 03220700

GEAR STRAP
(Superseded to 03220751)

$27.99

$

Usually ships in 4-12 days

0

45

Ariens 03230400

MUFFLER SHIELD
(Superseded to 03230451)

$5.99

$

Usually ships in 4-12 days

0
