932305 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 000101 - 000699) Auger/Impeller Housing Parts Diagram

24" Snow Blower, 5hp Tecumseh

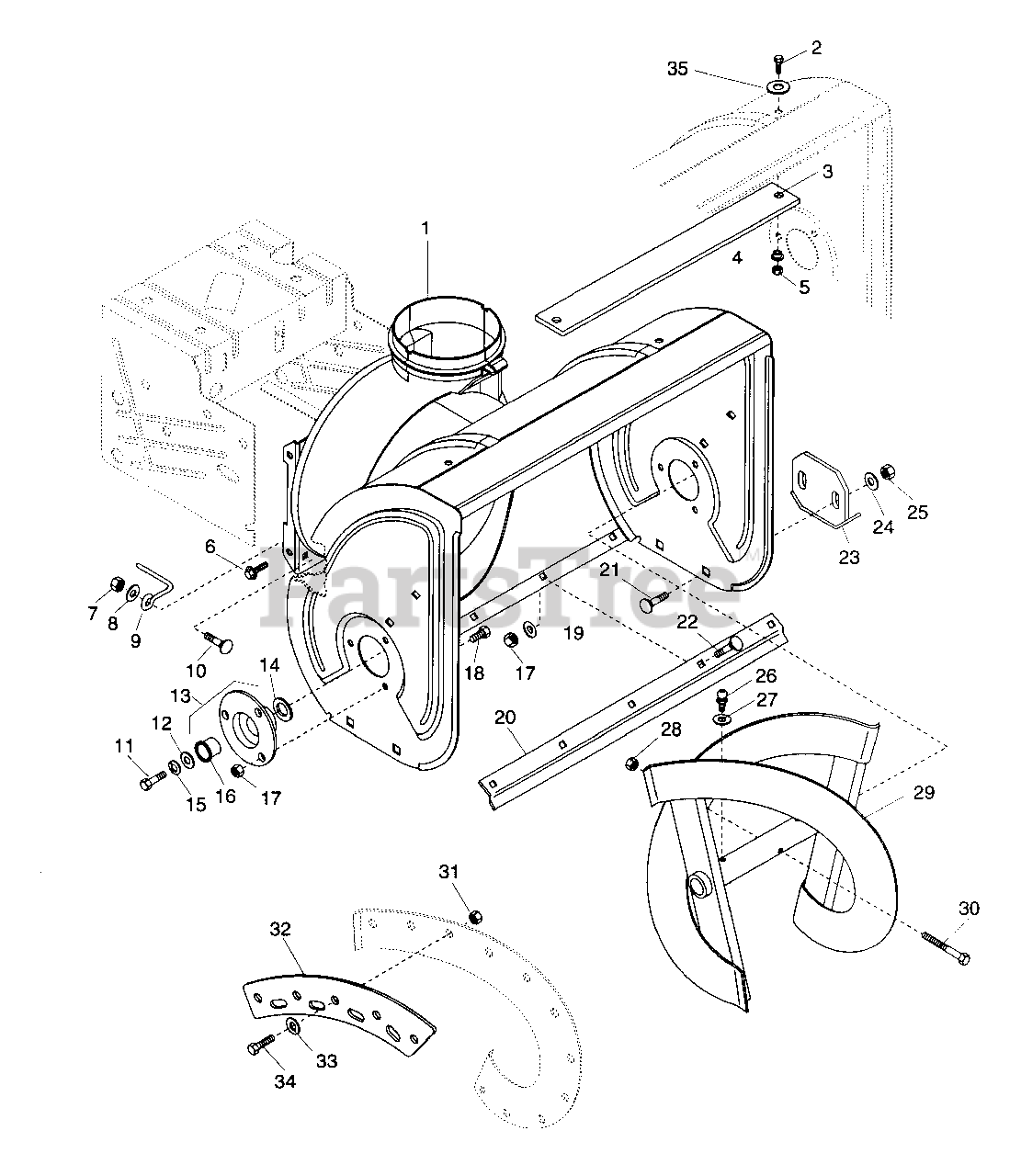

Auger/Impeller Housing Parts Diagram

  • Title

1

Ariens 53203600

AUGER/IMPELLER HOUSING 20" ST2

Note: (030)

$

$

Not available

1

Ariens 53203700

AUGER/IMPELLER HOUSING 24"
(Superseded to 53209200)

Note: (031, 032, 304, 305)

$724.99

$

In Stock, only 1 left!

0

2

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

Note: (304)

$2.49

$

In Stock, Qty 12

0

3

Ariens 03233500

WEIGHT-AUGER/IMPELLER HSG

Note: (304)

$

$

Not available

4

Ariens 05521700

BSHG-FLG .325X.500X.70X.875

Note: (304)

$

$

Not available

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (304)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

Note: (304)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

Note: (304)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (304)

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 03234300

BELT FINGER

Note: (304)

$

$

Not available

10

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

Note: (304)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

12

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 53203100

BEARING FLANGE ASSEMBLY

$51.99

$

Usually ships in 4-12 days

0

14

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

17

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (030)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03208100

SCRAPER BLADE
(Superseded to 03208159)

Note: (031, 032, 304, 305)

$34.99

$

In Stock, Qty 20+

0

20

Ariens 03707200

SCRAPER BLADE
(Superseded to 09183851)

Note: (030)

$15.99

$

In Stock, Qty 6

0

21

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

Note: (031, 032, 304, 305)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06208600

BLT-RDHDSQNK .25-20X.50
(Superseded to 06220600)

Note: (030)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

Note: (031, 032, 304, 305)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 02459900

RUNNER
(Superseded to 02483859)

Note: (031, 032, 304, 305)

$19.99

$

In Stock, Qty 20+

0

24

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (031, 032, 304, 305)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

Note: (031, 028, 304, 305)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

27

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

28

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 53201600

RAKE, RIGHT-24"(.75ID X 10.88)
(Superseded to 53207800)

Note: (031, 032, 304, 305)

$327.99

$

In Stock, only 1 left!

0

29

Ariens 53201700

RAKE, LEFT-24(.75ID X 10.88OD)
(Superseded to 53207900)

Note: (031, 032, 304, 305)

$

$

Not available

29

Ariens 53204100

RAKE, RIGHT-20(.75ID X 10.5OD)

Note: (030)

$

$

Not available

29

Ariens 53204200

RAKE, LEFT-20"(.75ID X 10.5OD)
(Superseded to 53208100)

Note: (030)

$

$

Not available

30

Ariens 53200500

SHEAR BOLT WITH NUT

$2.99

$

In Stock, Qty 20+

0

31

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

32

Ariens 53201800

RAKE EDGE W/HARDWARE

Note: (030)

$155.99

$

Usually ships in 4-12 days

0

33

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

Note: (030)

$1.99

$

Usually ships in 4-12 days

0

34

Ariens 06107400

SCR-MCH 10-24X.63 HEX PL
(Superseded to 05944800)

Note: (030)

$

$

Not available

35

Ariens 06413000

WSHR-FL-STL .406X1.000X.188 PL
(Superseded to 06444000)

Note: (304)

$2.49

$

In Stock, Qty 20+

0
