932304 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Belt Drive Parts Diagram

24" Snow Blower, 8hp Tecumseh

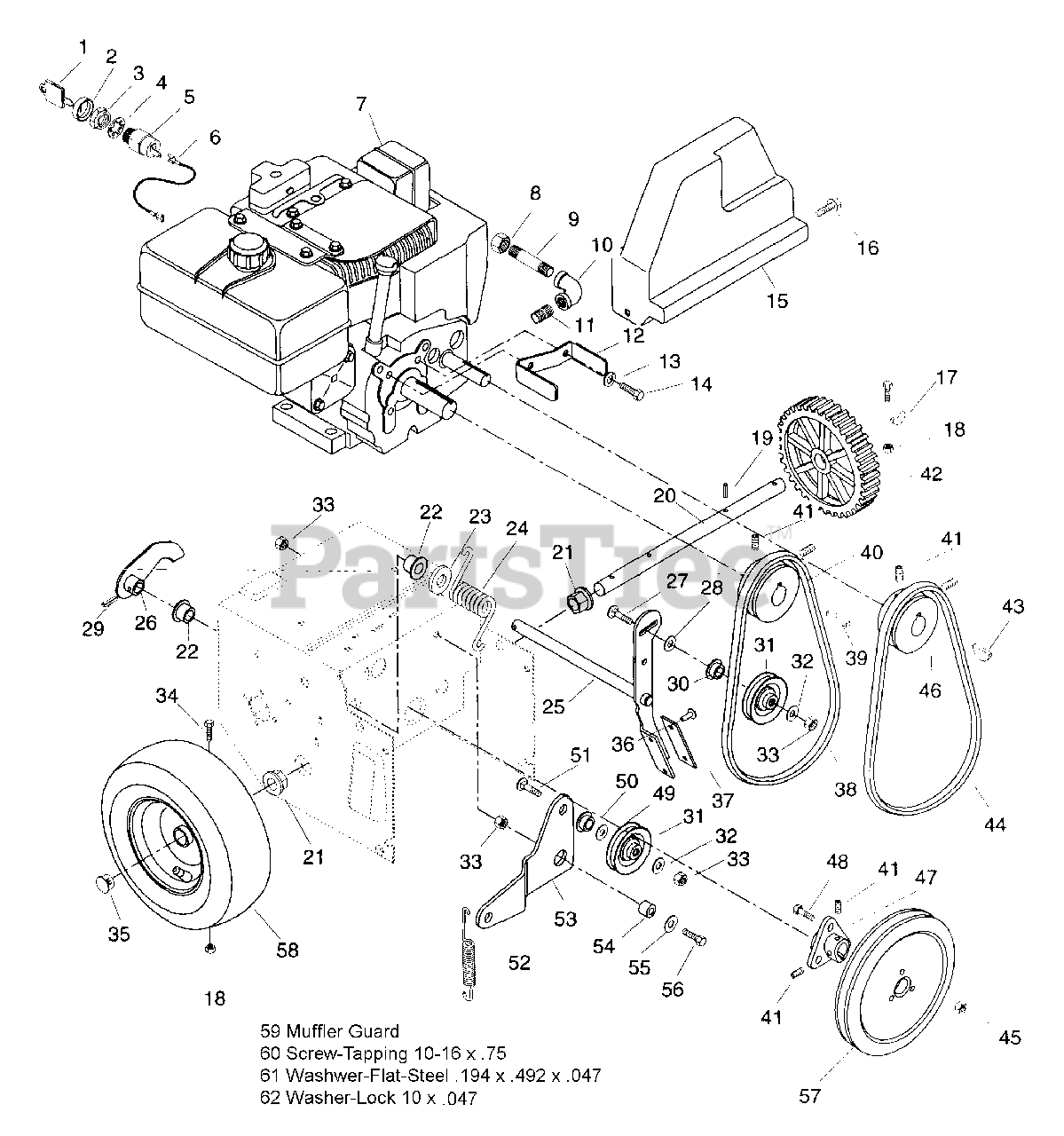

Belt Drive Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 9

0

3

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

4

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03216800

SWITCH
(Superseded to 53204700)

$59.99

$

In Stock, only 1 left!

0

6

Ariens 03222400

WIRE

Note: Order engine and parts from engine manufacturer's dealer

$

$

Not available

7

Ariens 08227400

ENGINE-HSSK 50 TEC W/PTO

Note: (031, 305)

$

$

Not available

7

Ariens 08228800

ENGINE 7 HP W/PTO

Note: (032)

$

$

Not available

7

Ariens 08238800

ENGINE 8HP W/PTO - TEC.

Note: (304)

$

$

Not available

8

Ariens 02520800

HEX CAP

$

$

Not available

9

Ariens 01222200

NIPPLE

Note: (031, 304, 305)

$

$

Not available

10

Ariens 01048500

STREET ELBOW

Note: (031, 304, 305)

$

$

Not available

11

Ariens 02520700

NIPPLE

Note: (032)

$

$

Not available

12

Ariens 03229000

BELT FINGER
(Superseded to 03229051)

Note: (031, 305)

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 03228900

BELT FINGER

Note: (032)

$51.99

$

Usually ships in 4-12 days

0

12

Ariens 03233300

BELT FINGER
(Superseded to 03236051)

Note: (304)

$

$

Not available

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03232300

BELT COVER
(Superseded to 03238000)

$44.99

$

In Stock, only 3 left!

0

16

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05923300

BLT-HEX .25-20X2.25 PL GR8
(Superseded to 05952700)

Note: (031, 032, 305)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

Note: (304)

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

Note: (031, 032, 305)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

Note: (304)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05800300

PIN-ROLL .188X1.25

Note: (304)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03235800

AXLE SHAFT

Note: (031, 032, 305)

$94.99

$

Usually ships in 4-12 days

0

20

Ariens 03233000

SHAFT-AXLE

Note: (304)

$

$

Not available

21

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, Qty 20+

0

22

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

23

Ariens 06410400

WSHR-FL-STL .520X.810X.033
(Superseded to 06439600)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 08322000

SG-TORS .148X1.0X1.53

$

$

Not available

25

Ariens 53205100

CLUTCH ARM W/BRAKE PAD

$65.99

$

Usually ships in 4-12 days

0

26

Ariens 03231900

ARM-CLUTCH
(Superseded to 03231951)

$77.99

$

Usually ships in 4-12 days

0

27

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 19

0

28

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

30

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

31

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

32

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05919100

BLT-HEX .25-20X1.75 GR 8
(Superseded to 05952700)

$3.99

$

In Stock, only 2 left!

0

35

Ariens 07508700

HOLE PLUG

$

$

Not available

36

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

37

Ariens 03229100

BRAKE LINING

$15.99

$

In Stock, only 2 left!

0

38

Ariens 07234000

V-BELT, 4L-RAW EDGE

Note: (031, 305)

$29.99

$

In Stock, Qty 14

0

38

Ariens 07219200

V-BELT, 4L-RAW EDGE

Note: (032, 304)

$44.99

$

In Stock, only 1 left!

0

39

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

40

Ariens 03225000

SHEAVE-ENGINE

Note: (031, 305)

$

$

Not available

40

Ariens 03229200

SHEAVE - ENGINE

Note: (032, 304)

$129.99

$

Usually ships in 4-12 days

0

41

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

42

Ariens 03226000

GEAR

Note: (031, 032, 305)

$51.99

$

In Stock, only 4 left!

0

42

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

Note: (304)

$90.99

$

Usually ships in 4-12 days

0

43

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

44

Ariens 07210600

V-BELT, 3L-COGGED

Note: (031, 305)

$35.99

$

In Stock, Qty 16

0

44

Ariens 07215700

V-BELT, 3L-COGGED

Note: (032)

$29.99

$

In Stock, only 3 left!

0

44

Ariens 07225200

BELT,3L 36.42 RAW LAM C-L2089
(Superseded to 07231000)

Note: (304)

$27.99

$

In Stock, Qty 10

0

45

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 03228400

SHEAVE - CAMSHAFT

Note: (031, 305)

$103.99

$

Usually ships in 4-12 days

0

46

Ariens 03224900

SHEAVE-CAMSHAFT

Note: (032)

$

$

Not available

46

Ariens 03232700

PULLEY-CAMSHAFT

Note: (304)

$129.99

$

Usually ships in 4-12 days

0

47

Ariens 03205000

HUB

$

$

Not available

48

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

49

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

50

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

51

Ariens 06209600

BLT-RDHDSQNK .31-18X1.12 GR5PL
(Superseded to 06219200)

$3.99

$

Usually ships in 4-12 days

0

52

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 6

0

53

Ariens 03206900

IDLER ARM

$25.99

$

Usually ships in 4-12 days

0

54

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

55

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

56

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

57

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

$

$

Not available

58

Ariens 07105000

TUBE

$11.99

$

Usually ships in 4-12 days

0

58

Ariens 07124400

WHL-COMP 3.5 X 6
(Superseded to 07148500)

$55.99

$

Usually ships in 4-12 days

0

58

Ariens 07121300

TIRE
(Superseded to 07160000)

$79.99

$

In Stock, only 2 left!

0

58

Ariens 07124200

T/WHL ASSY
(Superseded to 07148400)

$74.99

$

In Stock, Qty 10

0

59

Ariens 03227000

MUFFLER GUARD 5 HP

Note: (305), Not shown

$

$

Not available

60

Ariens 07403300

SCR-TAP 10-16X .75 HWH PL SD
(Superseded to 07413600)

Note: (305), Not shown

$

$

Not available

61

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

Note: (305), Not shown

$1.99

$

Usually ships in 4-12 days

0

62

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (305), Not shown

$1.49

$

Usually ships in 4-12 days

0
