932101 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Engine And Belt Drive - 824 Parts Diagram

24" Snow Blower, 8hp Tecumseh

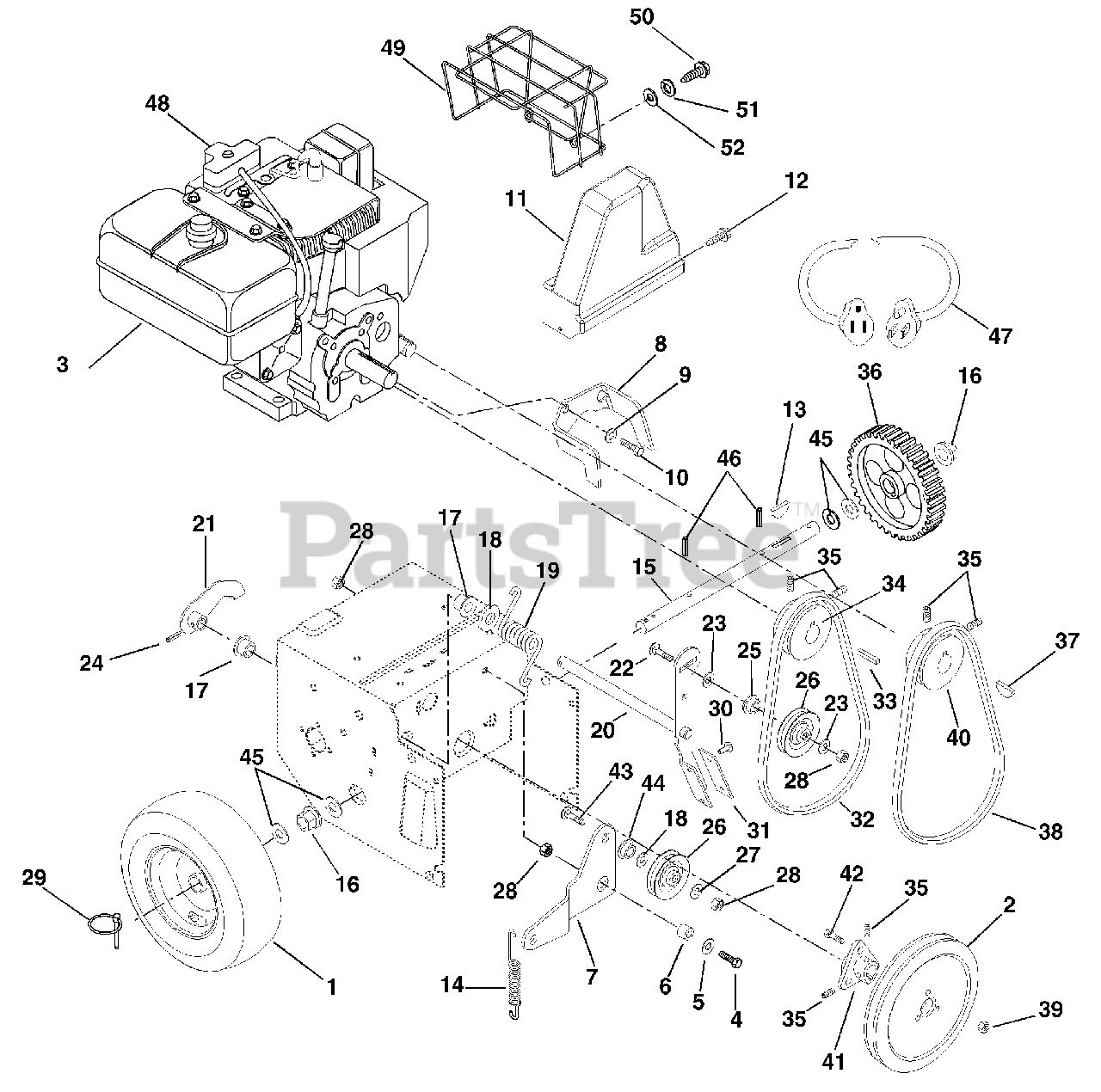

Engine And Belt Drive - 824 Parts Diagram

  • Title

1

Ariens 07155800

WHEEL 5.00 X 6.00
(Superseded to 07100024)

$74.99

$

Usually ships in 4-12 days

0

1

Ariens 07155900

TIRE 15 X 5.00-6 2P SNOWHOG
(Superseded to 07100815)

$54.99

$

Usually ships in 4-12 days

0

1

Ariens 07155700

TIRE/WHEEL ASSY, 15 X 5.00-6

$

$

Not available

1

Ariens 07156400

TUBE 15 X 5.00-6

$20.99

$

In Stock, only 2 left!

0

2

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

$

$

Not available

3

Ariens 08262300

ENGINE, 8HP LH TEC. - 120V

Note: (Model 101)

$

$

Not available

3

Ariens 08262400

ENGINE, 8HP LH TEC. - 220V

Note: (Model 309)

$

$

Not available

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 03206900

IDLER ARM

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 03238151

FINGER, BELT

$38.99

$

Usually ships in 4-12 days

0

9

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03238000

COVER, BELT

$44.99

$

In Stock, only 3 left!

0

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

14

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 6

0

15

Ariens 03239800

SHAFT, AXLE

$72.99

$

Usually ships in 4-12 days

0

16

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, Qty 20+

0

17

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

18

Ariens 06439600

WSHR-FL-STL .520X.810X.033YWZC

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 08322000

SG-TORS .148X1.0X1.53

$

$

Not available

20

Ariens 53205100

CLUTCH ARM W/BRAKE PAD

Note: (Includes items 30 & 31)

$65.99

$

Usually ships in 4-12 days

0

21

Ariens 03231951

ARM-CLUTCH

$77.99

$

Usually ships in 4-12 days

0

22

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

25

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

26

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

27

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

30

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

31

Ariens 03229100

BRAKE LINING

$15.99

$

In Stock, only 2 left!

0

32

Ariens 07234000

V-BELT, 4L-RAW EDGE

$29.99

$

In Stock, Qty 14

0

33

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

34

Ariens 03239700

SHEAVE, ENGINE-BLOWER

$168.99

$

Usually ships in 4-12 days

0

35

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

36

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

$90.99

$

Usually ships in 4-12 days

0

37

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

38

Ariens 07231000

V-BELT, 3L-RAW EDGE

Note: (Traction Drive)

$27.99

$

In Stock, Qty 10

0

39

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 03232700

PULLEY-CAMSHAFT

$129.99

$

Usually ships in 4-12 days

0

41

Ariens 03205000

HUB

$

$

Not available

42

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

43

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

44

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

45

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

47

Ariens 02483100

CORD, ELECTRIC START CORD 120V

Note: (Model 101)

$35.99

$

In Stock, only 3 left!

0

48

Ariens 72403600

120 V STARTER KIT- 8 TO 11.5HP

Note: (Model 101)

$400.99

$

Usually ships in 4-12 days

0

48

Ariens 72402200

240V. ELECTRIC START

Note: (Model 309)

$

$

Not available

49

Ariens 02460200

MUFFLER GUARD 8 & 10 HP

Note: (Model 309)

$103.99

$

In Stock, only 1 left!

0

50

Ariens 07413600

SCR-TAP 10-16X.75 YWZC

Note: (Model 309)

$

$

Not available

51

Ariens 06308100

@WSHR-LK #10X.047 REG YWZC

Note: (Model 309)

$1.49

$

Usually ships in 4-12 days

0

52

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (Model 309)

$0.99

$

Usually ships in 4-12 days

0
