932050 (ST 20 E) - Ariens Crossover 20" Snow Blower, Ariens AX 179cc engine (SN: 001551 & Above) Idler Parts Diagram

Crossover 20" Snow Blower, Ariens AX 179cc engine

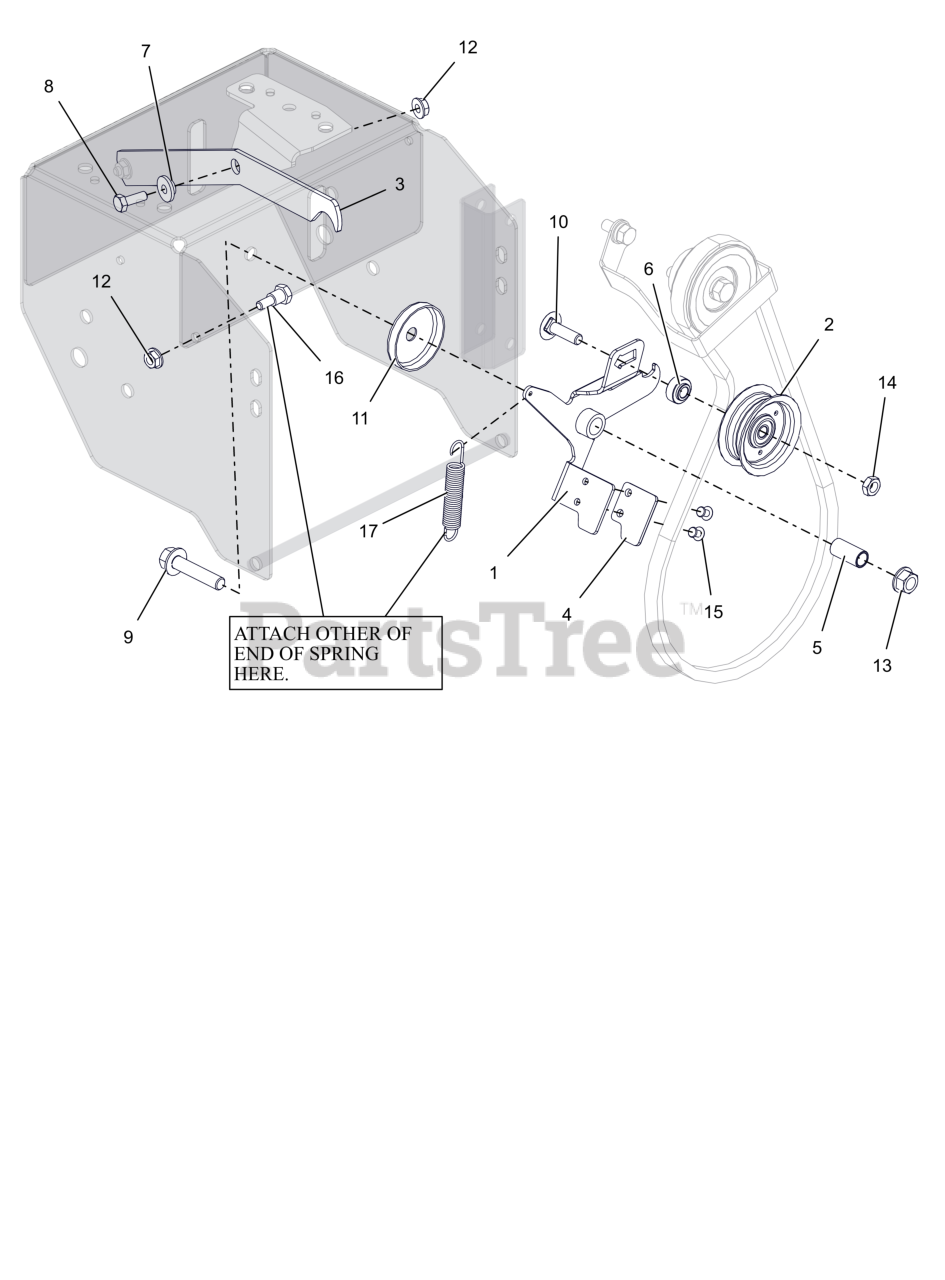

Idler Parts Diagram

  • Title

1

Ariens 53216900

WLDMT, IDLER ARM ATTACHMENT

$

$

Not available

2

Ariens 07338900

IDLER, FLAT - 2.00"

$22.99

$

In Stock, only 1 left!

0

3

Ariens 09157600

LEVER, IDLER ARM ENGAGEMENT

$64.99

$

Usually ships in 4-12 days

0

4

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 7

0

5

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

6

Ariens 05501115

SPCR, BRG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05901719

BLT,HEX-FLG .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

10

Ariens 06200334

BLT, RHSSN .31-18X1.125 G5 ZCC

$

$

Not available

11

Ariens 05290100

SHIELD, AXLE BEARING

$

$

Not available

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500913

NUT-LK-CTR-JAM .312-18 GB ZCC

$0.99

$

In Stock, only 3 left!

0

15

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 7

0

16

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

17

Ariens 08300516

SPRING,EXT,.061X.50X3.0

$14.99

$

In Stock, only 2 left!

0
