932050 (ST 20 E) - Ariens Crossover 20" Snow Blower, Ariens AX 179cc engine (SN: 001551 & Above) Engine and Frame Parts Diagram

Crossover 20" Snow Blower, Ariens AX 179cc engine

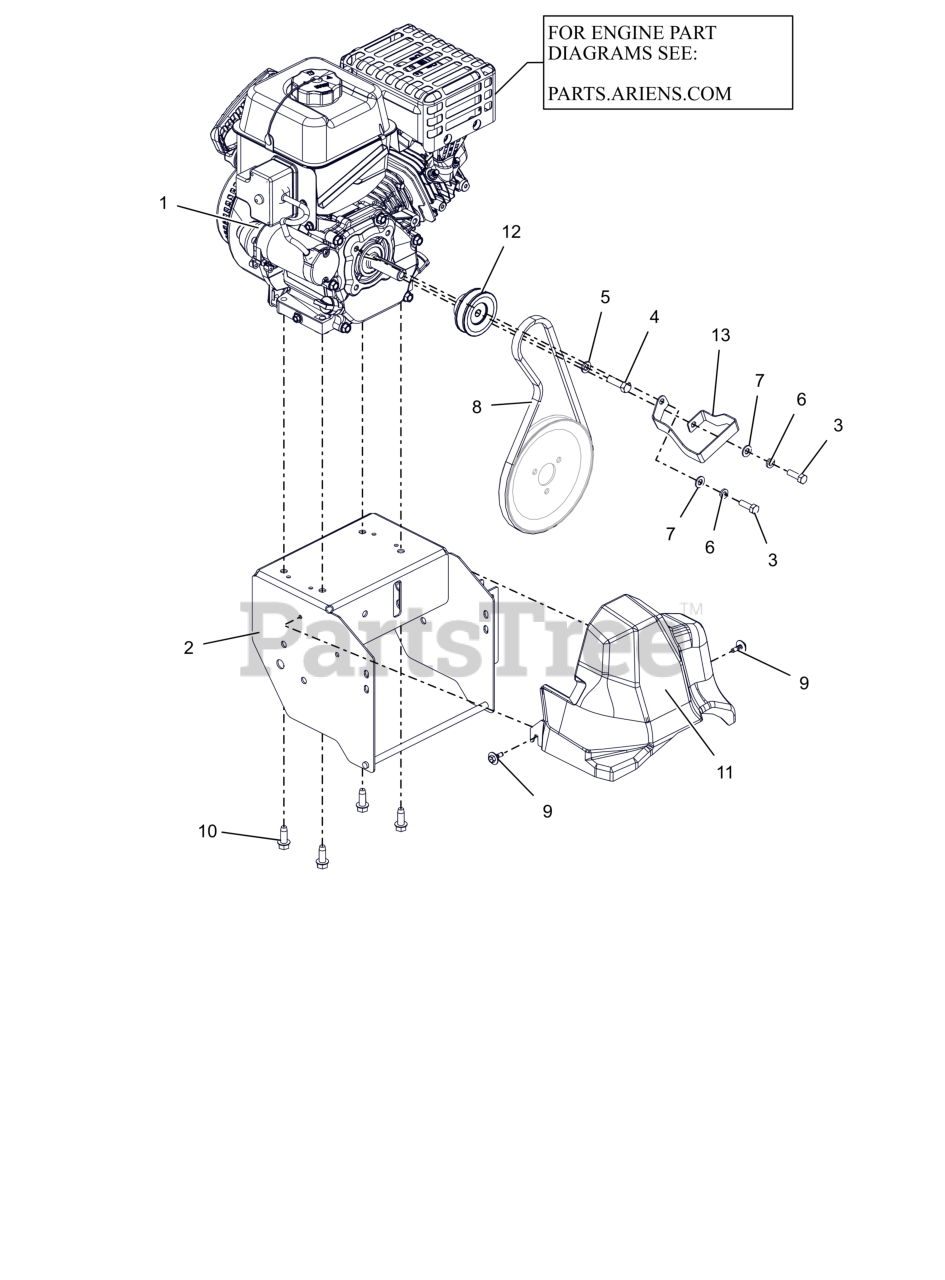

Engine and Frame Parts Diagram

  • Title

1

Ariens 08201406

Engine, AX179 120v Gen II

$

$

Currently unavailable

2

Ariens 09154959

WLDMT, FRAME (ORANGE)

$98.99

$

Usually ships in 4-12 days

0

3

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$

$

Not available

4

Ariens 05902016

BLT, HEX .38-24X1.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 07200840

V-BELT, 4L RAW EDGE CNA EPDM
(Superseded to 07200912)

$31.99

$

In Stock, only 1 left!

0

9

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 07417500

SCR-TAP .38-16X1.00 HWH TR ZCC

$3.99

$

In Stock, only 2 left!

0

11

Ariens 09157000

COVER, BELT - CROSSOVER

$19.99

$

Usually ships in 4-12 days

0

12

Ariens 09157200

SHEAVE, ENGINE SINGLE GRV

$25.99

$

Usually ships in 4-12 days

0

13

Ariens 09157300

FINGER, BELT
(Superseded to 09393400)

$45.99

$

Usually ships in 4-12 days

0
