932050 (ST 20 E) - Ariens Crossover 20" Snow Blower, Ariens AX 179cc engine (SN: 001551 & Above) Chute Control Parts Diagram

Crossover 20" Snow Blower, Ariens AX 179cc engine

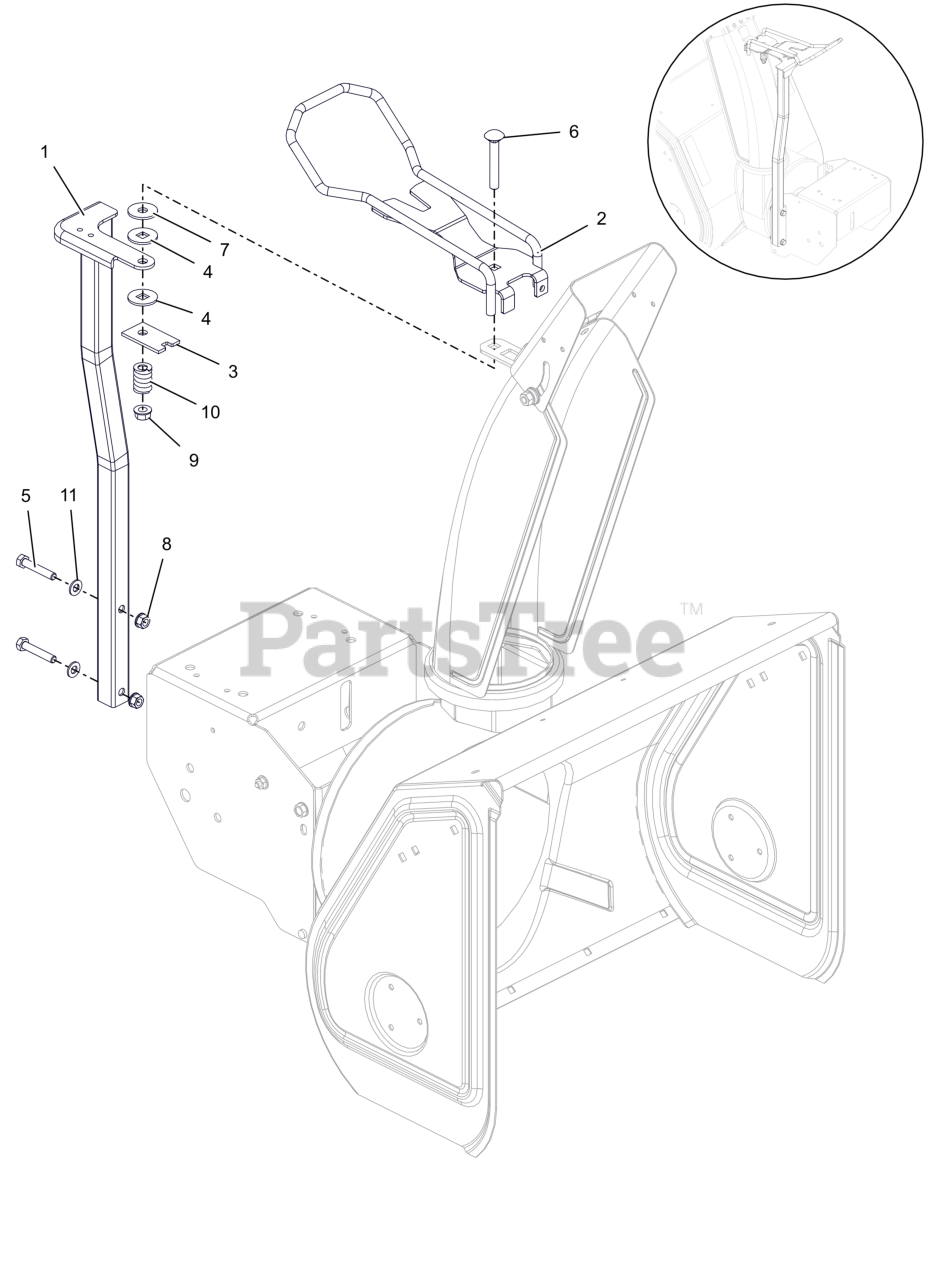

Chute Control Parts Diagram

  • Title
1

Ariens 09157951

WLDMT, PEDESTAL CHUTE MANUAL (BLACK)

$54.99

$

Usually ships in 4-12 days

0

2

Ariens 09158051

WLDMT, CHUTE ROTATION LEVER (BLACK)

$70.99

$

Usually ships in 4-12 days

0

3

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 10

0

4

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

5

Ariens 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$2.99

$

In Stock, Qty 8

0

6

Ariens 06200234

BLT,RHSN .38-16X2.50 G5 ZCC

$3.99

$

In Stock, Qty 18

0

7

Ariens 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 17

0

11

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
