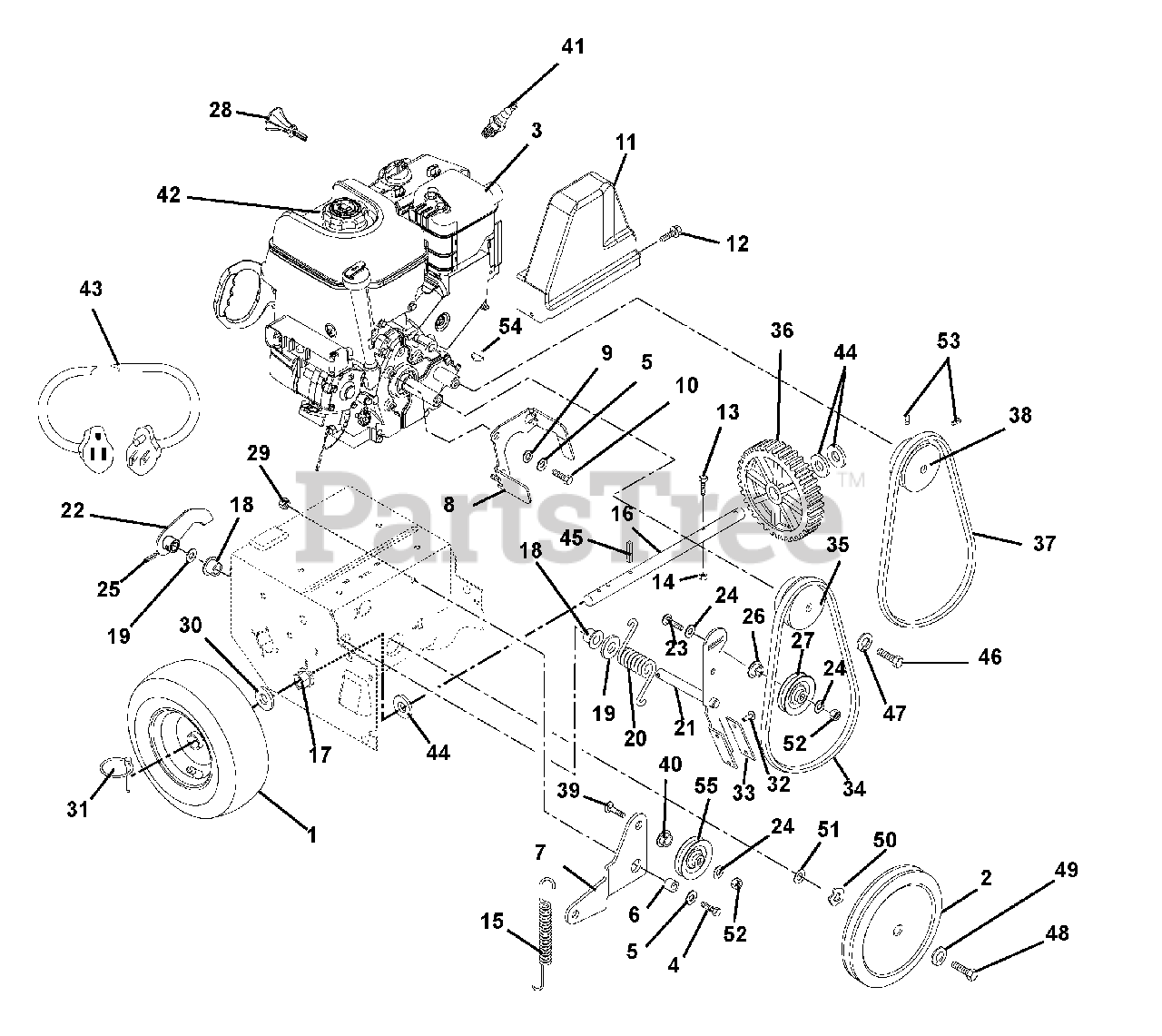

932044 (ST 7524 E) - Ariens 24" Snow Blower, 7.5hp Briggs & Stratton (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

24" Snow Blower, 7.5hp Briggs & Stratton

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100037

TIRE/WHEEL, LH 13X4.00-6 PIN
(Superseded to 53215900)

$

$

Not available

Ariens 07100036

TIRE/WHEEL, RH 13X4.00-6 PIN
(Superseded to 53215800)

$103.99

$

Usually ships in 4-12 days

0

Ariens 07100038

TIRE, 2PR X-TRAC TL 13X4.00-6

$

$

Not available

Ariens 07100012

WHEEL, 4.1-6

$

$

Not available

Ariens 07105000

TUBE

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 00272400

PULLEY, 3L W/HUB, .625 X 8.0

$

$

Not available

3

Ariens 08200110

ENGINE,5.5HP 120V PWRBILT SNOW

Note: (Engine Model No. 12R193) (043)

$

$

Not available

Ariens 08200111

ENGINE,7.5HP 120V PWRBILT SNOW

Note: (Engine Model No. 12D193) (044)

$

$

Not available

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 03206900

IDLER ARM

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 00483451

FINGER, BELT

$

$

Not available

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05900012

BLT-HEX .31-24X1.0 GR5 YZ EP80
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00447300

BELT COVER

$

$

Not available

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05953000

BLT-HEX .25-20X1.75 GR8 YWZC

$9.49

$

In Stock, only 1 left!

0

14

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 8

0

16

Ariens 00289300

AXLE SHAFT, COMPACT W/PIN LOCK

$77.99

$

Usually ships in 4-12 days

0

17

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, Qty 20+

0

18

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06439600

WSHR-FL-STL .520X.810X.033YWZC

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 08322000

SG-TORS .148X1.0X1.53

$

$

Not available

21

Ariens 53205100

CLUTCH ARM W/BRAKE PAD

$65.99

$

Usually ships in 4-12 days

0

22

Ariens 03231951

ARM-CLUTCH

$77.99

$

Usually ships in 4-12 days

0

23

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 11

0

26

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

27

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

28

Ariens 07500012

KEY, IGNITION PUSH/PULL B&S

$13.99

$

Usually ships in 4-12 days

0

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

33

Ariens 03229100

BRAKE LINING

$15.99

$

In Stock, only 3 left!

0

34

Ariens 07219100

BELT,4L TO BE REPLACED07200021
(Superseded to 07200021)

$45.99

$

In Stock, Qty 17

0

35

Ariens 00279100

SHEAVE, ENGINE

$117.99

$

Usually ships in 4-12 days

0

36

Ariens 03226000

GEAR

$51.99

$

In Stock, Qty 6

0

37

Ariens 07200106

V-BELT, 3L-COGGED

$

$

Not available

38

Ariens 03228400

SHEAVE - CAMSHAFT

$103.99

$

Usually ships in 4-12 days

0

39

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

40

Ariens 05500102

BSHG-FLG .320X.671X.575X.895

$

$

Not available

41

Ariens 21534100

PLUG, SPARK

$3.49

$

In Stock, Qty 20+

0

42

Ariens 07500013

CAP, FUEL - BRIGGS

$17.99

$

In Stock, only 2 left!

0

43

Ariens 02483100

CORD, ELECTRIC START CORD 120V

$35.99

$

In Stock, only 3 left!

0

44

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

45

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

46

Ariens 05900009

BLT-HEX .38-24X1.0 GR5 YZ EP80
(Superseded to 05960300)

$2.99

$

In Stock, only 1 left!

0

47

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 05900010

BLT-HEX .25-28X.75 GR5 YZ EP80
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

49

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

50

Ariens 06400007

WSHR-WAVE .69X.84X.011

$2.49

$

In Stock, only 1 left!

0

51

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

52

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 5

0

53

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 15

0

54

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

55

Ariens 07300032

IDLER-FLAT 1.75"X .670 PLASTIC

$

$

Not available
