932042 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

24" Snow Blower, 6hp Tecumseh

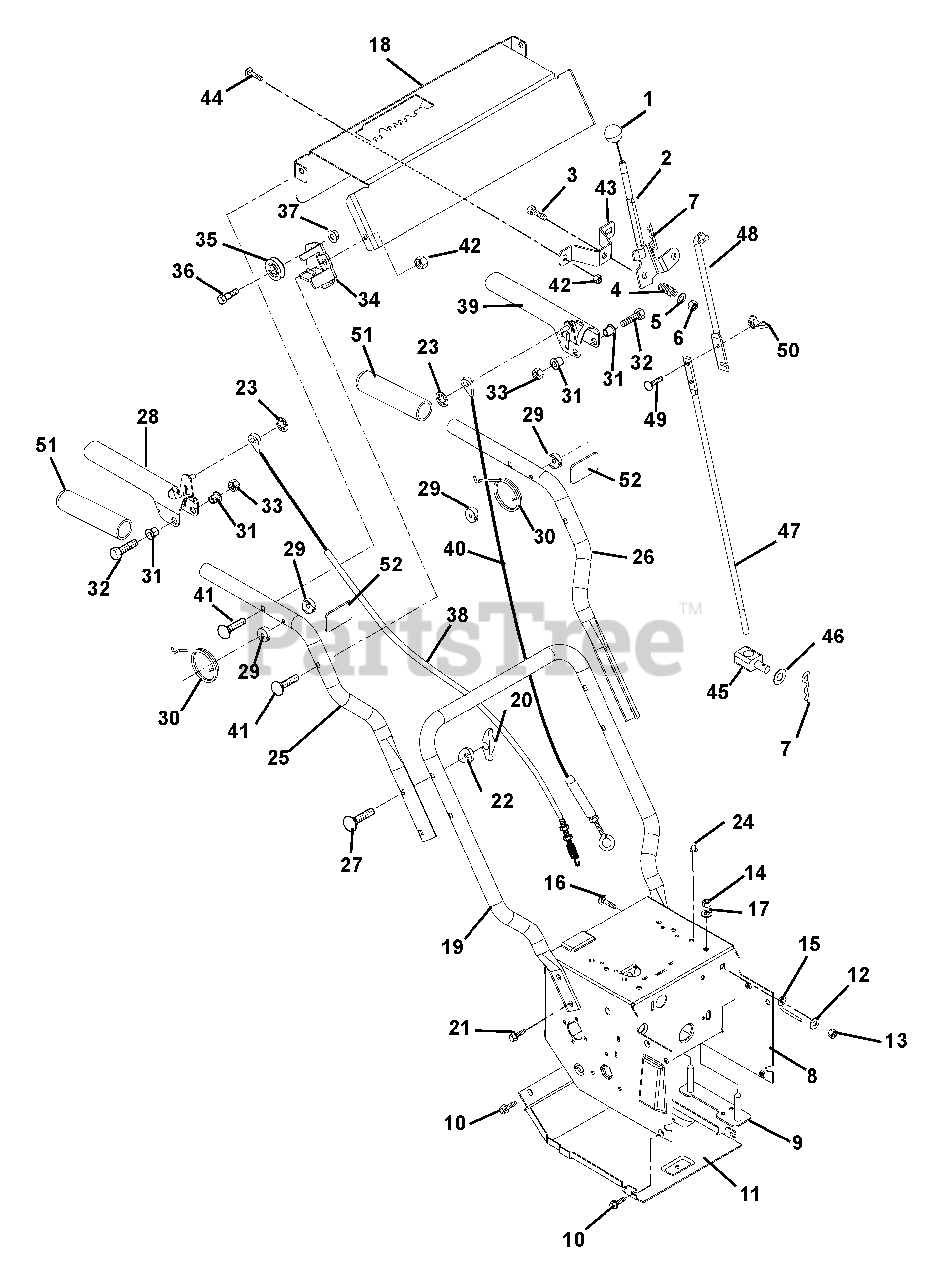

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

2

Ariens 03247900

WMT, SHIFT LEVER

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

5

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 00397359

WELDMENT, FRAME - COMPACT SNOW

$

$

Not available

9

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$

$

Not available

10

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03232459

COVER BOTTOM

$52.99

$

In Stock, Qty 7

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

15

Ariens 03236300

BELT FINGER LOWER

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 53214300

CONTROL PANEL W/DECAL

$

$

Not available

19

Ariens 00426951

HANDLEBAR, LOWER - COMPACT

$87.99

$

Usually ships in 4-12 days

0

20

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

24

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

25

Ariens 00427051

HANDLEBAR, UPPER - RH COMPACT

$56.99

$

Usually ships in 4-12 days

0

26

Ariens 00427151

HANDLEBAR, UPPER - LH COMPACT

$

$

Not available

27

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 00398351

PADDLE, CLUTCH - RH COMPACT

$25.99

$

In Stock, only 2 left!

0

29

Ariens 05500025

BUSHING, .266 X 1.0 X .375
(Superseded to 53215200)

$24.99

$

In Stock, only 1 left!

0

30

Ariens 00427300

SPRING, TORSION
(Superseded to 53215200)

$24.99

$

In Stock, only 1 left!

0

31

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

32

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 00398700

BRACKET, CABLE MOUNT

$

$

Not available

35

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

36

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

37

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06900022

CABLE, AUGER

$45.99

$

In Stock, Qty 19

0

39

Ariens 00398151

PADDLE, CLUTCH - LH COMPACT

$40.99

$

In Stock, only 2 left!

0

40

Ariens 06900023

CABLE, TRACTION

$34.99

$

Usually ships in 4-12 days

0

41

Ariens 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

42

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 00398451

BRACKET, SHIFT MOUNT

$

$

Not available

44

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

46

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 00423300

ROD, SHIFT - LOWER

$49.99

$

Usually ships in 4-12 days

0

48

Ariens 00399700

ROD, SHIFT - UPPER

$38.99

$

Usually ships in 4-12 days

0

49

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

51

Ariens 07500002

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

52

Ariens 00446700

BUMPER PAD
(Superseded to 07500103)

$3.49

$

Usually ships in 4-12 days

0
