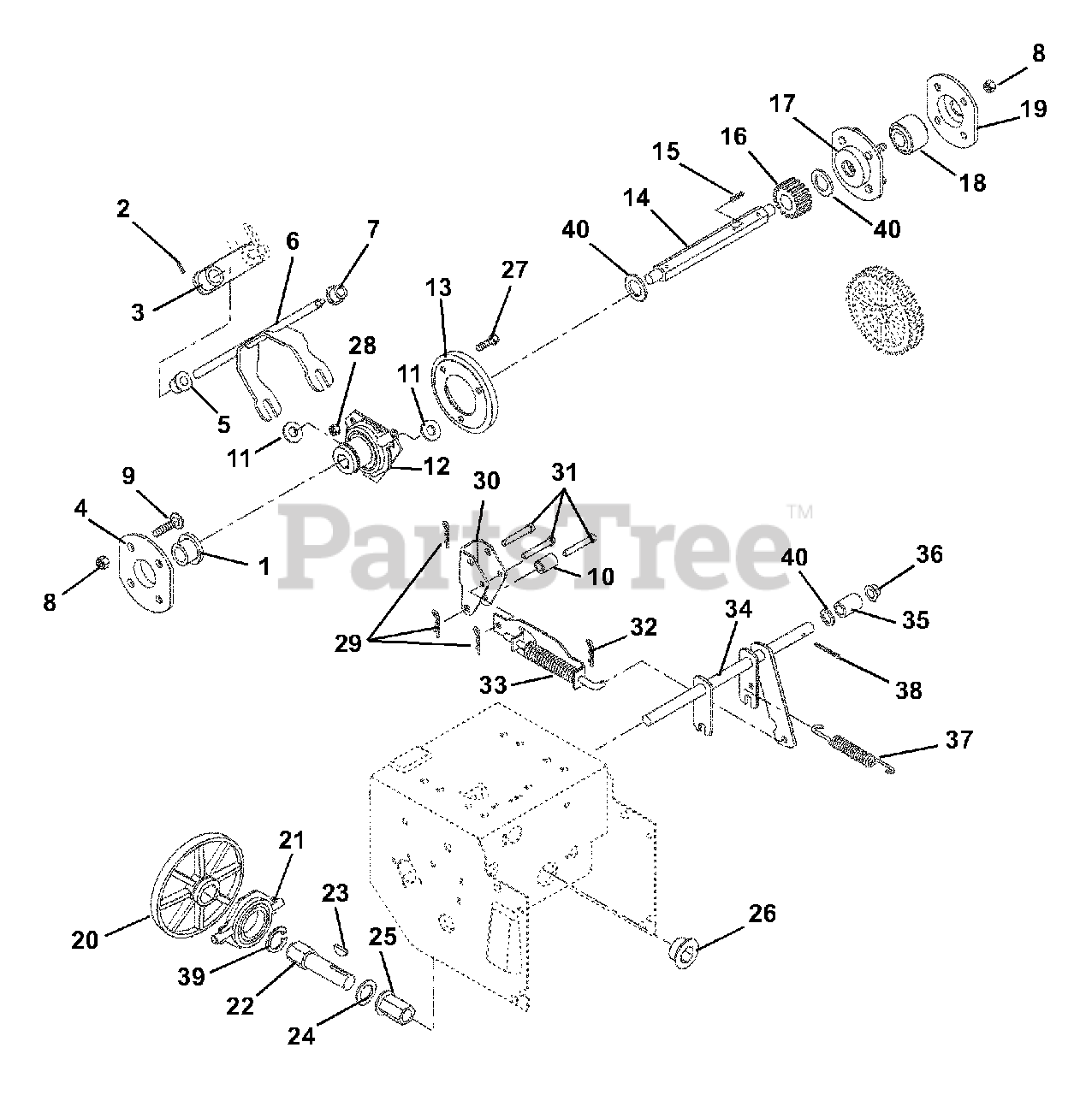

932037 (ST 724 E) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 - 004500) Friction Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

Friction Drive Parts Diagram

  • Title

1

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 20+

0

2

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

3

Ariens 03240151

ARM, SPEED CONTROL

$66.99

$

Usually ships in 4-12 days

0

4

Ariens 53211500

FLANGE AND BUSHING

Note: (Includes Item 1)

$34.99

$

In Stock, only 1 left!

0

5

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

6

Ariens 03231700

FORK-SPEED

$129.99

$

In Stock, only 3 left!

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 8

0

9

Ariens 06214200

BLT-RDHDSQSHK #10-24X.38 GR2YW

$0.99

$

In Stock, Qty 10

0

10

Ariens 03233600

SPACER .322X.626X.50

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03235300

SHIFT CARRIER

$82.99

$

In Stock, only 1 left!

0

13

Ariens 03248300

DISC, FRICTION - 730 MAT'L

$39.99

$

In Stock, Qty 20+

0

14

Ariens 03207300

HEX SHAFT

$31.99

$

Usually ships in 4-12 days

0

15

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 9

0

16

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

17

Ariens 00308500

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

18

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

19

Ariens 03226900

BEARING FLANGE

$18.99

$

Usually ships in 4-12 days

0

20

Ariens 03201100

FRICTION PLATE

$75.99

$

In Stock, Qty 5

0

21

Ariens 03225900

BEARING ASSEMBLY

$82.99

$

In Stock, only 4 left!

0

22

Ariens 03200700

HEX SHAFT

$68.99

$

Usually ships in 4-12 days

0

23

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

24

Ariens 06417300

WSHR, THRUST .625X1.125X.063

$9.49

$

In Stock, only 1 left!

0

25

Ariens 05512000

BSHG-FLG .625X.875X1.750X1.188

$18.99

$

In Stock, only 4 left!

0

26

Ariens 05512100

BSHG-FLG .875X1.25X.75X1.50HX

$14.99

$

In Stock, Qty 6

0

27

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

30

Ariens 03248000

BRACKET, TRACTION ARM

$55.99

$

Usually ships in 4-12 days

0

31

Ariens 06714700

PIN,CLEVIS .243/.248 X 1.38 YZ

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 53205500

TRACTION CLUTCH ASSY

$

$

Not available

34

Ariens 03221100

CLUTCH FORK

$82.99

$

Usually ships in 4-12 days

0

35

Ariens 03231500

SPACER .504X.748X.321

$

$

Not available

36

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

37

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

38

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

39

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

40

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0
