932036 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 000101 - 007999) Gear Case And Impeller Parts Diagram

24" Snow Blower, 5hp Tecumseh

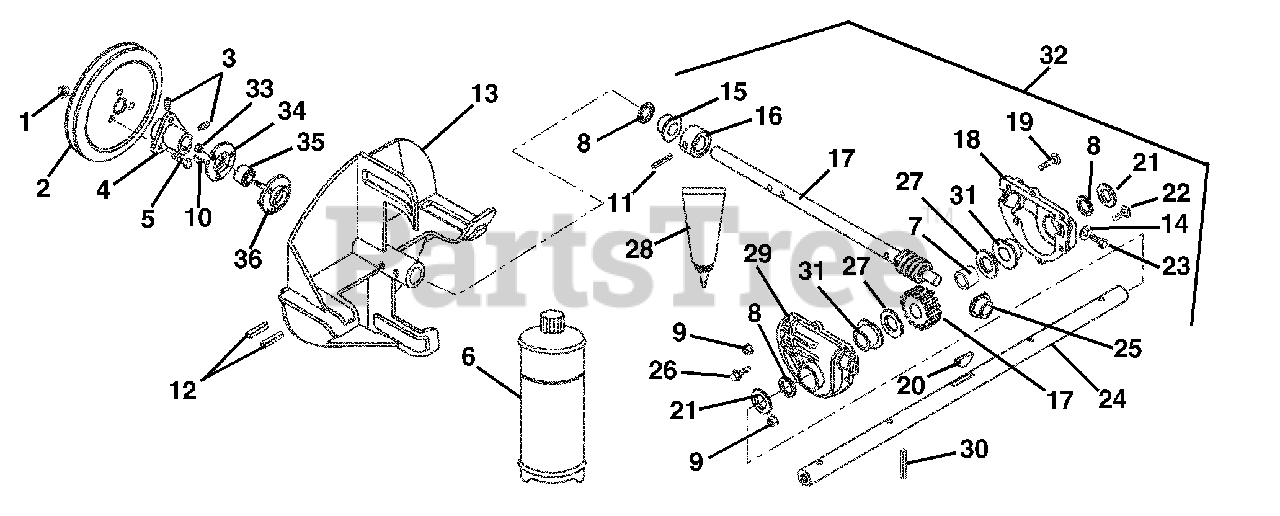

Gear Case And Impeller Parts Diagram

  • Title

1

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 07316300

PLY-V 8.50 X 1.25 3BLT

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

4

Ariens 50202100

HUB ASSEMBLY

Note: (Includes Item 3)

$85.99

$

In Stock, only 1 left!

0

5

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

6

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0

7

Ariens 05531200

BSHG-SLV .755X1.500X.442

$15.99

$

Usually ships in 4-12 days

0

8

Ariens 05618900

SEAL-OIL .750X1.375X.250

$11.99

$

In Stock, Qty 17

0

9

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 7

0

11

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 4 left!

0

12

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

13

Ariens 02423751

FAN - 12", BLACK

$258.99

$

In Stock, only 1 left!

0

14

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, only 2 left!

0

15

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 15

0

16

Ariens 03210300

THRUST COLLAR

$62.99

$

Usually ships in 4-12 days

0

17

Ariens 53200100

SHAFT AND WORM GEAR ASSEMBLY

$119.99

$

In Stock, only 4 left!

0

18

Ariens 02470600

CASE, GEAR-LH-LARGE BORE-ALUM.
(Superseded to 52003300)

$105.99

$

Usually ships in 4-12 days

0

19

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

21

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

23

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03208200

SHAFT, RAKE - 24"

$129.99

$

Usually ships in 4-12 days

0

25

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 6

0

26

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

27

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

28

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$17.99

$

In Stock, Qty 8

0

29

Ariens 02470700

CASE, GEAR-RH-LARGE BORE-ALUM.
(Superseded to 52003300)

$105.99

$

Usually ships in 4-12 days

0

30

Ariens 05806900

PIN-GRV .313X1.44 TP C

$5.99

$

In Stock, only 1 left!

0

31

Ariens 05531100

BSHG-FLG .753X1.127X.500X1.501

$7.99

$

In Stock, only 2 left!

0

32

Ariens 53208200

GEAR CASE - 24" - ALUMINUM

$597.99

$

Usually ships in 4-12 days

0

33

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

35

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 19

0

36

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 9
