932034 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Auger/Impeller Housing Parts Diagram

24" Snow Blower, 7hp Tecumseh

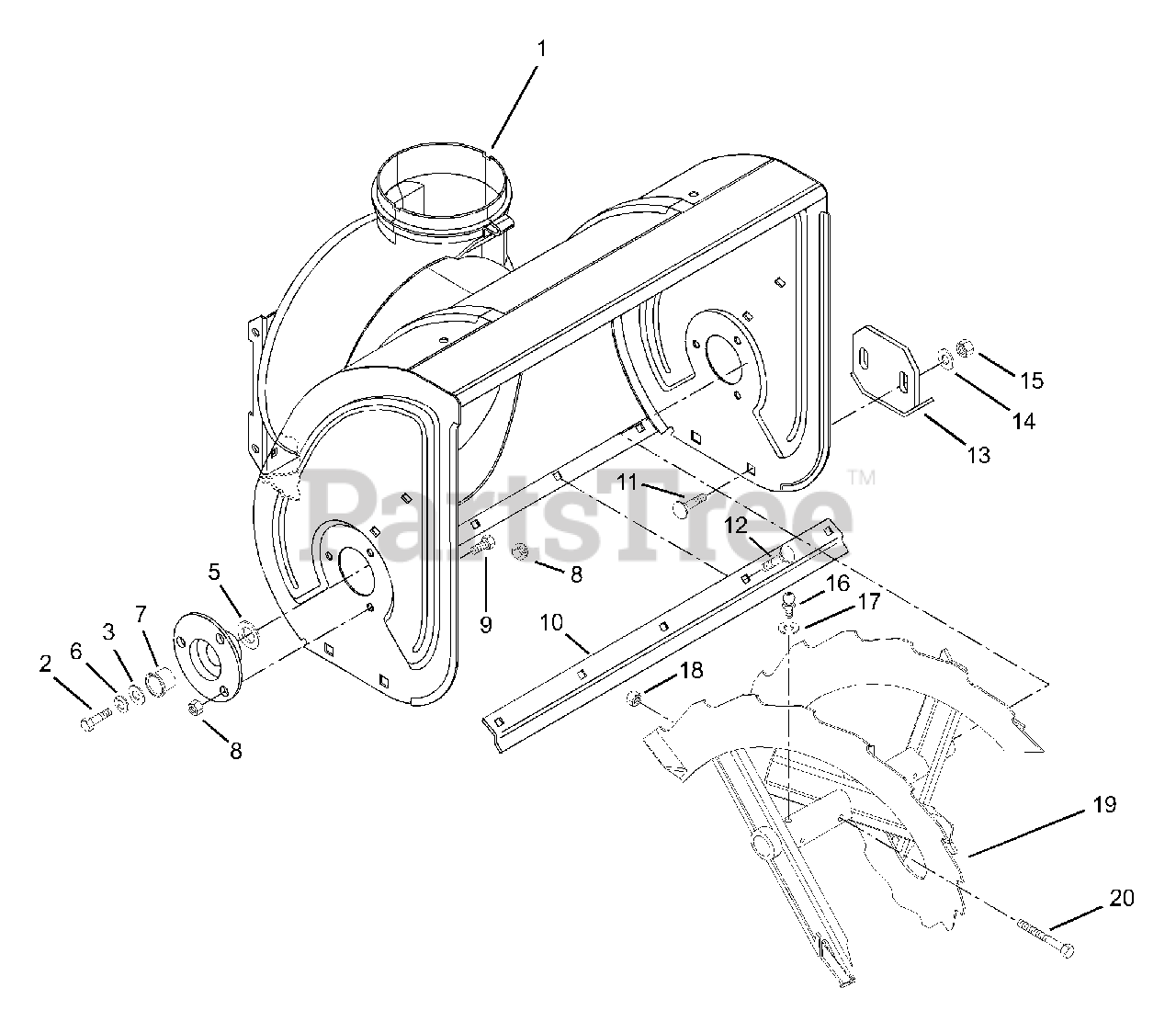

Auger/Impeller Housing Parts Diagram

  • Title
1

Ariens 53203700

AUGER/IMPELLER HOUSING 24"
(Superseded to 53209200)

$724.99

$

In Stock, only 1 left!

0

2

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

3

Ariens 06439700

WSHR-FL-STL .344X1.375X.075YWZ
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

4

Ariens 53203100

BEARING FLANGE ASSEMBLY

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

8

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 20+

0

10

Ariens 03208159

SCRAPER BLADE

$34.99

$

In Stock, Qty 20+

0

11

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02459959

RUNNER
(Superseded to 02483859)

$19.99

$

In Stock, Qty 20+

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

17

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

18

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 53207800

RAKE, RIGHT-24"(.75ID X 10.88)

$327.99

$

In Stock, only 1 left!

0

19

Ariens 53207900

RAKE, LEFT-24(.75ID X 10.88OD)

$

$

Not available

20

Ariens 53200500

SHEAR BOLT WITH NUT

$2.99

$

In Stock, Qty 20+

0
