932026 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 000101 - 005999) Handlebars And Controls Parts Diagram

24" Snow Blower, 5hp Tecumseh

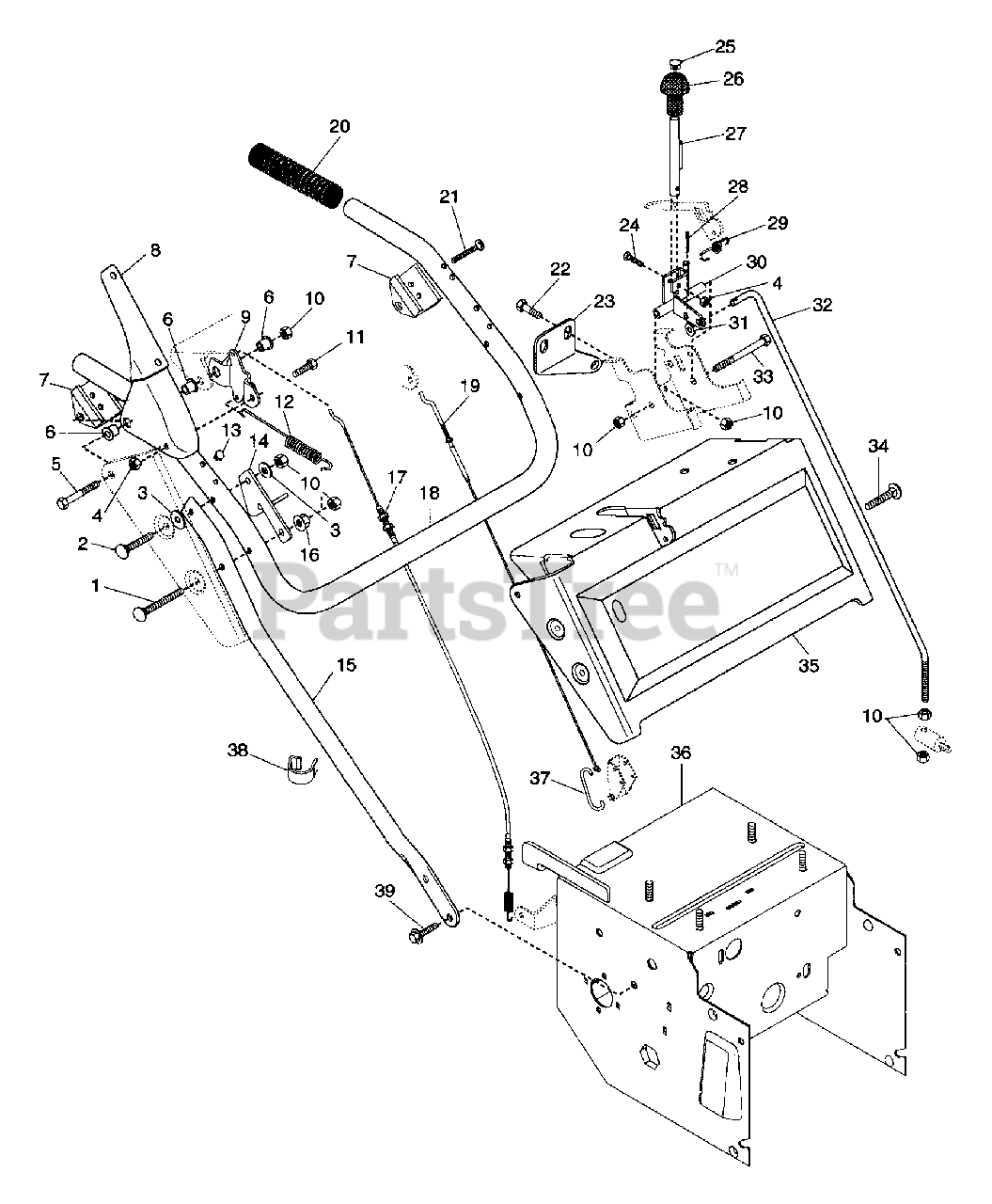

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 06205100

BLT-RDHDSQNK .31-18X2.75 SHPL
(Superseded to 06212300)

$2.99

$

In Stock, only 4 left!

0

2

Ariens 06202300

BLT-RDHDSQNK .31-18X1.50 PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 19

0

3

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

7

Ariens 02464700

HANDLE PIVOT

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 02462100

CLUTCH LEVER - COATED
(Superseded to 02474543)

$51.99

$

In Stock, only 1 left!

0

9

Ariens 03229700

ARM

$

$

Not available

10

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05910400

BLT-HEX .25-20X.38 PL GR2
(Superseded to 05947600)

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 08325500

SG-TENS .051X.50X5.12 WLD 10.4
(Superseded to 08335400)

$15.99

$

In Stock, Qty 11

0

13

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 03227900

UPPER CABLE ANCHOR R H
(Superseded to 03227951)

$

$

Not available

15

Ariens 03228000

L H LOWER HANDLEBAR
(Superseded to 03228051)

$

$

Not available

16

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06919500

CLUTCH CABLE - ATTACHMENT

$

$

Not available

18

Ariens 03227800

UPPER HANDLEBAR
(Superseded to 02462951)

$270.99

$

Usually ships in 4-12 days

0

19

Ariens 06906800

CABLE, ADJUSTABLE

$

$

Not available

20

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 07403900

SCR-TAP 12-14X1.50 CROVH PL BT
(Superseded to 07411800)

$

$

Not available

22

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

23

Ariens 03228500

CHUTE CRANK BRACKET
(Superseded to 03228551)

$

$

Not available

24

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

25

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 16

0

26

Ariens 07509600

KNOB

$

$

Not available

27

Ariens 02444800

ROD
(Superseded to 02444851)

$83.99

$

Usually ships in 4-12 days

0

28

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

29

Ariens 08318400

SG-TENS .055X.33X1.31 WLD 7

$10.99

$

In Stock, only 1 left!

0

30

Ariens 02462600

PIVOT

$

$

Not available

31

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

32

Ariens 03228700

SHIFT ROD

$

$

Not available

33

Ariens 05919200

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$

$

Not available

34

Ariens 06201800

BLT-RDHDSQNK .31-18X1.75 SHTPL
(Superseded to 06213900)

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 03227600

PANEL
(Superseded to 53204800)

$

$

Not available

36

Ariens 03227500

FRAME

Note: (Used Only On Model(s): 026).

$

$

Not available

37

Ariens 03227700

FRAME

Note: (Used Only On Model(s): 027).

$

$

Not available

38

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

39

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$1.49

$

Usually ships in 4-12 days

0
