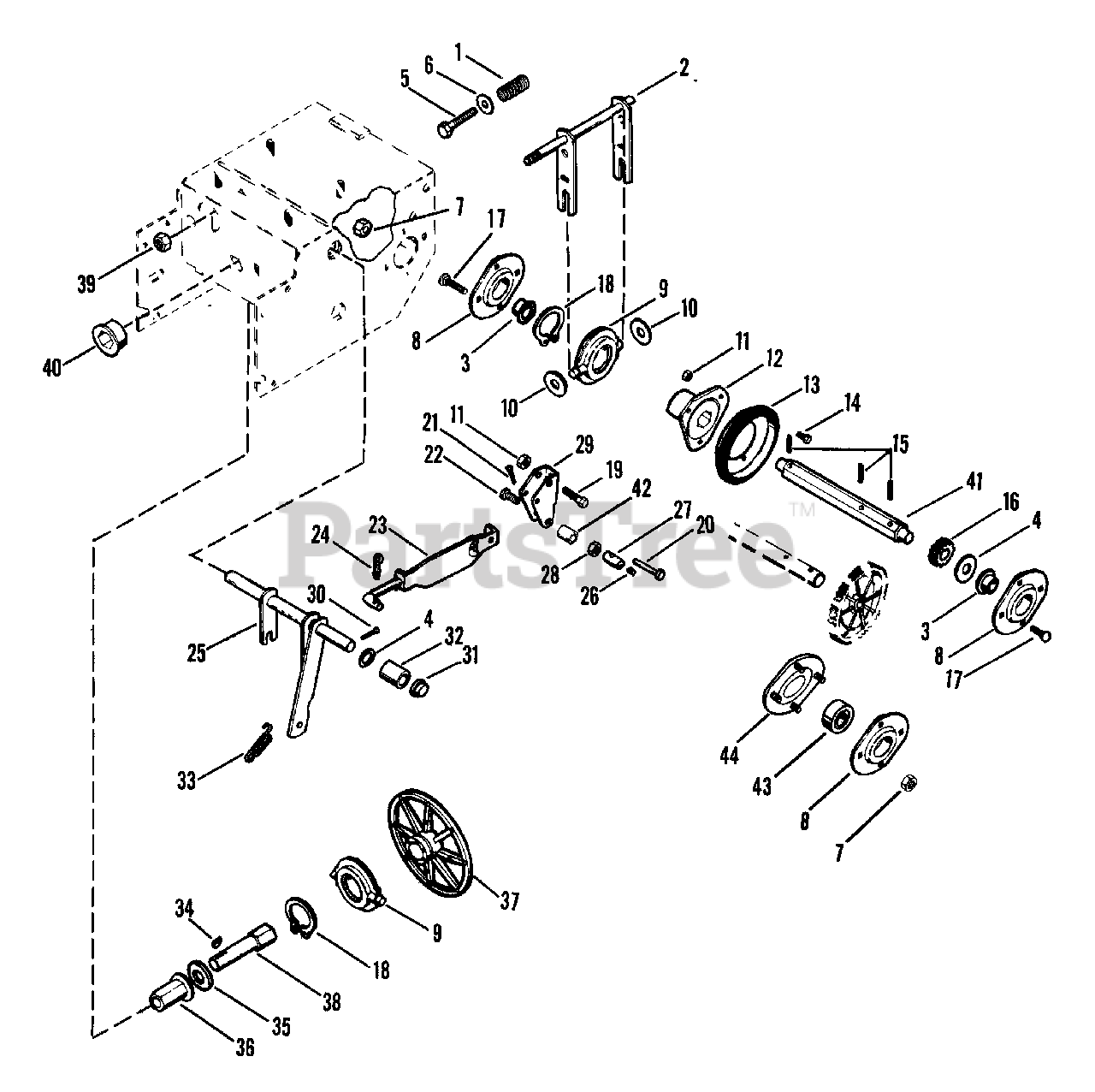

932022 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Friction Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

Friction Drive Parts Diagram

  • Title

1

Ariens 08309000

SG-COMP .105X.585X.75

$39.99

$

Usually ships in 4-12 days

0

2

Ariens 03200200

SHIFTING FORK

Note: (1,4,6,7)

$

$

Not available

2

Ariens 03221000

SHIFT FORK

Note: (19,20,22,23)

$

$

Not available

3

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 20+

0

4

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 12

0

6

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

8

Ariens 03201400

BUSHING FLANGE

Note: (1,4,6,7,19,20,22,23)

$22.99

$

In Stock, only 2 left!

0

8

Ariens 03226900

BEARING FLANGE

Note: (22);932022 SN 009601>

$18.99

$

Usually ships in 4-12 days

0

9

Ariens 03225900

BEARING ASSEMBLY

$82.99

$

In Stock, only 4 left!

0

10

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03207200

FRICTION WHEEL HUB

$

$

Not available

13

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$39.99

$

In Stock, Qty 20+

0

14

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 9

0

16

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

17

Ariens 06204900

BLT-RDHDSQNK 10-24X.38 PL
(Superseded to 06214200)

$0.99

$

In Stock, Qty 10

0

18

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

19

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

20

Ariens 03212300

CLEVIS PIN

$

$

Not available

21

Ariens 06703400

PIN COTR .09X.50 PL
(Superseded to 06707400)

$0.99

$

In Stock, only 1 left!

0

22

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 12

0

23

Ariens 53203200

TRACTION CLUTCH ASSEMBLY

$

$

Not available

24

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03200500

CLUTCH FORK

Note: (1,4,6,7)

$

$

Not available

25

Ariens 03221100

CLUTCH FORK

Note: (19,20,22,23)

$82.99

$

Usually ships in 4-12 days

0

26

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

Note: (1,4,6,7)

$2.99

$

In Stock, Qty 13

0

27

Ariens 02213500

ROD ADAPTER

Note: (1,4,6,7)

$38.99

$

Usually ships in 4-12 days

0

28

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 03201700

BRACKET

Note: (1,4,6,7)

$

$

Not available

29

Ariens 03220600

BRACKET

Note: (19,20,22,23)

$57.99

$

Usually ships in 4-12 days

0

30

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

31

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, only 3 left!

0

33

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

34

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

35

Ariens 06417300

WSHR, THRUST .625X1.125X.063

$9.49

$

In Stock, only 1 left!

0

36

Ariens 05512000

BSHG-FLG .625X.875X1.750X1.188

$18.99

$

In Stock, only 4 left!

0

37

Ariens 03201100

FRICTION PLATE

$75.99

$

In Stock, Qty 5

0

38

Ariens 03200700

HEX SHAFT

$68.99

$

Usually ships in 4-12 days

0

39

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 05512100

BSHG-FLG .875X1.25X.75X1.50HX

$14.99

$

In Stock, Qty 6

0

41

Ariens 03207300

HEX SHAFT

$31.99

$

Usually ships in 4-12 days

0

42

Ariens 03222500

SPACER -SPLIT .340X.490X1.02

Note: (19,20,22,23)

$

$

Not available

43

Ariens 05408000

BRG-BALL .500X1.38X.437

Note: (22);932022 SN 009601>

$5.99

$

In Stock, Qty 15

0

44

Ariens 00308500

BEARING FLANGE

Note: (22);932022 SN 009601>

$22.99

$

Usually ships in 4-12 days

0
