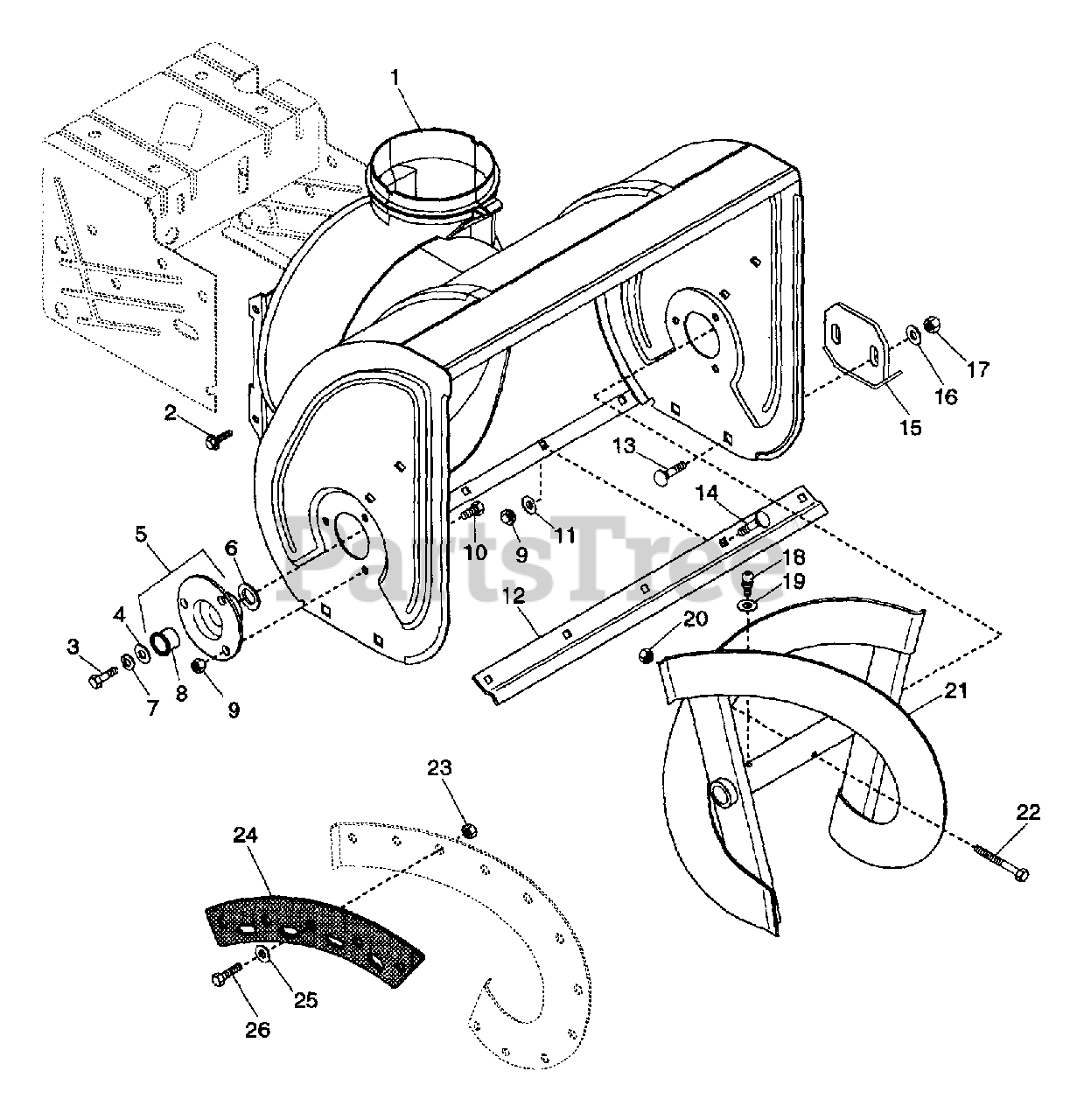

  • Title

1

Ariens 53203600

AUGER/IMPELLER HOUSING 20" ST2

Note: (Used Only On Model(s): 015,016,018,025).

$

$

Not available

1

Ariens 53203700

AUGER/IMPELLER HOUSING 24"
(Superseded to 53209200)

Note: (Used Only On Model(s): 026,027).

$724.99

$

In Stock, only 1 left!

0

2

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

4

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

5

Ariens 53203100

BEARING FLANGE ASSEMBLY

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

9

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

12

Ariens 03208100

SCRAPER BLADE
(Superseded to 03208159)

Note: (Used Only On Model(s): 026,027).

$34.99

$

In Stock, Qty 20+

0

12

Ariens 03705800

SCRAPER BLADE

Note: (Used Only On Model(s): 015,016,018,025).

$25.99

$

In Stock, only 2 left!

0

12

Ariens 03218700

SCRAPPER SUPPORT

Note: (Used Only On Model(s): 015,016,018,025).

$41.99

$

Usually ships in 4-12 days

0

13

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

Note: (Used Only On Model(s): 015,016,018,025).

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

Note: (Used Only On Model(s): 026,027).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02459900

RUNNER
(Superseded to 02483859)

Note: (Used Only On Model(s): 026,027).

$19.99

$

In Stock, Qty 20+

0

16

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

18

Ariens 53201900

RAKE EDGE W/FLIGHTING

Note: (Used Only On Model(s): 015,016, 018).

$

$

Not available

19

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 53201600

RAKE, RIGHT-24"(.75ID X 10.88)
(Superseded to 53207800)

Note: (Used Only On Model(s): 026,027).

$327.99

$

In Stock, only 1 left!

0

21

Ariens 53201700

RAKE, LEFT-24(.75ID X 10.88OD)
(Superseded to 53207900)

Note: (Used Only On Model(s): 026,027).

$

$

Not available

21

Ariens 53204100

RAKE, RIGHT-20(.75ID X 10.5OD)

Note: (Used Only On Model(s): 015,016,018,025).

$

$

Not available

21

Ariens 53204200

RAKE, LEFT-20"(.75ID X 10.5OD)
(Superseded to 53208100)

Note: (Used Only On Model(s): 015,016,018,025).

$

$

Not available

22

Ariens 53200500

SHEAR BOLT WITH NUT

$2.99

$

In Stock, Qty 20+

0

23

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

24

Ariens 53201800

RAKE EDGE W/HARDWARE

Note: (Used Only On Model(s): 015,016,018,025).

$155.99

$

Usually ships in 4-12 days

0

25

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

26

Ariens 06107400

SCR-MCH 10-24X.63 HEX PL
(Superseded to 05944800)

$

$

Not available
