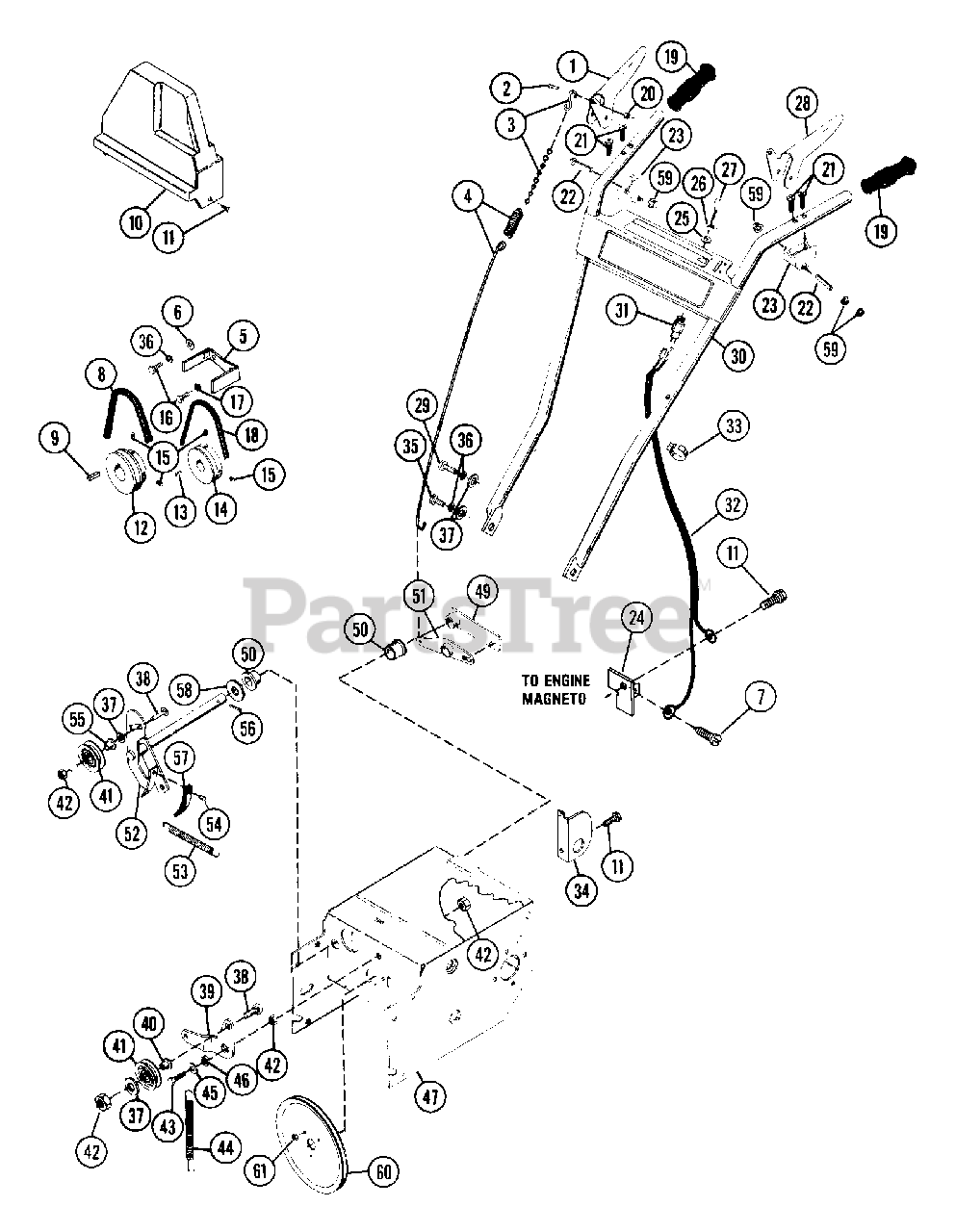

932007 (TT 5) - Ariens Snow Blower, 5hp Tecumseh (SN: 001101 - 001300) Tractor Parts Parts Diagram

Snow Blower, 5hp Tecumseh

Tractor Parts Parts Diagram

  • Title

1

Ariens 53200800

ATTACHMENT CLUTCH HANDLE

$59.99

$

Usually ships in 4-12 days

0

2

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 00204200

CHAIN & CONNECTOR

$6.99

$

In Stock, Qty 6

0

4

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

$

$

Not available

5

Ariens 03209200

BELT FINGER
(Superseded to 03209251)

$32.99

$

Usually ships in 4-12 days

0

6

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

7

Ariens 07403500

SCR-TAP 8-15X.38 CR RH A
(Superseded to 07411700)

$

$

Not available

8

Ariens 07211400

V-BELT, 4L-COGGED

Note: (ATTACHMENT DRIVE)

$29.99

$

In Stock, Qty 5

0

9

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

10

Ariens 03209300

BELT COVER
(Superseded to 53204000)

$75.99

$

Usually ships in 4-12 days

0

11

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 03207700

ENGINE SHEAVE

$

$

Not available

13

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

14

Ariens 03201800

SHEAVE CAMSHAFT

$77.99

$

Usually ships in 4-12 days

0

15

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

16

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07210600

V-BELT, 3L-COGGED

Note: (TRACTION DRIVE)

$35.99

$

In Stock, Qty 20+

0

19

Ariens 07508100

GRIP
(Superseded to 07518600)

$15.99

$

Usually ships in 4-12 days

0

20

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07403900

SCR-TAP 12-14X1.50 CROVH PL BT
(Superseded to 07411800)

$

$

Not available

22

Ariens 02453900

PIN

$12.99

$

Usually ships in 4-12 days

0

23

Ariens 02212900

HANDLE PIVOT

$21.99

$

Usually ships in 4-12 days

0

24

REMOTE STOP TERMINAL BLOCK

$

$

Not available

25

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

27

Ariens 01315700

KEYS
(Superseded to 02460700)

Note: (SET)

$7.99

$

In Stock, Qty 20+

0

28

Ariens 53200700

TRACTION CLUTCH HANDLE WITH DE

$59.99

$

Usually ships in 4-12 days

0

29

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

30

Ariens 03211400

HANDLEBAR
(Superseded to 03214000)

$

$

Not available

31

Ariens 62409700

SWITCH & KEY SET ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

32

Ariens 02216100

SHORTING WIRE

$

$

Not available

33

Ariens 06909900

CONDUIT CLAMP 2 WIRE
(Superseded to 07517300)

$

$

Not available

34

Ariens 03211600

CLUTCH BRACKET GUARD

$

$

Not available

35

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

37

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 19

0

39

Ariens 03206900

IDLER ARM

$25.99

$

Usually ships in 4-12 days

0

40

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

41

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

42

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

44

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 8

0

45

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

46

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

47

Ariens 03207000

FRAME

$

$

Not available

49

Ariens 03201000

LEVER CLUTCH

$77.99

$

Usually ships in 4-12 days

0

50

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

51

Ariens 03211000

LEVER

$

$

Not available

52

Ariens 63200100

BRAKE CLUTCH ASSY
(Superseded to 53203000)

$

$

Not available

53

Ariens 08317100

SG-TENS .062X.55X5.0

$34.99

$

Usually ships in 4-12 days

0

54

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

55

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

56

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 11

0

57

Ariens 02217800

BRAKE LINING

$9.49

$

In Stock, only 1 left!

0

58

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

59

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

60

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

Note: (DRIVE)

$

$

Not available

61

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0
