931303 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Steering Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

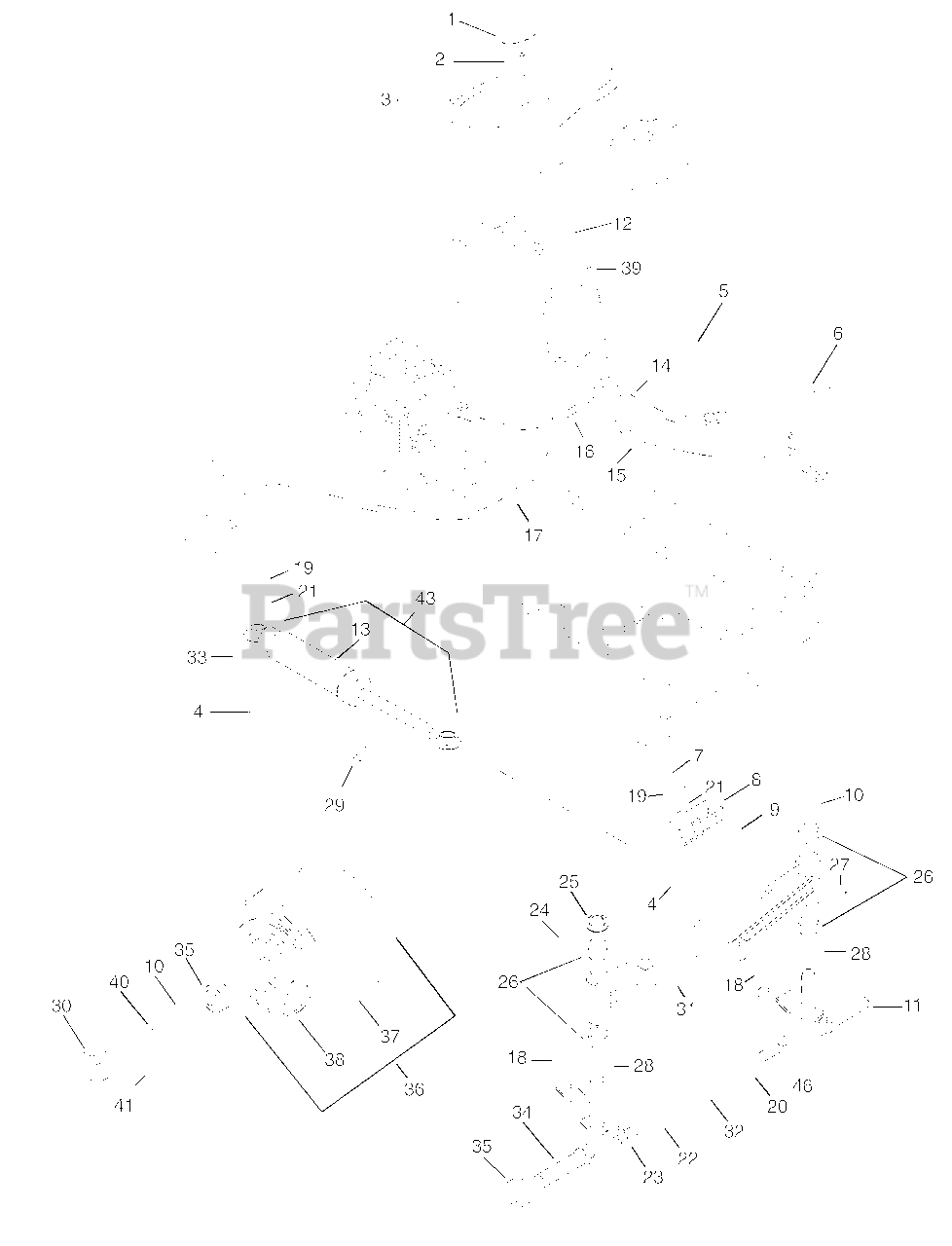

Steering Parts Diagram

  • Title

1

Ariens 03049500

DOME PLUG

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06511700

NUT-LK-JAM .625-18 YWZC
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 03048900

STEERING WHEEL

$197.99

$

In Stock, only 1 left!

0

4

Ariens 05967200

BLT-HEX .62-18X2.00 GR5 YWZC

$

$

Not available

5

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

6

Ariens 04003800

TIE WRAP

$

$

Not available

7

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, only 3 left!

0

8

Ariens 03058400

STEERING ARM

$

$

Not available

9

Ariens 03058500

LOCK BOLT

$

$

Not available

10

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Ariens 03083100

SPINDLE LH

$265.99

$

In Stock, only 1 left!

0

12

Ariens 03090600

STEERING UNIT - HYD.

$

$

Not available

13

Ariens 03094400

CYLINDER, HYD 2 BORE 3.87 STR.

$

$

Not available

14

Ariens 03093500

HYDRAULIC HOSE 31.5

$

$

Not available

15

Ariens 03093400

HYDRAULIC HOSE 35.75

$

$

Not available

16

Ariens 03089800

HOSE - HYDRAULIC 39.75

$109.99

$

Usually ships in 4-12 days

0

17

Ariens 03090100

HOSE - HYDRAULIC 48.00

$

$

Not available

18

Ariens 06530000

NUT-LK-CTR .50-20 YWZC

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06511700

NUT-LK-JAM .625-18 YWZC
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

20

Ariens 06538300

NUT-JAM .50-20 LH GR2 YWZC

$

$

Not available

21

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03112900

BALL JOINT R.H.

$32.99

$

Usually ships in 4-12 days

0

24

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03008800

SPINDLE CAP

$

$

Not available

26

Ariens 05509100

BSHG-SLV 1.000X1.125X.875

$13.99

$

In Stock, only 2 left!

0

27

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

28

Ariens 07506700

PLASTIC WASHER

$

$

Not available

29

Ariens 03106800

ADAPTER 45 9/16 TO 1/4

$

$

Not available

30

Ariens 07508900

FRONT HUB CAP

$18.99

$

Usually ships in 4-12 days

0

31

Ariens 03080300

FRONT AXLE
(Superseded to 53123200)

$

$

Not available

32

Ariens 03116900

TIE ROD

$75.99

$

Usually ships in 4-12 days

0

33

Ariens 03093700

ADAPTER, 90 .25 NPT X .56-18

$

$

Not available

34

Ariens 03083000

SPINDLE RH

$

$

Not available

35

Ariens 05412100

BRG-BALL 1.0X2.0X.55

$

$

Not available

36

Ariens 07115300

T/WHL ASSY

$

$

Not available

37

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

38

Ariens 07111000

WHL

$

$

Not available

39

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available

40

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

41

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

42

Ariens 03113000

BALL JOINT L.H.

$59.99

$

Usually ships in 4-12 days

0

43

Ariens 53110100

CYLINDER ASSEMBLY (SHORT)
(Superseded to 03094400)

Note: (Contains Item 13 and two 03078500 Plugs)

$

$

Not available

44

Ariens 53123200

FRONT AXLE ASSY

Note: (Contains one of Item 31 and two of Item 27)

$

$

Not available

Ariens 03078500

PLUG

$

$

Not available

46

UNKNOWN

$

$

Not available
