931303 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Speed Selector Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

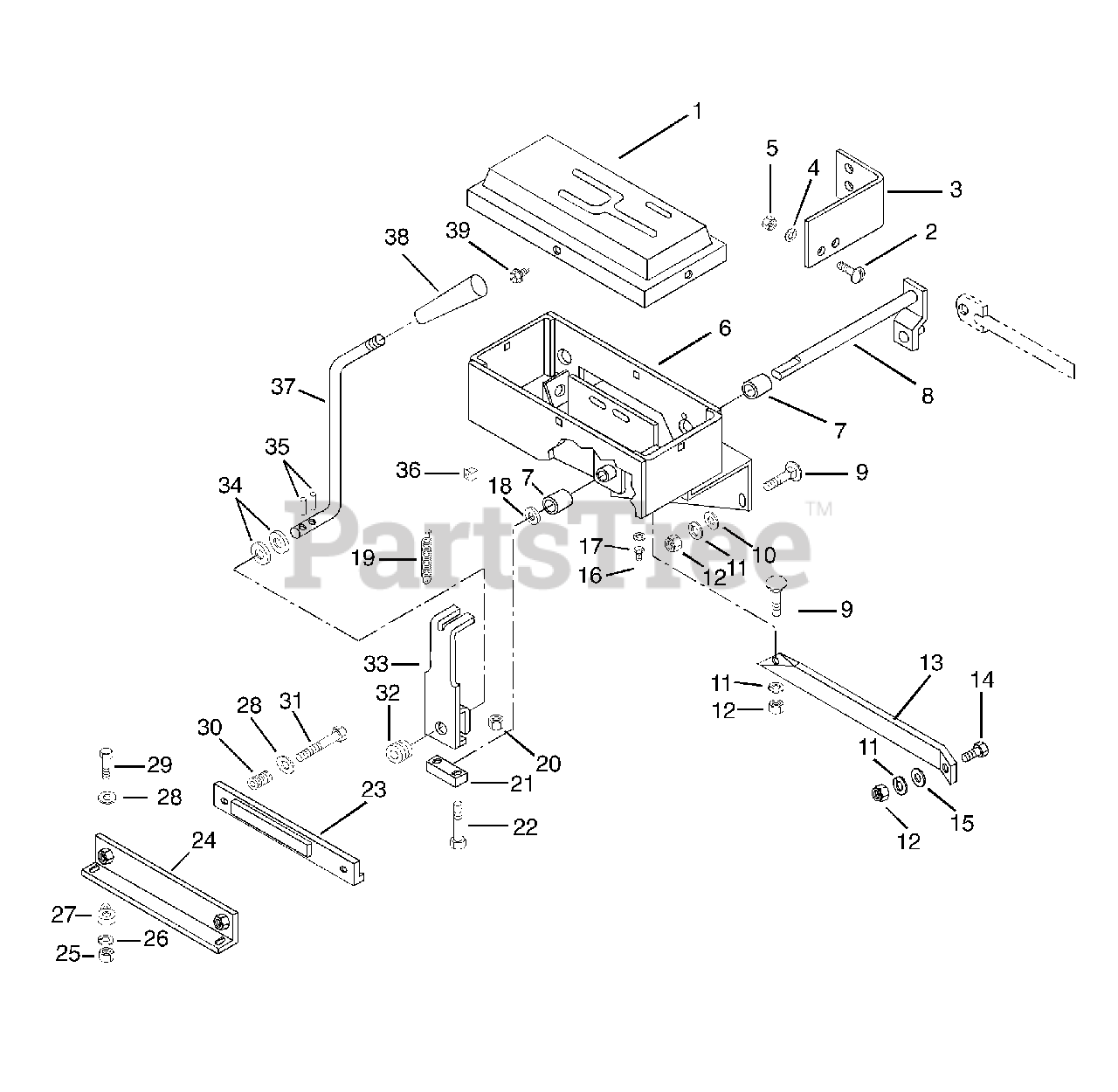

Speed Selector Parts Diagram

  • Title

1

Ariens 53127000

CONTROL CONSOLE WITH COVER

$

$

Not available

2

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 03090400

BRACKET - SWITCH

$

$

Not available

4

Ariens 06308100

@WSHR-LK #10X.047 REG YWZC

$1.49

$

Usually ships in 4-12 days

0

5

Ariens 06536600

@NUT-HEX 10-24 YWZC

$0.99

$

In Stock, Qty 5

0

6

Ariens 03037300

CONTROL BOX

$

$

Not available

7

Ariens 05502400

BSHG-SLV .625X.750X1.000

$

$

Not available

8

Ariens 03039100

SHIFT SHAFT

$

$

Not available

9

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

10

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03102400

BRACE

$

$

Not available

14

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

17

Ariens 06307000

WSHR-LK .250X.047 LT YWZC

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 08326700

SG-TENS .072X.565X1.87

$20.99

$

In Stock, only 1 left!

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 03039400

STRAP

$

$

Not available

22

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

23

Ariens 03156600

L. H. FRICTION BRAKE

$77.99

$

Usually ships in 4-12 days

0

24

Ariens 03039300

R.H. FRICTION BRAKE

$77.99

$

Usually ships in 4-12 days

0

25

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 03039500

SPACER .344X.750X.625X.500

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

30

Ariens 08312500

SG-COMP .093X.59X1.50

$14.99

$

Usually ships in 4-12 days

0

31

Ariens 06117400

SCR-MCH .31-18X2.75 SLRH YWZC

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 03039200

LEVER

$

$

Not available

34

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

35

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

36

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

37

Ariens 03086700

SHIFT ROD

$100.99

$

Usually ships in 4-12 days

0

38

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

39

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days
