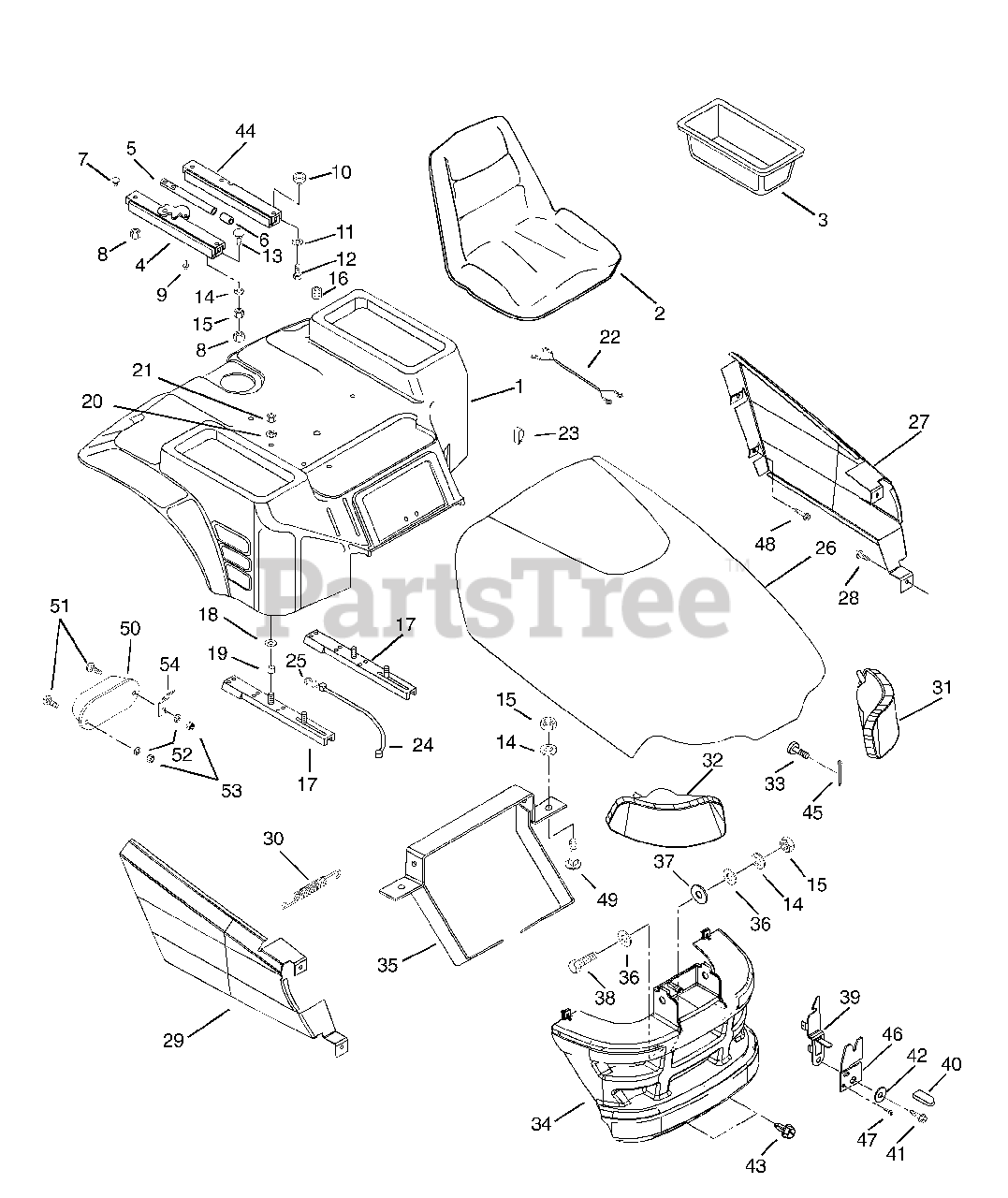

931303 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Hood & Rear Deck Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Hood & Rear Deck Parts Diagram

  • Title
1

Ariens 03074059

REAR DECK

$

$

Not available

2

Ariens 03095400

SEAT V-850
(Superseded to 53407000)

$

$

Not available

$

$

Not available

4

Ariens 03416600

SEAT SLIDE R H

$

$

Not available

5

Ariens 03416500

SEAT SLIDE HANDLE

$

$

Not available

$

$

Not available

7

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

8

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06806500

RVT-POP.187X.562 DOME ST

$

$

Not available

10

Ariens 03418300

SEAT SLIDE SPACER

$4.49

$

Usually ships in 4-12 days

0

11

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 06117700

SCR-MCH .31-18X1.00 CRRH YWZC

$

$

Not available

13

Ariens 07008600

SCR-CAP BTHD.31-18X.875 GR5 PK

$

$

Not available

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

16

Ariens 07504400

GROMMET

$

$

Not available

17

Ariens 03009100

SEAT SUPPORT

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

19

Ariens 03009200

SPACER .380X.503X.281

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03093200

SEAT HARNESS

$

$

Not available

23

Ariens 07510700

WIRE CLIP

$

$

Not available

24

$37.99

$

Usually ships in 4-12 days

0

25

$

$

Not available

26

Ariens 53606500

HOOD WITH DECALS

$

$

Not available

27

Ariens 03655200

SIDE PANEL- LH
(Superseded to 03673451)

$62.99

$

Usually ships in 4-12 days

0

28

Ariens 07412500

SCR-TAP 12-16X.500 HI-LOTPHBL

$

$

Not available

29

Ariens 03655100

SIDE PANEL- RH
(Superseded to 03673351)

$56.99

$

Usually ships in 4-12 days

0

30

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

31

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

32

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

33

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 03097400

GRILLE
(Superseded to 03679200)

$

$

Not available

35

Ariens 03090300

MOUNT - GRILLE

$

$

Not available

36

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

37

Ariens 06435500

WSHR-FL-NYL .390X1.000X.062

$2.49

$

Usually ships in 4-12 days

0

38

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 03655000

HOOD LATCH

$

$

Not available

40

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

41

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

42

Ariens 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$

$

Not available

43

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

44

Ariens 03416700

SEAT SLIDE L H

$

$

Not available

45

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

46

Ariens 03665900

LOCATOR- HOOD

$

$

Not available

47

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

48

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$

$

Not available

49

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

50

Ariens 03063500

TAIL LIGHT ASSEMBLY W/BULLET
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

51

Ariens 06117600

SCR-MCH 10-24X.50 SLRH YWZC

$2.99

$

Usually ships in 4-12 days

0

52

Ariens 06308100

@WSHR-LK #10X.047 REG YWZC

$1.49

$

Usually ships in 4-12 days

0

53

Ariens 06536600

@NUT-HEX 10-24 YWZC

$0.99

$

In Stock, Qty 5

0

54

Ariens 03005000

MALE DISCONNECT ADAPTER

$

$

Not available
