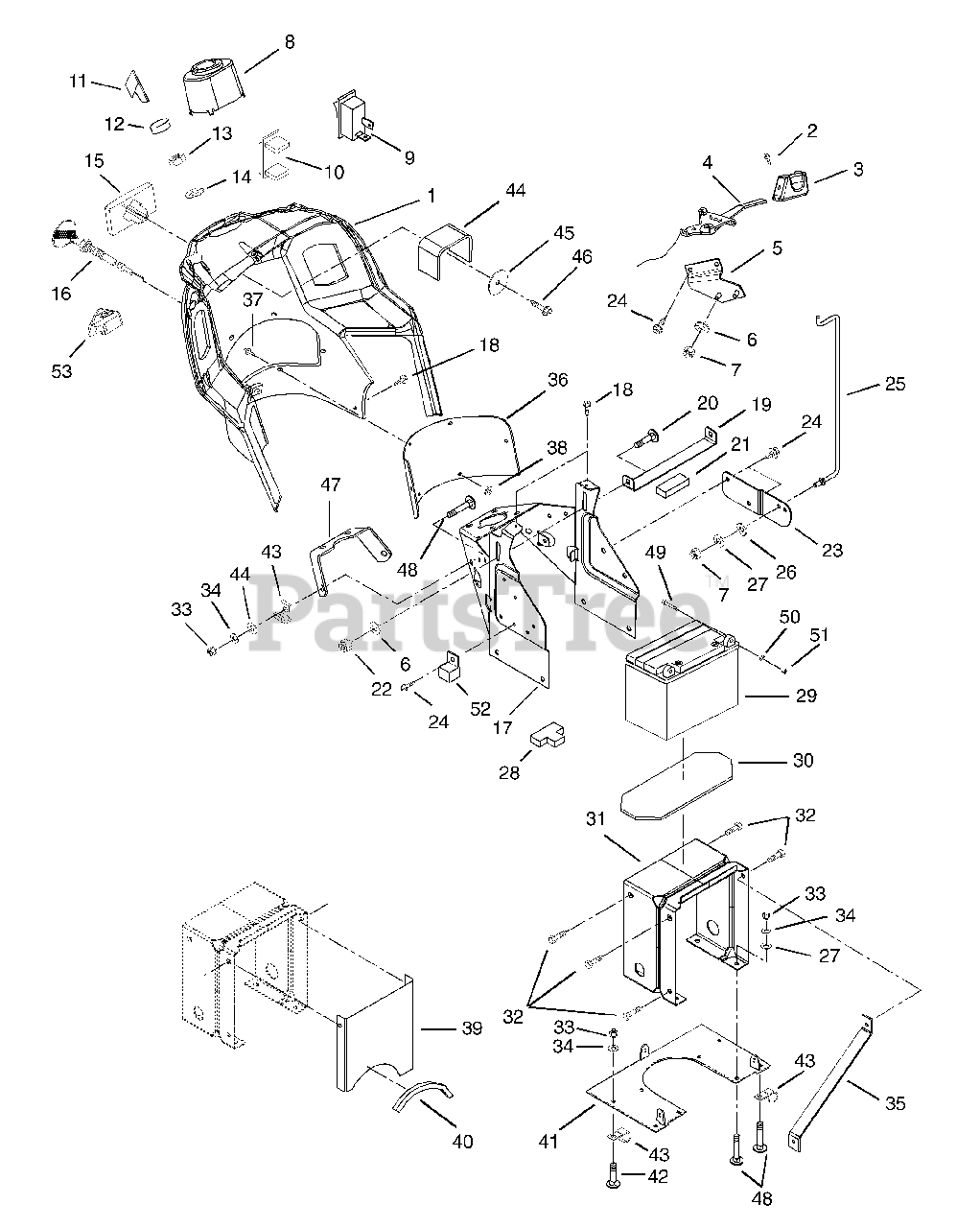

931303 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Dash & Support Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Dash & Support Parts Diagram

  • Title

$840.99

$

Usually ships in 4-12 days

0

2

Ariens 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 03653259

KNOB, THROTTLE

$

$

Not available

4

Ariens 06931300

THROTTLE CONTROL-B&S
(Superseded to 06940700)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 03358200

BRACE-THROTTLE CONTROL

$

$

Not available

6

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

7

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 03091200

STEERING CONE

$

$

Not available

9

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

10

Ariens 03657000

COVER - SWITCH
(Superseded to 00539300)

$9.99

$

Usually ships in 4-12 days

0

11

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

12

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

14

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 03092200

KNOB - FILLER

$

$

Not available

16

Ariens 06918300

CHOKE CABLE

$

$

Not available

17

Ariens 03357600

SUPPORT - DASH - TOP

$

$

Not available

18

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 03651400

HOLDDOWN - BATTERY

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

22

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03656700

MOUNT - PROP ROD

$

$

Not available

24

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03656600

ROD - HOOD PROP

$

$

Not available

26

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

27

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

29

Ariens 03055700

BATTERY
(Superseded to 53123300)

$

$

Not available

30

Ariens 02530700

RUBBER PAD

$

$

Not available

31

Ariens 03651200

SUPPORT DASH BASE

$

$

Not available

32

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

33

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

34

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

35

$

$

Not available

36

Ariens 03091500

SCREEN - DASH

$14.99

$

Usually ships in 4-12 days

0

37

Ariens 07031200

RETAINER, RADIATOR SHROUD

$5.99

$

Usually ships in 4-12 days

0

38

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

39

Ariens 03092900

SHIELD, AIR

$

$

Not available

40

Ariens 00928700

TAPE-ADHESIVE BACKED FOAM

$

$

Not available

41

Ariens 03093600

SUPPORT, DASH BASE (G.S. ONLY)

$13.99

$

Usually ships in 4-12 days

0

42

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

43

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

44

Ariens 03092300

SPACER-CHANNEL

$

$

Not available

45

Ariens 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$

$

Not available

46

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

47

$5.99

$

Usually ships in 4-12 days

0

48

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

51

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

52

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

53

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0
