931302 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000126 & Above) Speed Selector Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

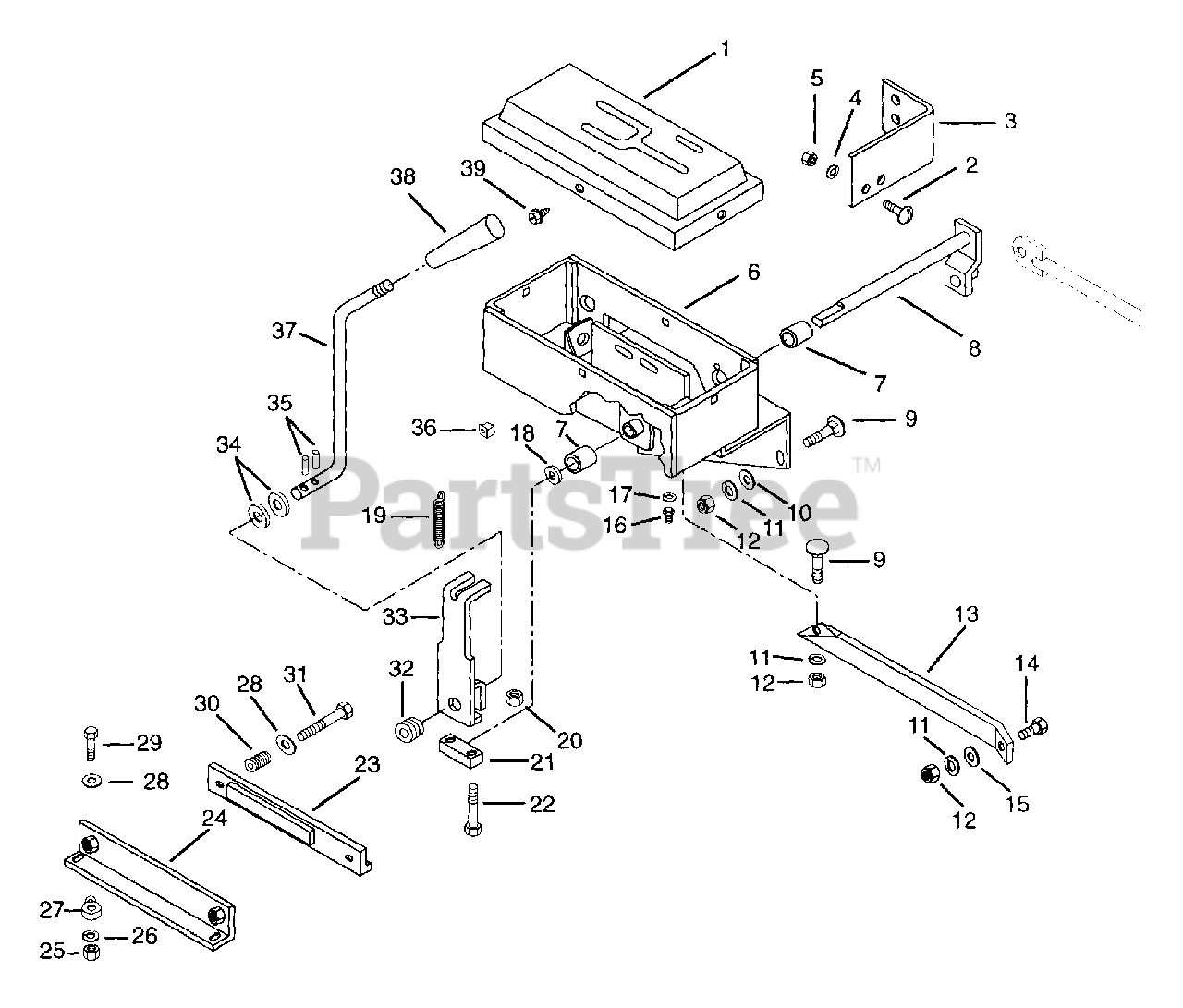

Speed Selector Parts Diagram

  • Title

1

Ariens 03086500

CONTROL CONSOLE COVER W/DECAL
(Superseded to 53127000)

$

$

Not available

2

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 03090400

BRACKET - SWITCH

$

$

Not available

4

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

5

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

6

Ariens 03037300

CONTROL BOX

$

$

Not available

7

Ariens 05502400

BSHG-SLV .625X.750X1.000

$

$

Not available

8

Ariens 03039100

SHIFT SHAFT

$

$

Not available

9

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03102400

BRACE

$

$

Not available

14

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

17

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 08326700

SG-TENS .072X.565X1.87

$20.99

$

In Stock, only 1 left!

0

20

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 03039200

LEVER

$

$

Not available

22

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

23

Ariens 03156600

L. H. FRICTION BRAKE

$77.99

$

Usually ships in 4-12 days

0

24

Ariens 03039300

R.H. FRICTION BRAKE

$77.99

$

Usually ships in 4-12 days

0

25

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

26

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 03039500

SPACER .344X.750X.625X.500

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

29

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

30

Ariens 08312500

SG-COMP .093X.59X1.50

$14.99

$

Usually ships in 4-12 days

0

31

Ariens 06106400

SCR-MCH .31-18X2.75 SLRH PL
(Superseded to 06117400)

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 03039200

LEVER

$

$

Not available

34

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 1 left!

0

35

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

36

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

37

Ariens 03086700

SHIFT ROD

$100.99

$

Usually ships in 4-12 days

0

38

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

39

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available
