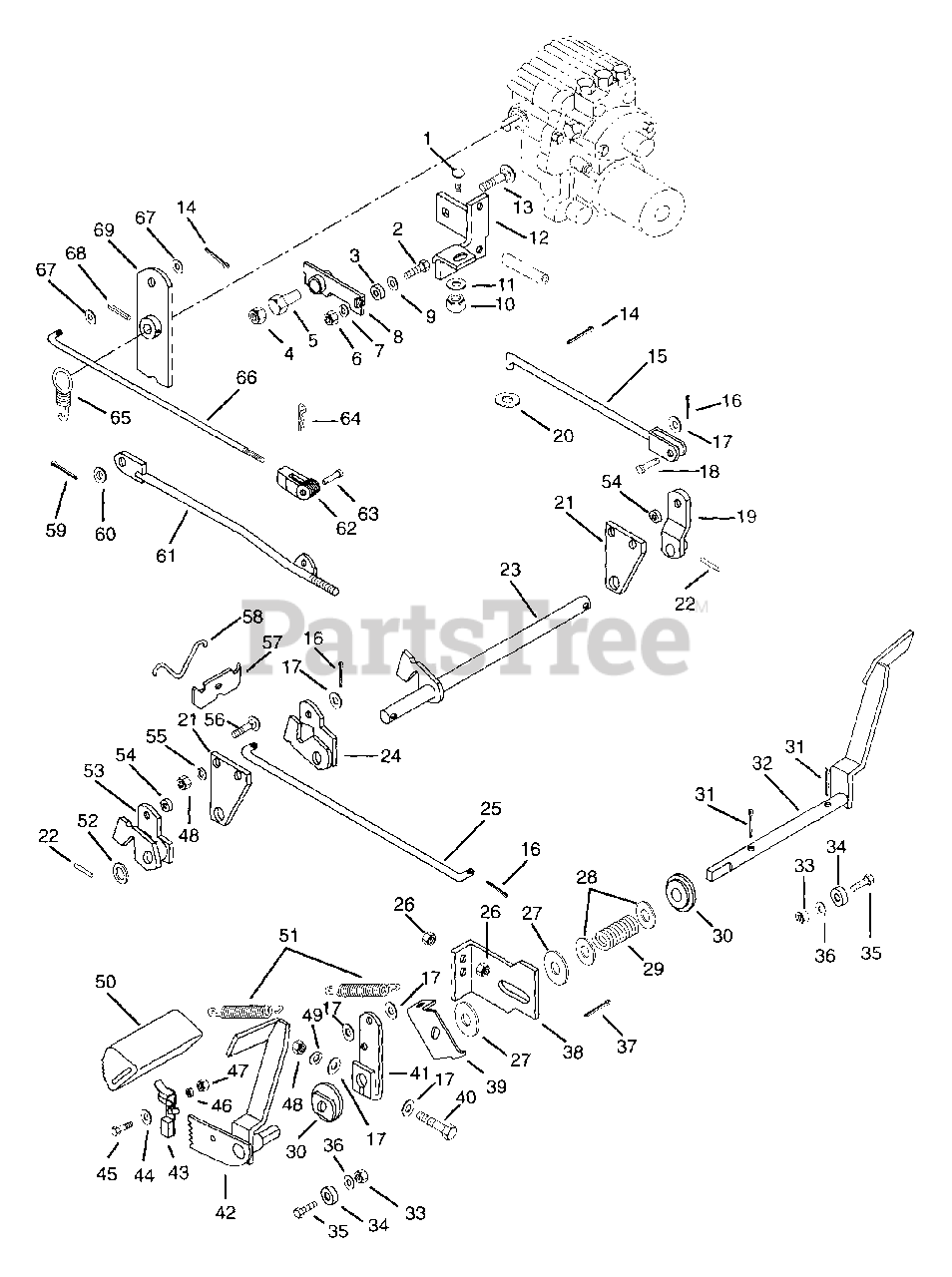

931302 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000126 & Above) Neutralizer And Brake Linkage Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Neutralizer And Brake Linkage Parts Diagram

  • Title

1

Ariens 06204700

BLT-RDHDSQNK .50-13X1.25GR5PL
(Superseded to 06224700)

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

3

Ariens 05418000

BRG BALL DBL .250X.638X.438

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03039700

ECCENTRIC

$

$

Not available

6

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 03039800

DETENT ARM

$

$

Not available

9

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

10

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

11

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03039600

MOUNT WELDMENT

$

$

Not available

13

Ariens 06208200

BLT-RDHDSQNK.31-18X2.25 PL

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

15

Ariens 03193500

BRAKE ROD

$66.99

$

In Stock, only 1 left!

0

16

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

17

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 01330300

PIN-CLEV .373X1.12 YWZC

$

$

Not available

19

Ariens 03193800

BRAKE ARM

$

$

Not available

20

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

21

Ariens 03150900

PLATE

$

$

Not available

22

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

23

Ariens 03194100

BRAKE SHAFT

$

$

Not available

24

Ariens 03194000

ARM

$

$

Not available

25

Ariens 03150800

BRAKE ROD
(Superseded to 03096500)

$20.99

$

Usually ships in 4-12 days

0

26

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 1 left!

0

27

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

$4.99

$

Usually ships in 4-12 days

0

28

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

29

Ariens 08305500

SG-COMP .148X1.23X2.53 WLD87

$

$

Not available

30

Ariens 05509500

BSHG-FLG .750X1.750X.875X2.125

$3.49

$

Usually ships in 4-12 days

0

31

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

32

Ariens 03087500

L H LEVER

$

$

Not available

33

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 02513500

SPACER .344X1.000X.375

$

$

Not available

35

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

38

Ariens 03150200

NEUTRALIZER PLATE

$

$

Not available

39

Ariens 03150300

NEUTRALIZER ARM

$

$

Not available

40

Ariens 05903000

BLT-HEX .38-16X2.25 GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

41

Ariens 03150500

ARM-BRAKE

$5.99

$

Usually ships in 4-12 days

0

42

Ariens 03087400

R H LEVER

$

$

Not available

43

Ariens 03087000

BRAKE LATCH

$

$

Not available

44

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 01109100

SPACER BUSHING .37 X .26 X .14

$

$

Not available

47

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 07512100

PEDAL COVER

$

$

Not available

51

Ariens 08312200

SG-TENS .090X.75X3.50 WLD 34

$34.99

$

In Stock, only 1 left!

0

52

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 03193900

BRAKE ARM

$6.99

$

Usually ships in 4-12 days

0

54

Ariens 07505500

GROMMET

$3.49

$

Usually ships in 4-12 days

0

55

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

56

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 03193600

BALANCE LINK

$5.99

$

Usually ships in 4-12 days

0

58

Ariens 03193700

CLIP

$

$

Not available

59

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

60

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

61

Ariens 03040000

NEUTRALIZER ROD

$

$

Not available

62

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

63

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

64

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 08319600

SG-TENS .080X.75X2.81 WLD 20

$45.99

$

Usually ships in 4-12 days

0

66

Ariens 03040100

SHIFT ROD

$116.99

$

Usually ships in 4-12 days

0

67

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

68

Ariens 05803800

PIN-ROLL .250X1.38

$2.49

$

Usually ships in 4-12 days

0

69

Ariens 03039900

SHIFT ARM

$129.99

$

Usually ships in 4-12 days

0
