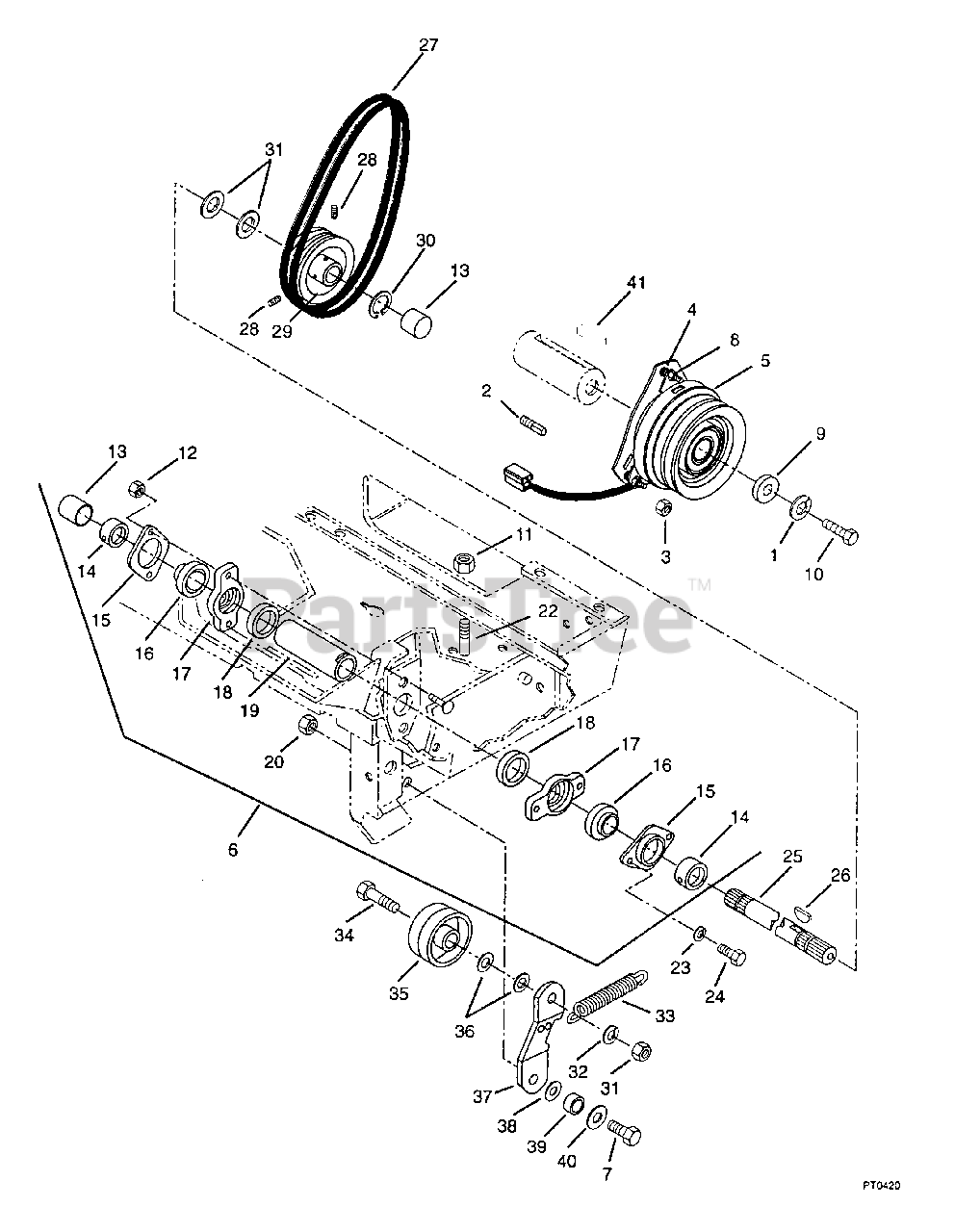

931302 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 - 000125) Front Power Take Off (PTO) Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Front Power Take Off (PTO) Parts Diagram

  • Title

1

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

2

Ariens 03092500

STUD - CLUTCH

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 08314800

SG-COMP WARNER ELEC.

$

$

Not available

5

Ariens 03090800

CLUTCH-ELEC. WARNER I-5215-62B

$426.99

$

Usually ships in 4-12 days

0

6

Ariens 53123800

FRONT PTO KIT

$

$

Not available

7

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

8

Ariens 06511600

NUT-LK WARNER

$

$

Not available

9

Ariens 06419800

WSHR-FL-STL .515X1.625X.250

$

$

Not available

10

Ariens 05920500

BLT-HEX .44-20X1.50 PL GR5
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

11

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07506000

SHAFT COVER

$4.49

$

In Stock, only 2 left!

0

14

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

15

Ariens 03008200

FLANGE

$17.99

$

In Stock, only 2 left!

0

16

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

17

Ariens 03080400

BRG FLANGE

$110.99

$

Usually ships in 4-12 days

0

18

Ariens 05514700

BSHG-SLV 1.500X1.750X.560

$14.99

$

In Stock, only 2 left!

0

19

Ariens 03087800

PTO TUBE

$54.99

$

In Stock, only 1 left!

0

20

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

22

Ariens 03080900

LOCK STUD

$28.99

$

Usually ships in 4-12 days

0

23

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

25

Ariens 03040500

FRONT PTO SHAFT

$224.99

$

Usually ships in 4-12 days

0

26

Ariens 06604500

KEY-FTHR .25X1.25X.25 SAE

$5.99

$

In Stock, Qty 7

0

27

Ariens 07211100

V-BELT, 4L-WRAPPED (SET)

$40.99

$

In Stock, Qty 7

0

28

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

29

Ariens 03040400

SHEAVE

$

$

Not available

30

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

31

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 03087900

SPRING ASSEMBLY
(Superseded to 53126900)

$134.99

$

Usually ships in 4-12 days

0

34

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

35

Ariens 07308800

IDLER-FLAT 3.25 X .38 NWHAMSHR

$39.99

$

In Stock, Qty 8

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03063100

IDLER ARM

$129.99

$

Usually ships in 4-12 days

0

38

Ariens 03115800

SHIM SPACER

$9.99

$

In Stock, only 1 left!

0

39

Ariens 03115700

SPACER .512X.747X.208

$26.99

$

In Stock, only 1 left!

0

40

Ariens 06416900

WSHR-FL-STL .518X2.000X.105
(Superseded to 06441800)

$3.99

$

Usually ships in 4-12 days

0

41

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 3 left!

0
