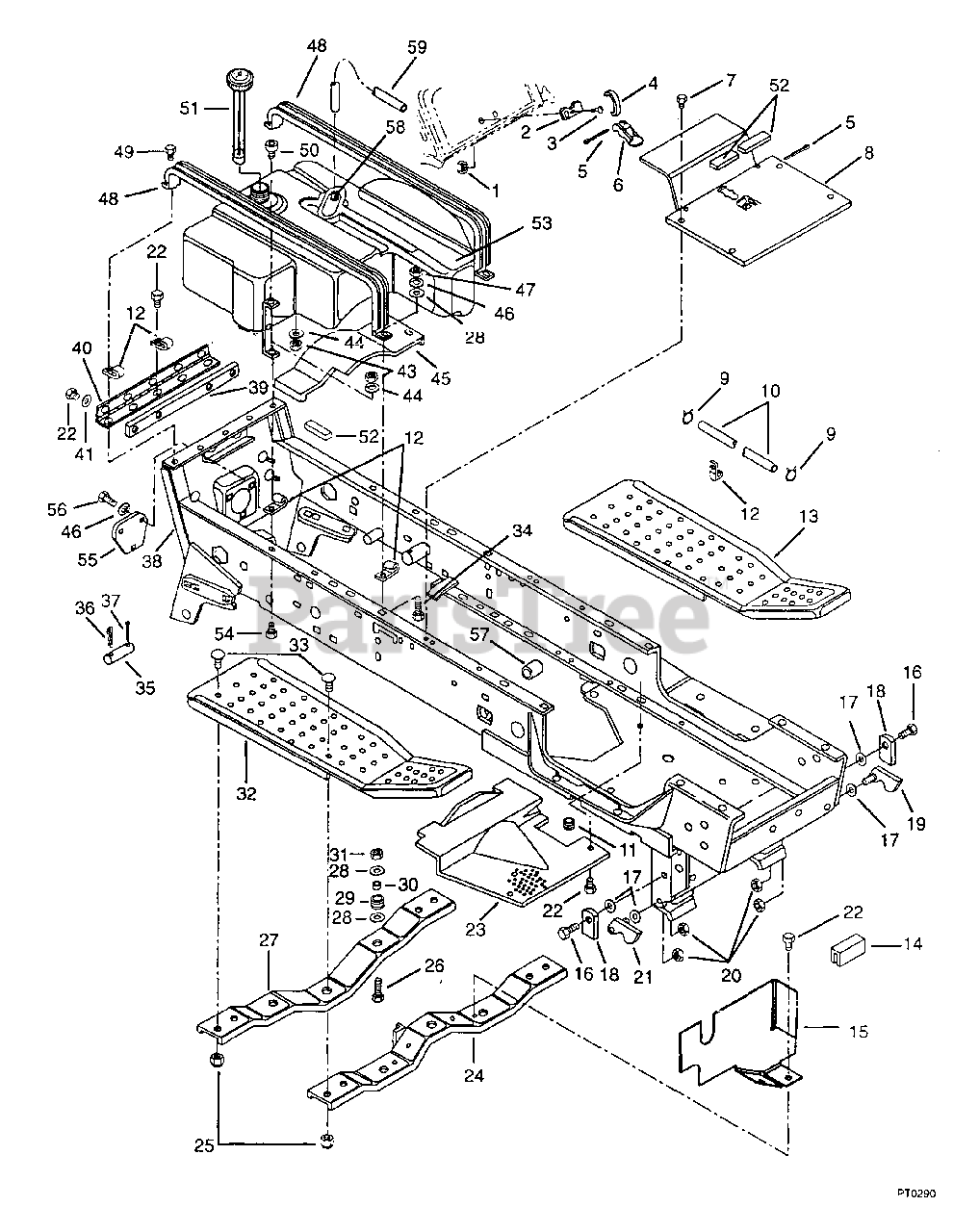

931302 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 - 000125) Frame & Fuel Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Frame & Fuel Parts Diagram

  • Title

1

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

2

Ariens 03030700

CATCH

$

$

Not available

3

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 03030900

SPRING - DECK LATCH

$

$

Not available

5

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03030800

LEVER - DECK LATCH

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 03090900

PLATE - FLOOR

$

$

Not available

9

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

10

Ariens 03072500

FUEL LINE 1/4 X 67"

$

$

Not available

11

Ariens 07528400

HOLE PLUG 1.375

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

13

Ariens 03012500

L.H. RUNNING BOARD

$

$

Not available

14

Ariens 03093100

TRIM

$

$

Not available

15

Ariens 03092800

SCREEN

$9.49

$

Usually ships in 4-12 days

0

16

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 02901300

LOCK STOP

$

$

Not available

19

Ariens 03055500

LATCH LH

$62.99

$

Usually ships in 4-12 days

0

20

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 03055400

LATCH RH

$

$

Not available

22

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03075000

SCREEN

$

$

Not available

24

Ariens 03012800

FRONT CHANNEL

$

$

Not available

25

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

27

Ariens 03012700

REAR CHANNEL

$11.99

$

Usually ships in 4-12 days

0

28

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 03101900

SPACER .318X.430X.375

$

$

Not available

31

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03012600

R.H. RUNNING BOARD

$34.99

$

Usually ships in 4-12 days

0

33

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

34

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

35

Ariens 03101200

PIN

$23.99

$

Usually ships in 4-12 days

0

36

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

37

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

38

Ariens 03090500

MAIN FRAME

$

$

Not available

39

Ariens 03457400

STRAP

$5.99

$

Usually ships in 4-12 days

0

40

Ariens 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

41

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 03105500

SUPPORT

$

$

Not available

43

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

44

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

45

Ariens 03016100

GUARD

$

$

Not available

46

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

48

Ariens 03151700

CHANNEL

$

$

Not available

49

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

50

Ariens 05938200

SCR-SKH .25-20X.75 TSPH PL
(Superseded to 05967300)

$

$

Not available

51

Ariens 03181900

GAS GAUGE & CAP

$35.99

$

In Stock, Qty 5

0

52

Ariens 03076600

FOAM TAPE

$

$

Not available

53

Ariens 03064400

GAS TANK ASSEMBLY

$

$

Not available

54

Ariens 06201200

BLT-RDHDSQNK .25-20X.75
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 03103100

COVER

$

$

Not available

56

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 1 left!

0

58

Ariens 03018700

FITTING - GAS TANK

$

$

Not available

59

Ariens 03026900

GAS TANK FUEL LINE

$

$

Not available
