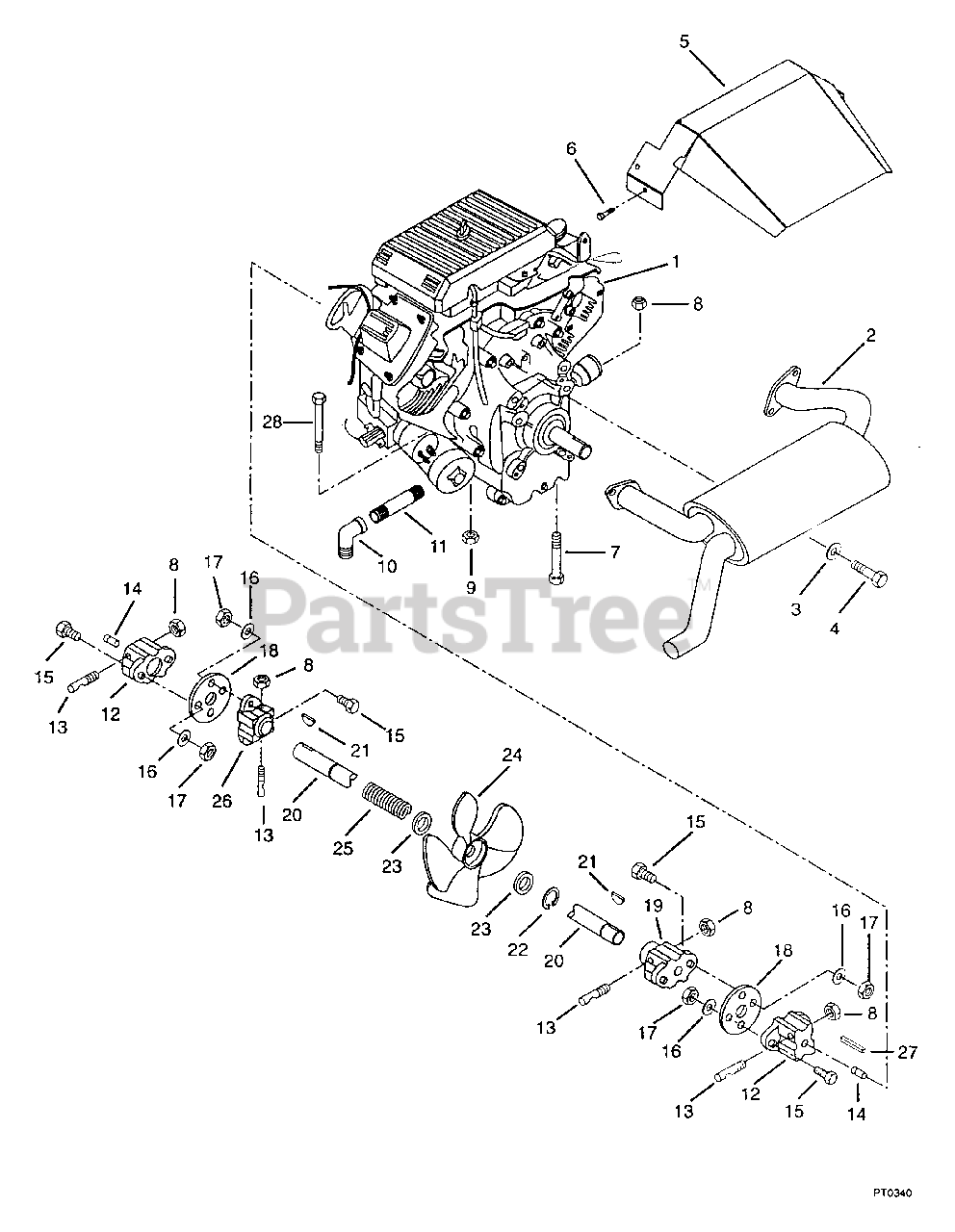

931302 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 - 000125) Engine And Drive Shaft Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Engine And Drive Shaft Parts Diagram

  • Title
1

Ariens 08245300

KOHLER 22HP COMMAND OHV TWIN

$

$

Not available

2

Ariens 03091100

MUFFLER - NELSON

$

$

Not available

3

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

5

Ariens 03091700

SHIELD, HEAT

$

$

Not available

6

Ariens 05943900

BLT-HEX M6 X 1.0X12 LG
(Superseded to 05969800)

$1.99

$

In Stock, Qty 14

0

7

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

11

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 03089100

DRIVE HUB

$168.99

$

Usually ships in 4-12 days

0

13

Ariens 03013900

LOCK STUD

$

$

Not available

14

Ariens 05806600

PIN-GRV .313X.75 TP D

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

16

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03014000

SPACER COUPLING

$

$

Not available

19

Ariens 03082300

DRIVE HUB- TWIN SHAFT

$

$

Not available

20

Ariens 03092700

SHAFT, DRIVE

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

22

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

23

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

$36.99

$

In Stock, only 4 left!

0

25

Ariens 08321400

SG-COMP .120X.75X2.50 WLD48

$

$

Not available

26

Ariens 03014900

DRIVE HUB

$

$

Not available

27

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 11

0

28

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0
