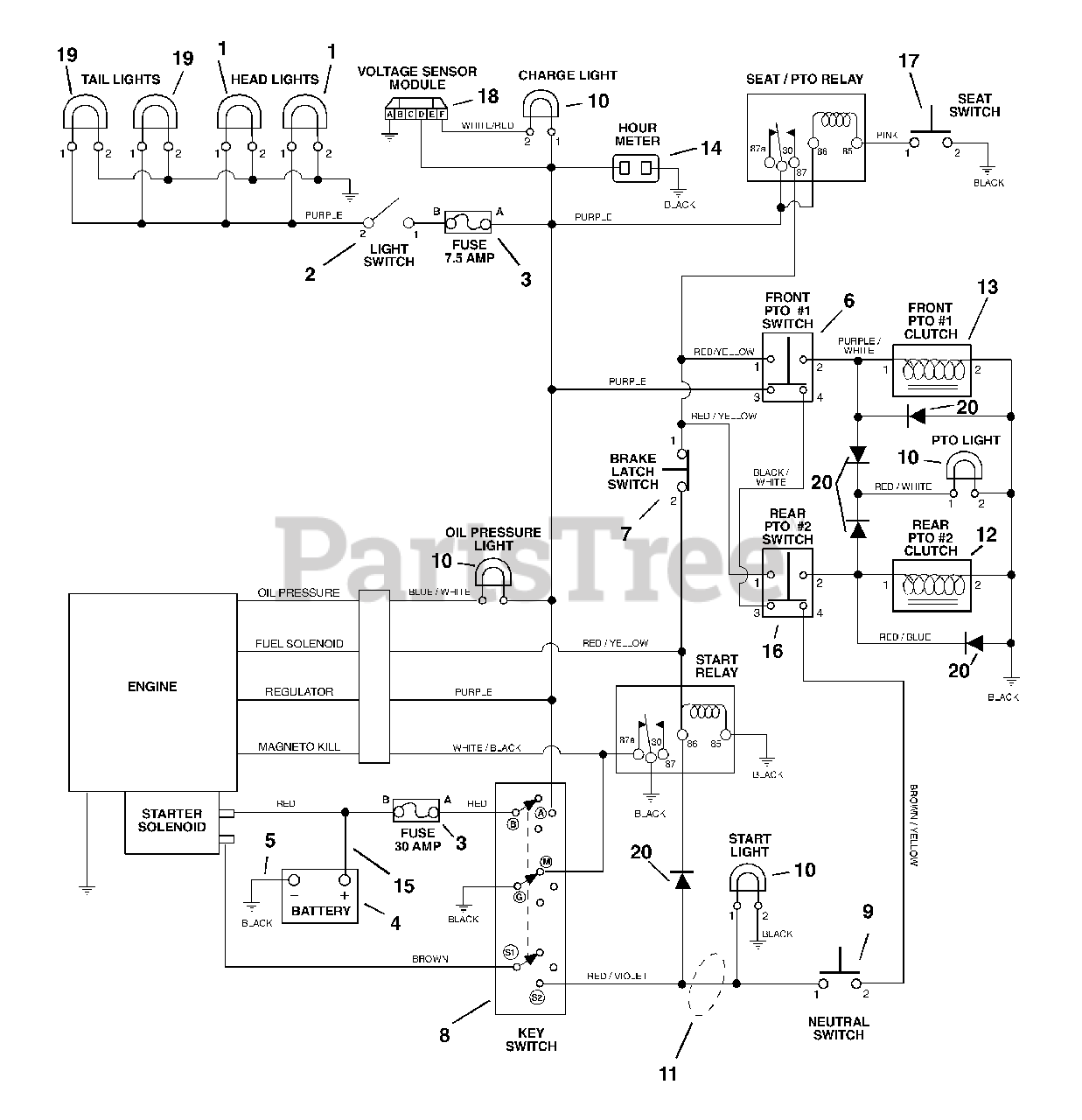

931038 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Wiring Diagram Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Wiring Diagram Parts Diagram

  • Title

1

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

1

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

2

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

3

7.5 AMP Fuse

$

$

Not available

3

30 AMP Fuse

$

$

Not available

4

Ariens 03055700

BATTERY
(Superseded to 53123300)

$

$

Not available

5

Ariens 08840400

CBL,NEGATIVE BATTERY 20.00

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

7

Ariens 03095700

SWITCH, INTERLOCK NC

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 1 left!

0

9

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 1 left!

0

10

#194 Bulb

$

$

Not available

11

Ariens 03096700

HARNESS, WIRING

$

$

Not available

12

Ariens 03199000

ELECTRIC CLUTCH

$

$

Not available

13

Ariens 03090800

CLUTCH-ELEC. WARNER I-5215-62B

$426.99

$

Usually ships in 4-12 days

0

14

Ariens 03492700

HOUR METER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

15

Ariens 08987000

CBL,BATTERY TO SOLENOID

$51.99

$

In Stock, only 1 left!

0

16

Ariens 03115000

CLUTCH SWITCH
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

17

Ariens 03654200

SWITCH- SEAT

$

$

Not available

18

Ariens 03653300

MODULE - VOLTAGE SENSOR

$62.99

$

Usually ships in 4-12 days

0

19

Ariens 03063500

TAIL LIGHT ASSEMBLY W/BULLET
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

20

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

In Stock, only 1 left!

0
