931038 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Neutralizer And Brake Linkage Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

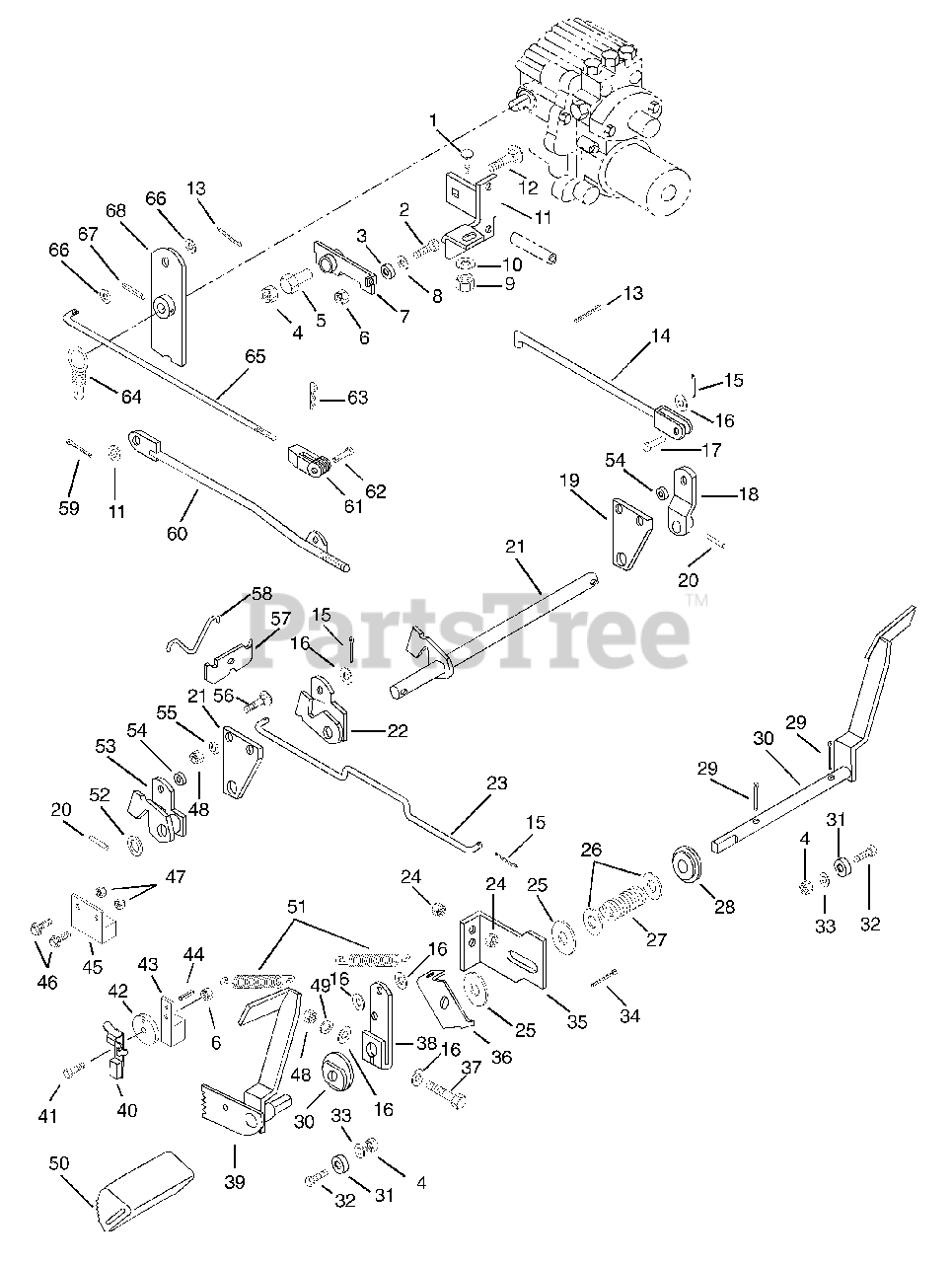

Neutralizer And Brake Linkage Parts Diagram

  • Title

1

Ariens 06220900

BLT-RDHDSQNK .50-13X1.25 G2YW
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

3

Ariens 05418000

BRG BALL DBL .250X.638X.438

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03039700

ECCENTRIC

$

$

Not available

6

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03039800

DETENT ARM

$

$

Not available

8

Ariens 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$

$

Not available

9

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, only 3 left!

0

10

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03039600

MOUNT WELDMENT

$

$

Not available

12

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

14

Ariens 03193500

BRAKE ROD

$66.99

$

In Stock, only 1 left!

0

15

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

16

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 01330300

PIN-CLEV .373X1.12 YWZC

$

$

Not available

18

Ariens 03193800

BRAKE ARM

$

$

Not available

19

Ariens 03150900

PLATE

$

$

Not available

20

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

21

Ariens 03194100

BRAKE SHAFT

$

$

Not available

22

Ariens 03194000

ARM

$

$

Not available

23

Ariens 03096500

BRAKE ROD

$20.99

$

Usually ships in 4-12 days

0

24

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

25

Ariens 06444800

WSHR-FL-STL .755X2.000X.125 YZ

$4.99

$

Usually ships in 4-12 days

0

26

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

27

Ariens 08305500

SG-COMP .148X1.23X2.53 WLD87

$

$

Not available

28

Ariens 05509500

BSHG-FLG .750X1.750X.875X2.125

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

30

Ariens 03087500

L H LEVER

$

$

Not available

31

Ariens 02513500

SPACER .344X1.000X.375

$

$

Not available

32

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

33

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

35

Ariens 03150200

NEUTRALIZER PLATE

$

$

Not available

36

Ariens 03150300

NEUTRALIZER ARM

$

$

Not available

37

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

38

Ariens 03150500

ARM-BRAKE

$5.99

$

Usually ships in 4-12 days

0

39

Ariens 03087400

R H LEVER

$

$

Not available

40

Ariens 03096300

BRAKE LOCK

$5.99

$

Usually ships in 4-12 days

0

41

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 03096600

PIVOT

$5.99

$

Usually ships in 4-12 days

0

43

Ariens 03096400

ACTUATOR,SWITCH

$

$

Not available

44

Ariens 05803500

PIN-ROLL .125X.50

$0.99

$

In Stock, Qty 10

0

45

Ariens 03095700

SWITCH, INTERLOCK NC

$9.49

$

Usually ships in 4-12 days

0

46

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

47

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 8

0

48

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 07512100

PEDAL COVER

$

$

Not available

51

Ariens 08312200

SG-TENS .090X.75X3.50 WLD 34

$34.99

$

In Stock, only 1 left!

0

52

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 03193900

BRAKE ARM

$6.99

$

Usually ships in 4-12 days

0

54

Ariens 07505500

GROMMET

$3.49

$

Usually ships in 4-12 days

0

55

Ariens 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

56

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

57

Ariens 03193600

BALANCE LINK

$5.99

$

Usually ships in 4-12 days

0

58

Ariens 03193700

CLIP

$

$

Not available

59

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

60

Ariens 03040000

NEUTRALIZER ROD

$

$

Not available

61

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

Usually ships in 4-12 days

0

62

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

63

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

64

Ariens 08319600

SG-TENS .080X.75X2.81 WLD 20

$45.99

$

Usually ships in 4-12 days

0

65

Ariens 03040100

SHIFT ROD

$116.99

$

Usually ships in 4-12 days

0

66

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

67

Ariens 05803800

PIN-ROLL .250X1.38

$2.49

$

Usually ships in 4-12 days

0

68

Ariens 03039900

SHIFT ARM

$129.99

$

Usually ships in 4-12 days

0
